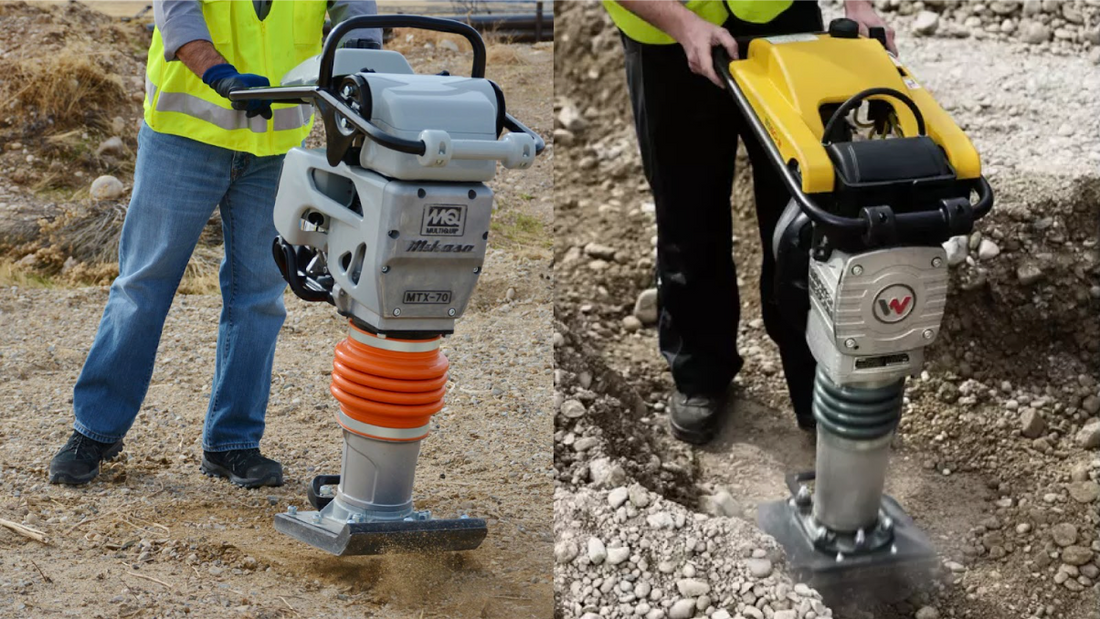

Replacing Jumping Jack rammer bellows with proper tools and technique to avoid common mistakes

Jumping Jack Rammer Bellows Replacement: Pro Tips to Avoid Costly Mistakes

Jumping Jack Rammer Bellows Replacement: Pro Tips to Avoid Costly Mistakes

Here’s a question many contractors overlook: when was the last time you checked the bellows on your jumping jack rammer? According to the Multiquip service manual, they should be inspected every 50 hours of use — roughly once a week on most active jobs.

Overview

Bellows are more than rubber sleeves — they keep dirt, dust, and grit from entering the engine and clutch. Skip inspection or rush replacement and you can face reduced compaction force, clogged filters, or a seized engine.

Proper Jumping Jack Rammer Bellows Replacement is straightforward when you use the right models, parts, and methods. This guide covers practical replacement tips, common mistakes to avoid, and how scheduled maintenance prevents expensive downtime.

Knowing When to Replace Rammer Bellows

The moment your rammer shows any of the warning signs below, plan to replace the bellows.

Warning signs indicating bellows replacement is needed
Warning Sign What It Indicates Why It Matters
Visible cracks, tears or splits in the bellows material The rubber is failing Dust and grit can now infiltrate inner components
Loss of compression or weaker impact force Seal is compromised You lose compaction performance and efficiency
Oil or grease leakage around the bellows area Seal or clamp failure Allows contaminants in and lubricant out
Bulging or deformation of the bellows Material has lost structural integrity The seal no longer holds pressure or shape

Pro note: If your rammer is still running original bellows after many service hours, proactively replace them — bellows become brittle with age and exposure.

Preparing for Replacement: Tools and Setup

What to gather first

  • Hand tools: wrench set, torque wrench, screwdrivers, soft mallet.
  • Safety gear: gloves, eye protection, dust mask.
  • Replacement parts: new bellows kit, clamps, seals, and a small oil refill if your model requires bottom-end oil.
  • Cleaning supplies: rags, wire brush, mild solvent to clear dirt and residue.

Setup tips

  • Park the rammer on stable, flat ground.
  • Disconnect the spark plug before touching internal components.
  • Drain fuel if you're working indoors or tilting the machine.
  • Keep your service manual or exploded diagram nearby for correct part orientation.

Step-by-Step Guide for Jumping Jack Rammer Bellows Replacement

  1. Identify your rammer and parts
    Confirm your rammer model and parts. Even when following Wacker Neuson or Multiquip manuals, verify the correct bellows and clamp part numbers before ordering.
    Pull up the parts diagram in the service manual or on your site to see exact callouts (BELLOWS, BELLOWS CLAMP, BAND GUIDE).
    View DanseUSA Rammer Parts
  2. Access and remove the old bellows
    Remove the foot plate and guide cylinder to reach the bellows assembly. Keep a disassembly guide handy. Loosen clamps carefully and slide off old bellows.
  3. Install the new bellows and clamps
    Slide new bellows into place, ensure even seating, tighten clamps gradually using torque specs. Model-specific kits guarantee proper fit.
  4. Reassemble, refill oil, and test
    Reinstall guide cylinder and foot plate. Refill bottom-end oil, run rammer briefly, check clamp tightness and bellows seating.

Common Bellows Installation Mistakes

  • Ordering mismatched parts — wrong bellows size or clamp spec.
  • Over-tightening clamps — may crack bellows or damage guide band.
  • Skipping oil checks — accelerates wear.
  • Guesswork installations without diagrams — misalignment causes leaks.

👉 Explore Multiquip jumping jack rammer parts for MTX60HD, MTX50HD, MT75HS: DanseUSA Rammer Parts Collection

Final Takeaway

Focus on model-specific parts and diagrams to ensure correct ordering and installation, avoiding wasted time and costly mistakes.

Contact DanseUSA Support  or Email Support

Frequently Asked Questions (FAQs)

1. What is a bellows in a Jumping Jack rammer and why replace it?
The bellows shield the lower assembly from dirt and debris. Cracks or tears reduce impact and can cause further damage. Replace worn bellows to maintain reliable operation.
2. How do I know when to replace the bellows?
Inspect bellows every 50 hours per manufacturer guidance (Multiquip/Wacker Neuson). Replace sooner if you see physical damage or loss of compression.
3. Do I need a pro or can I replace it myself?
If you have mechanical aptitude and the right tools, you can replace bellows yourself. When in doubt about torque or alignment, consult a professional.
4. What tools are needed?
Basic hand tools (screwdrivers, socket wrenches, torque wrench), safety gear, and possibly an oil pan for bottom-end oil changes.
5. OEM vs aftermarket bellows — which to use?
OEM parts are recommended for guaranteed fit and material quality. High-quality aftermarket parts may work, but quality varies.
6. Where can I buy replacement bellows for Mikasa and other rammers?
Model-specific bellows and components are available on DanseUSA. Check the parts diagram for exact fitment before ordering.
