About CS8GH CrakChaser Random Crack Saw Parts by General Equipment
CS8GH CrakChaser Random Crack Saw Parts by General Equipment
Designed for use with 8-inch diameter dry-type diamond segment blades. Equipped with the following standard features: welded, unitized frame; extra heavy-duty, sealed swivel casters; 8-inch diameter, rubber-backed rear casters; extra capacity, twin-row, externally greased bearings; down cut blade rotation as viewed by the operator; 1-1/2 inch maximum straight-line cutting depth with adjustable depth control; Quik-Pitch blade engagement lever; Back-Saver on-the-fly blade depth adjustment, Less diamond blade.
Learn more about silica dust, basic planning steps, and tips to help you succeed in your dust control efforts. Feel free to download our Guide to Silica Dust Control and Written Exposure Plan Template and share it with others.
Specifications:
POWER SOURCE
Type: Honda, gasoline engine
Horse Power: 13HP (9.2kw)
Starting Method: Mechanical rewind
FRAME
Structure: Unitized, welded steel plate
Bearings: High capacity, Twin type, Ball bearing

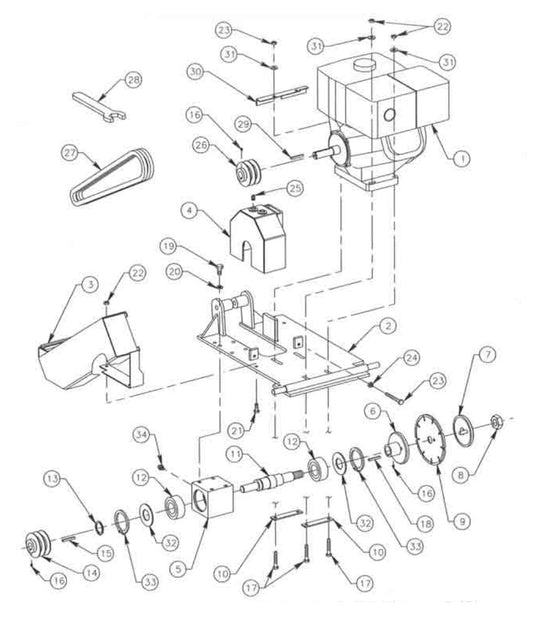

Drive System: Dual B Series, V-belt/pully and spur gear reduction

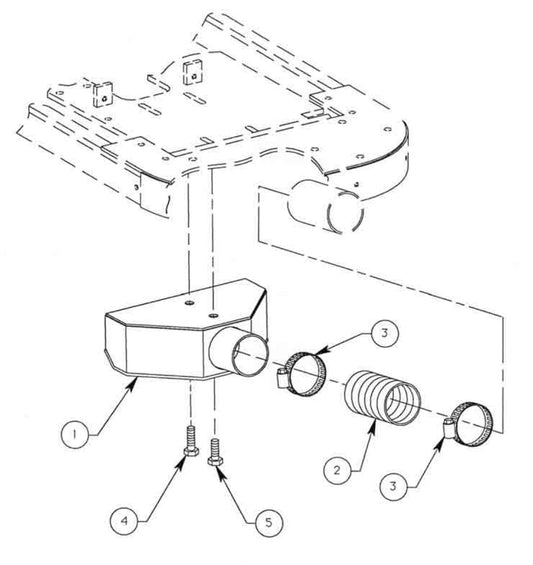

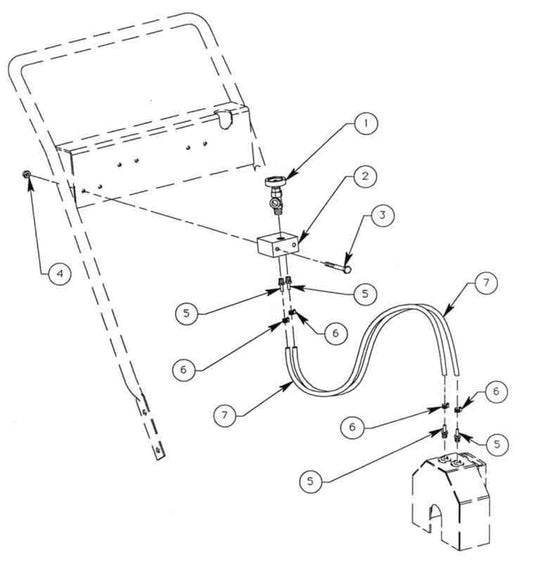

Dust Collection Port: 3 inch, dry cutting and dual water feed system port for wet cutting applications
GENERAL
Arbor Shaft Diameter: 1 inch (25 mm)
Width: 27-1/2 inch (699 mm)
Height: 43 inch (1092 mm)
Length: 52 inch (1321 mm)
Search through our detailed parts book for the CS8GH Crack chaser random crack saw by general equipment. Order only genuine parts for your general equipment surface preparation and cutting equipment at the best prices.
Frequently Asked Questions

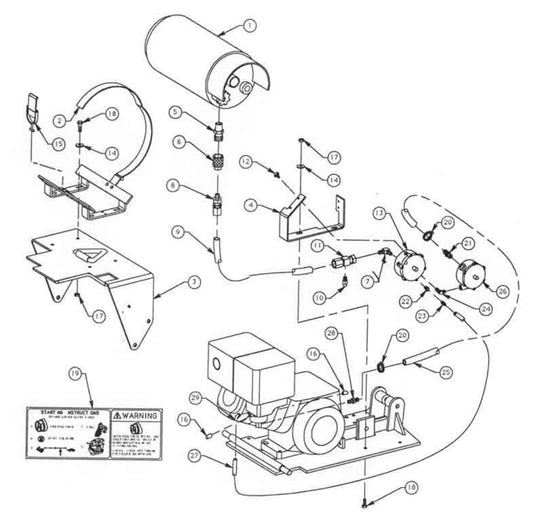

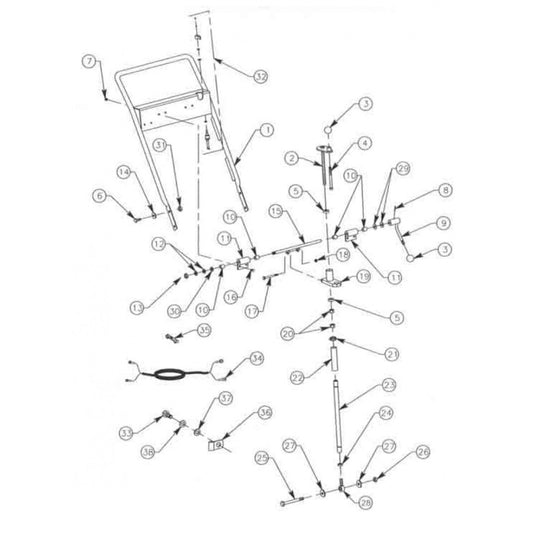

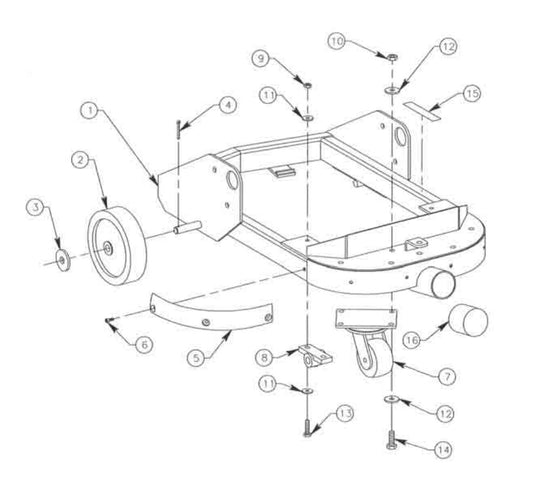

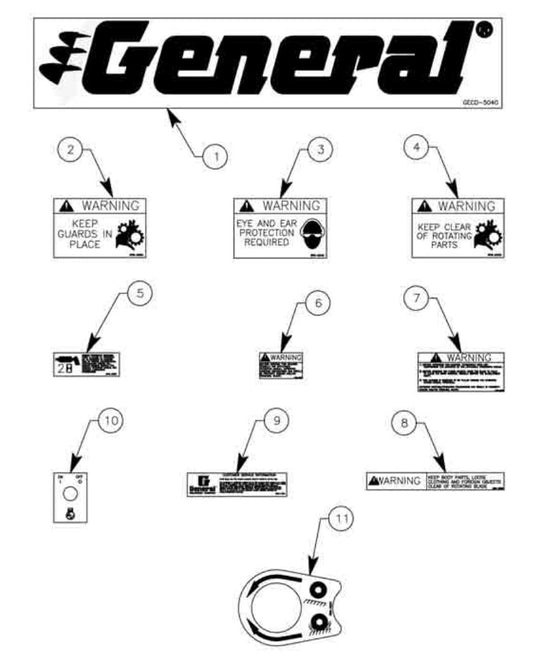

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.
The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.
Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision
Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.
Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
