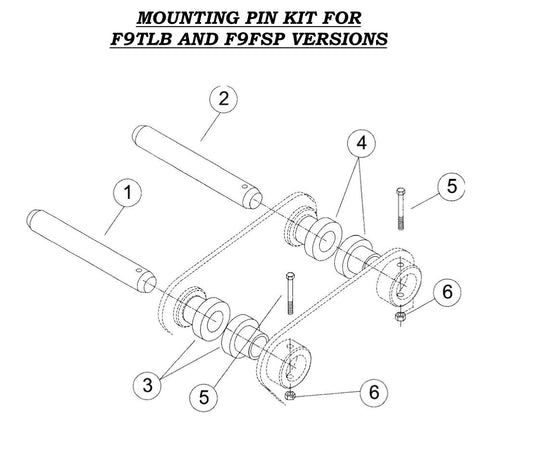

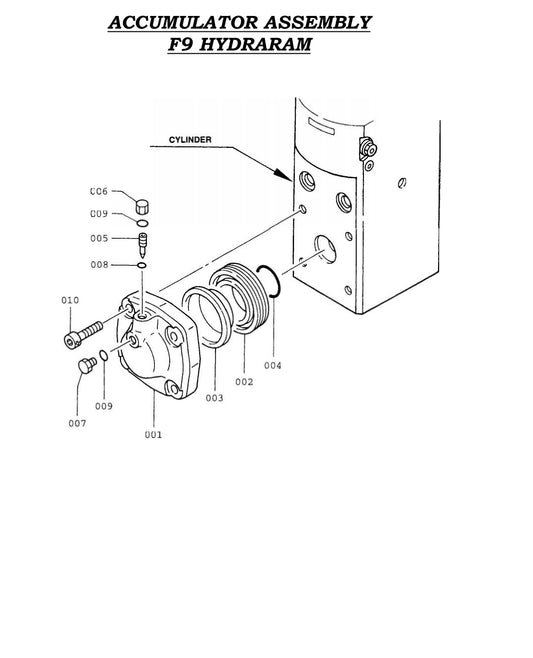

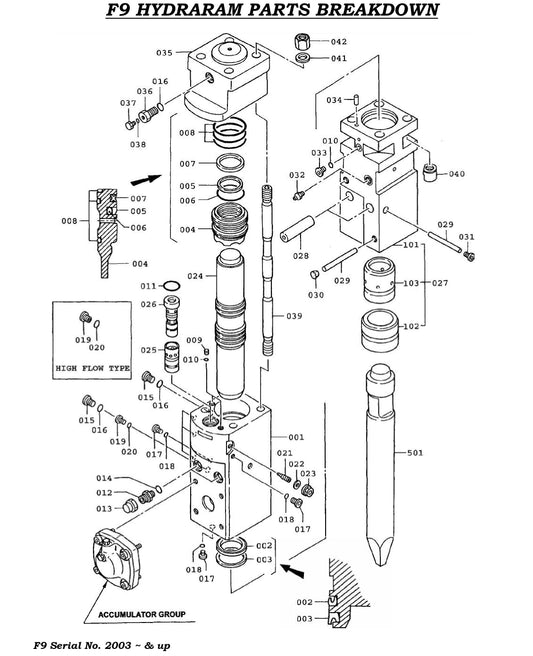

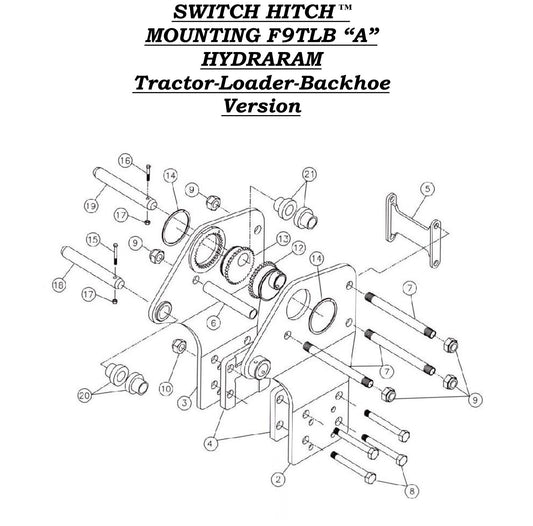

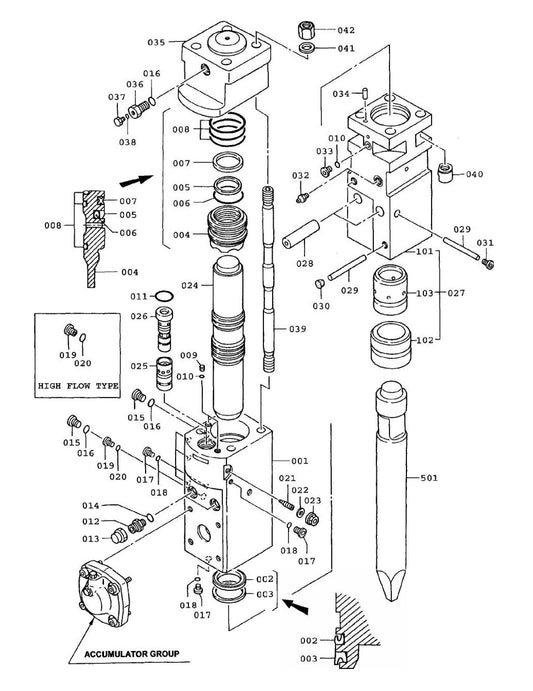

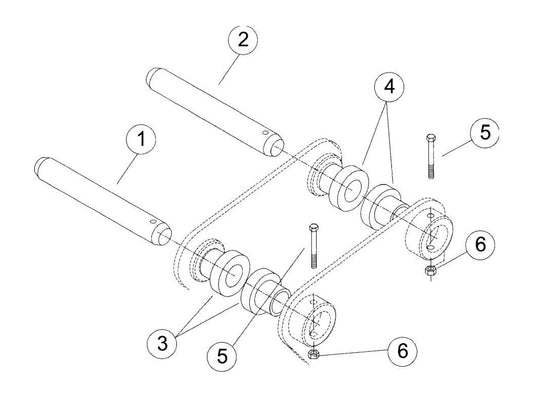

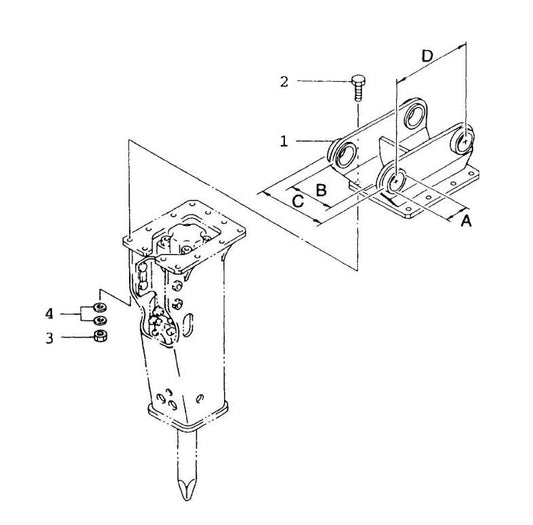

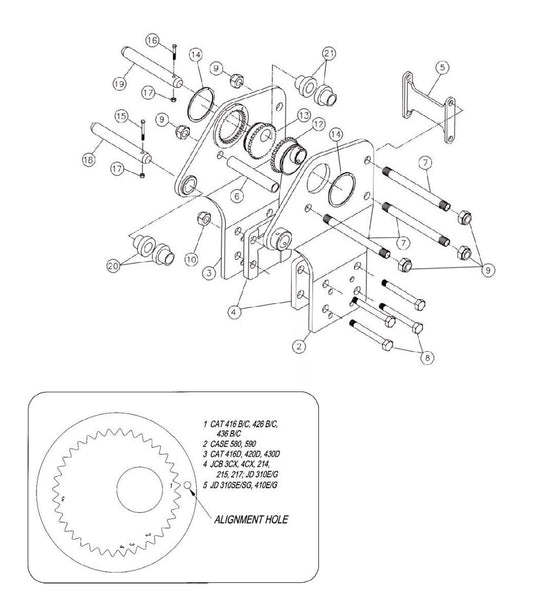

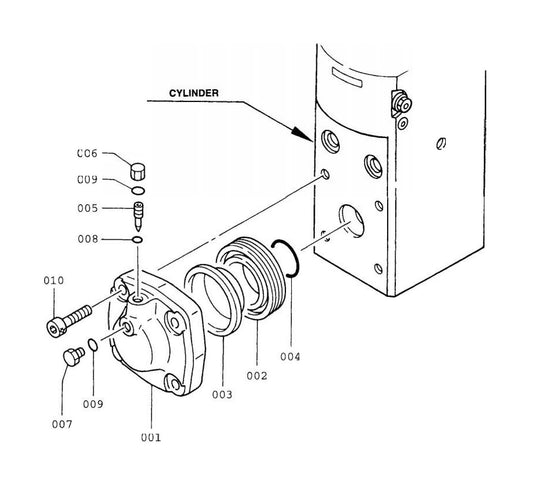

Shop By Diagram
Showing 1 to 8 of 8 items
Frequently Used Parts
Showing 1 to 10 of 10 items

About F9 Hydraulic Breaker Parts by FRD Kent

Essential Maintenance Tips for the Furukawa (FRD) F9 Hydraulic Breaker

Maintaining your Furukawa (FRD) F9 hydraulic breaker is essential for ensuring its longevity and optimal performance. Regular maintenance not only keeps your equipment in top condition but also helps prevent costly repairs and downtime. Here are key maintenance tips based on the Furukawa Rock Drill USA manual.

Long-Term Storage (More than Three Weeks)

  1. Elevate the Breaker: Place the breaker onto blocks with the top elevated.
  2. Remove Working Steel: Apply rust preventive oil inside the breaker after removing the working steel.
  3. Discharge Gas: Remove the plug from the backhead charge port and discharge the gas.
  4. Push Piston: Push the piston completely into the cylinder to prevent rust.
  5. Indoor Storage: Store the breaker indoors in a dry, warm environment. If not possible, use a raised platform and cover it with a waterproof cloth.

Daily Maintenance

  • Grease: Every 2-3 hours or more frequently if needed, using 20-30 shots with a 0.9 cc/stroke grease gun. Do not overload.
  • Inspection: Check for loose, missing, or damaged bolts, nuts, valves, charge port plugs, caps, hydraulic hoses, fittings, oil leaks, and rubber plugs.

Weekly Maintenance (Every 50 Hours)

  • Hydraulic Oil Level: Check in the carrier's reservoir.
  • Torque Check: Ensure all bolts, nuts, plugs, caps, and valves are properly torqued.
  • Working Steel: Inspect for cracks and damage.

Monthly Maintenance (Every 150 Hours)

  • Front Bushing: Check for wear.
  • Rod Pins and Working Steel: Inspect wear surfaces and remove burrs.
  • Backhead Charge: Check and charge if necessary.
  • Operating Pressure: Check and change the carrier's return filter.

Semi-Annual Maintenance (Every 600 Hours)

  • Hydraulic Oil: Check the condition and change the carrier's return filter.
  • Replace Pins: Rod and stop pins should be replaced.
  • Accumulator Gas Charge: Check and recharge if needed.

Annual Maintenance (Every 1200 Hours)

  • Disassemble and Reseal: Full disassembly and resealing of the breaker.
  • Check Components: Piston, liner, valve, seal retainer, and front bushing for wear.
  • Replace Through Bolts: Ensure all bolts and nuts are undamaged and properly replaced.

The Importance of Genuine FRD Parts

Using genuine FRD parts is crucial for maintaining the integrity and performance of your hydraulic breaker. Authentic parts from authorized dealers, like Danse USA, are designed to meet the high standards set by Furukawa Rock Drill USA. They ensure compatibility, reliability, and longevity of your equipment.

Purchasing genuine FRD parts from Danse USA guarantees that you receive quality components that meet the manufacturer's specifications. Non-genuine parts can lead to poor performance, increased wear and tear, and potential damage to your breaker, resulting in higher costs and downtime.

Why Choose Danse USA for Your FRD Parts?

Danse USA is an authorized dealer of genuine Furukawa (FRD) parts. They provide:

  • Quality Assurance: Genuine parts that ensure optimal performance and durability.
  • Expert Support: Professional advice and support for all your maintenance needs.
  • Reliability: Trusted source for high-quality parts, reducing the risk of equipment failure.

By following these maintenance procedures and using genuine parts from Danse USA, you can ensure your Furukawa F9 hydraulic breaker remains in top condition, reducing downtime and extending its lifespan. Regular checks and proper storage are key to preventing major issues and maintaining the breaker's performance.
