Husqvarna K760 Concrete Saw – Genuine OEM Parts & Diagrams
The Husqvarna K760 concrete saw (also called a Husqvarna K760 power cutter or cut-off saw) is a rugged, jobsite-proven handheld saw built for cutting concrete, asphalt, masonry and metal when paired with the correct blade. Whether you run a standard dry-cut setup or a water-fed configuration keeping your K760 saw parts maintained helps ensure reliable starts, smoother cutting and longer component life.
Common real-world uses for the K760 include:
- Concrete and asphalt cutting for repairs, removals, and joints
- Trenching and slab openings for plumbing, electrical, and drainage
- Block, brick, and masonry cuts on building and site work
- Occasional metal cutting (with the correct blade and guards)
This page is dedicated to genuine Husqvarna K760 parts so you can keep your machine running the way it was designed without guessing on fitment.
Find the right K760 assembly with Shop By Diagram
Use the Shop By Diagram links to open exploded views of each major K760 assembly. Each diagram connects the drawing’s reference numbers to the parts grid, so you can go from the worn or broken area on your saw to the exact OEM replacement part in a couple of clicks.
- Fuel system & tank components: For fuel cap, vents, tank fittings, trigger/tank hardware, and related items, start with the K760 Fuel Tank Assembly Parts diagram.
- Carburetion & fuel delivery: For carburetor-related components and common running issues, open K760 Carburetor Assembly Parts.
- Air intake / filtration: If the saw is losing power, running rich/lean, or you’re maintaining filtration, see K760 Air Filter Assembly Parts.
- Ignition & starting reliability: For ignition system components, use K760 Ignition System Assembly Parts. For recoil/starter parts, use K760 Starter Assembly Parts.
- Drive system: belt guard & pulleys: For belt guard parts, pulleys, and drive protection/alignment components, use K760 Belt Guard and Pulley Assembly Parts.
- Gaskets & sealing: If you’re doing a rebuild, chasing air leaks, or refreshing seals during service, use the K760 Gasket Kit Assembly Parts page to identify the correct pieces.
- Top-end / power loss repairs: For cylinder, piston, and muffler-related parts, see K760 Cylinder, Piston and Muffler Assembly Parts.
- Bottom-end rebuild parts: For deeper engine repairs, use: K760 Crankcase Assembly Parts.
Whether you’re maintaining one saw or supporting a fleet, these diagrams make it easier to buy the right Husqvarna K760 replacement parts online without trial-and-error on fitment.
Popular Husqvarna K760 replacement parts
While every jobsite is different, a few K760 components get replaced far more often due to wear, dust exposure, heat, and cutting loads. Here are some common “frequent-order” items that customers typically replace during routine service or repairs:
- Blade mounting hardware (flanges, washers, bushings): Cutting performance and blade tracking depend heavily on clean, undamaged mounting parts. Common replacements include the 583874402 Flange Washer 105mm, 506324801 Blade Support Flange, 506402902 Blade Bush, and the 506402802 Blade Bearing Cage.
- Drive & cutting load components: If you notice slipping, inconsistent blade speed, or abnormal vibration, drive components are a common wear point. The 506372702 Drive Belt is frequently replaced during service intervals or after heavy use.
- Starting, power, and ignition maintenance: For hard-starting saws or misfires, a basic tune-up part that gets replaced often is the 503235111 Spark Plug.

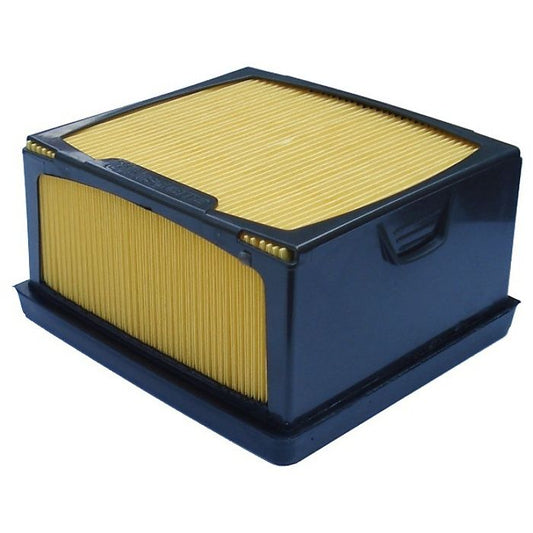

- Fuel/air delivery and cutting performance: When a saw bogs, surges, or won’t hold tune, air/fuel components are common suspects. Popular replacements include the 574362302 Air Filter and, when needed, a complete carburetor such as the 510181202 / 510181203 Carburettor (Manual Choke).
- Clutch & drivetrain service: For engagement issues or drivetrain repairs, customers often replace the complete 503744406 Clutch Assembly.
Every part number on this page is listed as an OEM replacement. Certain parts can be serial-number specific, so if you want us to confirm fitment, contact us and we’ll help identify the correct Husqvarna K760 parts for your exact saw.
