Genuine Husqvarna LT 6005 & LT 6005H Rammer Parts
Step up from the LT 5005 and you land on the Husqvarna LT 6005 — the higher-amplitude, heavier-class member of the LT-series rammer family. Its 67.7 mm stroke (compared with 54 mm on the LT 5005) delivers noticeably more impact energy per blow, which is why contractors reach for the 6005 on deeper lifts, harder soils, and granular base work where compaction depth matters more than speed through a narrow trench. Add the 11-inch (280 mm) foot option and you've got nearly double the coverage rate on wider backfill, foundation surrounds, and bedding work.
Three production variants exist on this platform: the standard LT 6005 with the Honda GXR 120, the LT 6005H high-altitude variant built around a standard Honda for elevation derating, and a China-market 11-inch build. DanseUSA carries the complete OEM parts catalog for all three — foot repair kits in both 9-inch and 11-inch sizes, transmission rebuilds, spring unit overhauls, the redesigned filter-box retrofit kit, and every wear part the platform consumes.
An authorized construction equipment parts dealer since 1981, we ship genuine Husqvarna packaging on every line item. No aftermarket substitutes.
LT 6005 Variants Covered
| Article No. | Variant | Foot | Engine |
|---|---|---|---|
| 967854501 | LT 6005 standard | 9 in. (230 mm) | Honda GXR 120 RT |
| 967854502 | LT 6005 standard | 11 in. (280 mm) | Honda GXR 120 RT |
| 967854503 | LT 6005H — high-altitude | 11 in. (280 mm) | Honda Standard (high-alt) |
| 967926202 | LT 6005 — China market | 11 in. (280 mm) | Honda GXR 120 RT |
Technical Specifications
| Parameter | 9-in. Foot | 11-in. Foot |
|---|---|---|
| Empty weight | 68 kg / 149 lb | 69 kg / 151 lb |
| Operating weight (½ fuel, oil) | 69 kg / 151 lb | 70 kg / 154 lb |
| Engine power | 2.7 kW / 3.6 hp @ 3600 rpm | 2.7 kW / 3.6 hp @ 3600 rpm |
| Amplitude | 67.7 mm / 2.7 in | 67.7 mm / 2.7 in |
| Vibration frequency | 11.9 Hz (714 vpm) | 11.9 Hz (714 vpm) |
| Forward travel speed | 15–18 m/min | 15–18 m/min |
| Fuel consumption | 0.8 L/h | 0.8 L/h |
| Fuel tank | 3.0 L / 3.2 qts | 3.0 L / 3.2 qts |
| Engine oil capacity | 0.3 L | 0.3 L |
| Rammer leg oil capacity | 0.9 L | 0.9 L |
| Fuel | Unleaded, max 10% ethanol | Unleaded, max 10% ethanol |
| Engine / leg oil | SAE 10W-30, API SJ | SAE 10W-30, API SJ |
| Sound power (guaranteed) | 106 dB(A) | 106 dB(A) |
| Vibration level (ahv) | 6.4 m/s² | 6.4 m/s² |
Two specs separate the LT 6005 from the LT 5005: amplitude (67.7 mm vs 54 mm) and rammer leg oil capacity (0.9 L vs 0.6 L). Both reflect the heavier, higher-energy spring unit on the 6005.
Service & Repair Kits for the LT 6005
| Part Number | Description |
|---|---|

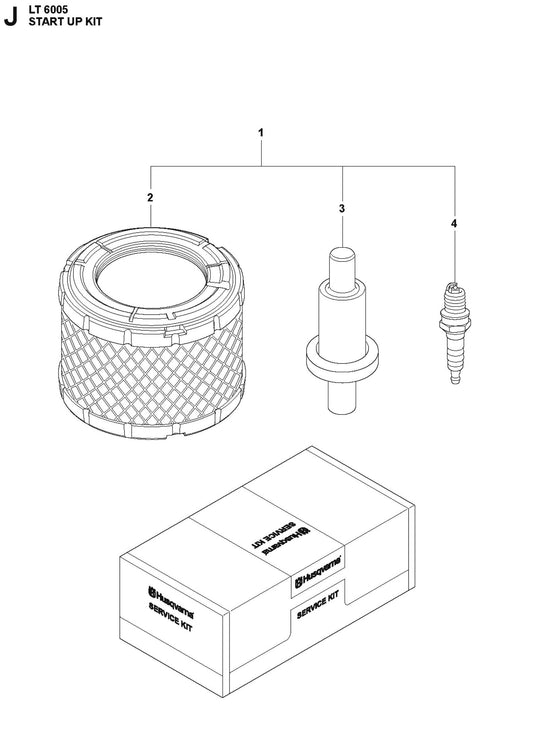

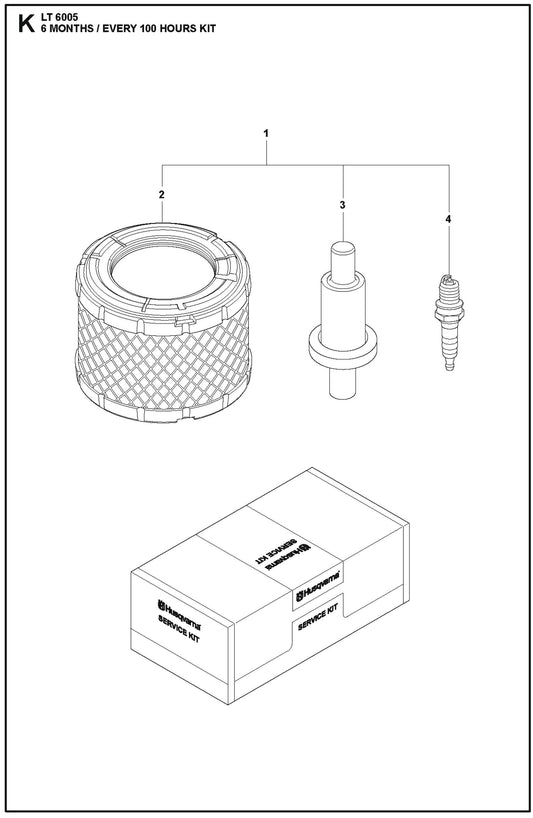

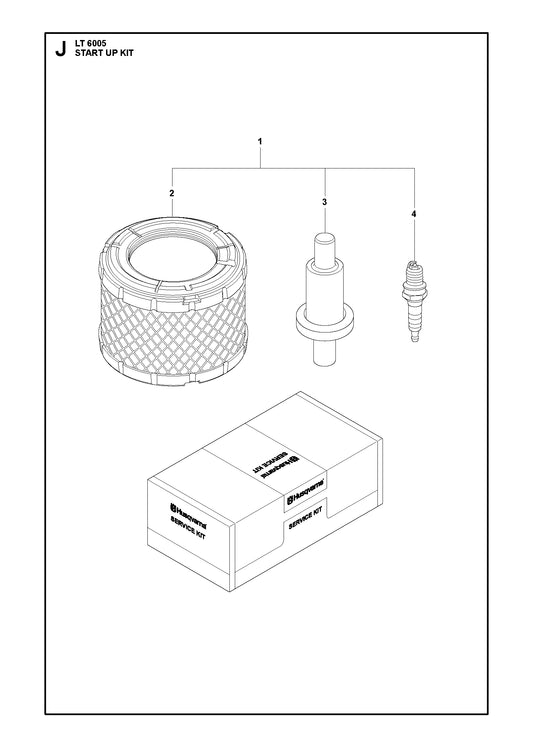

| 594 21 45-02 | One-Year Service Kit (air filter, fuel filter, spark plug) |

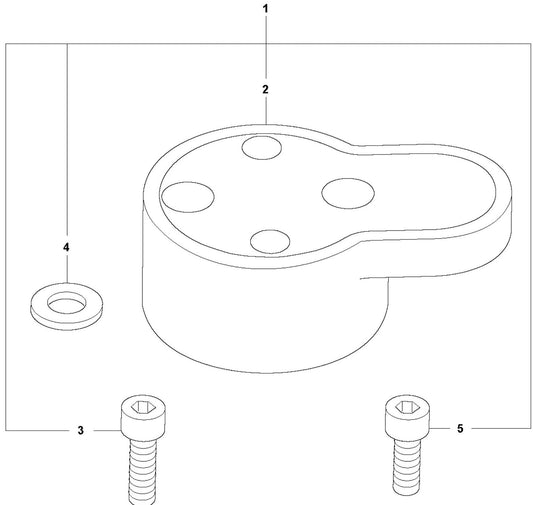

| 594 21 13-01 | Shock Absorber Repair Kit |

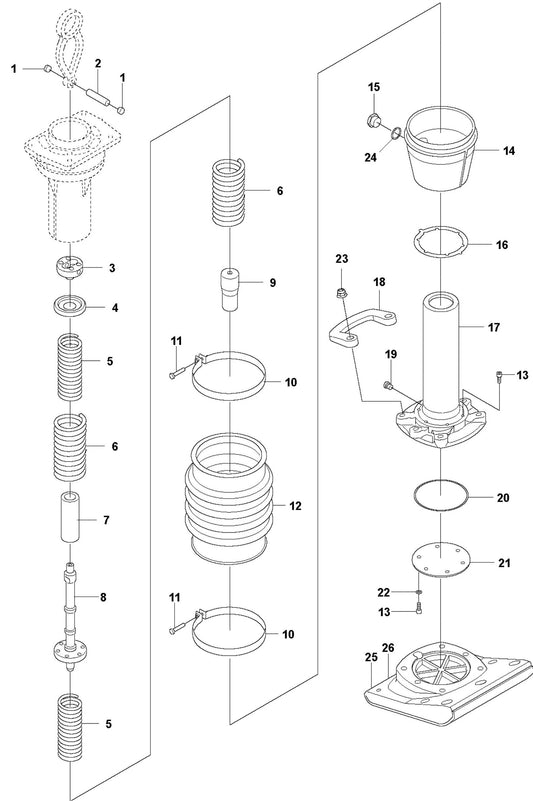

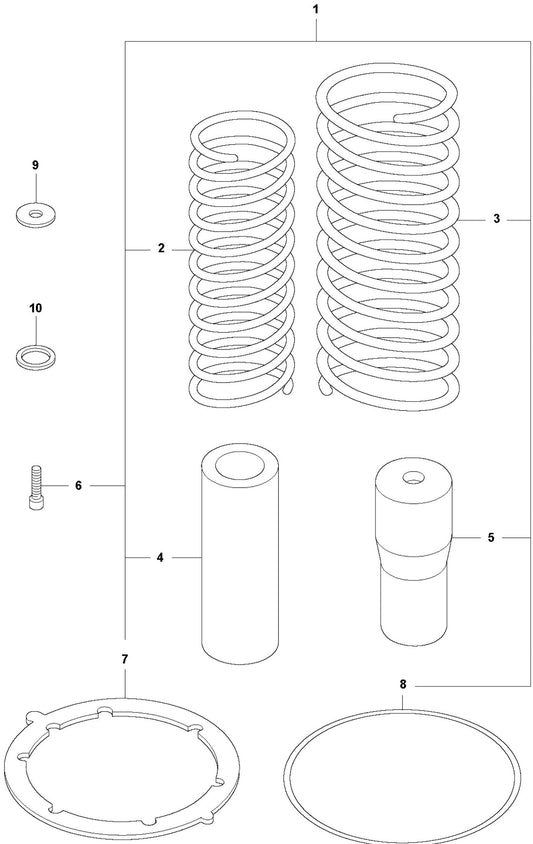

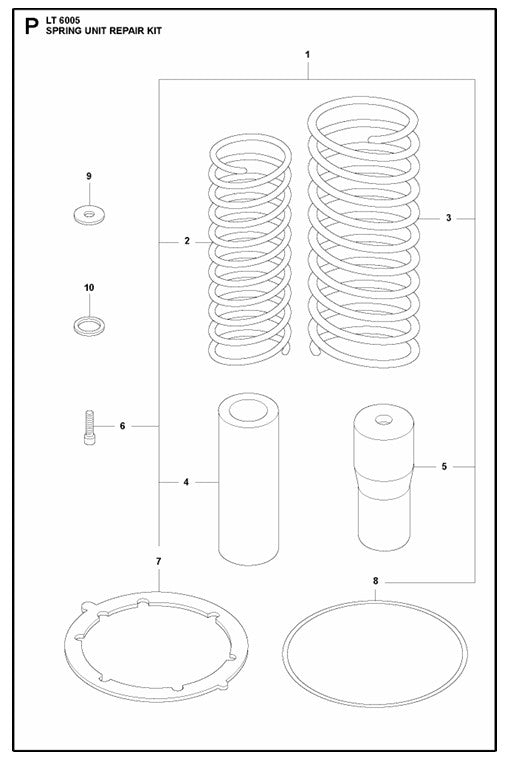

| 594 65 52-01 | Spring Unit Repair Kit — LT 6005-specific (P/N differs from LT 5005) |

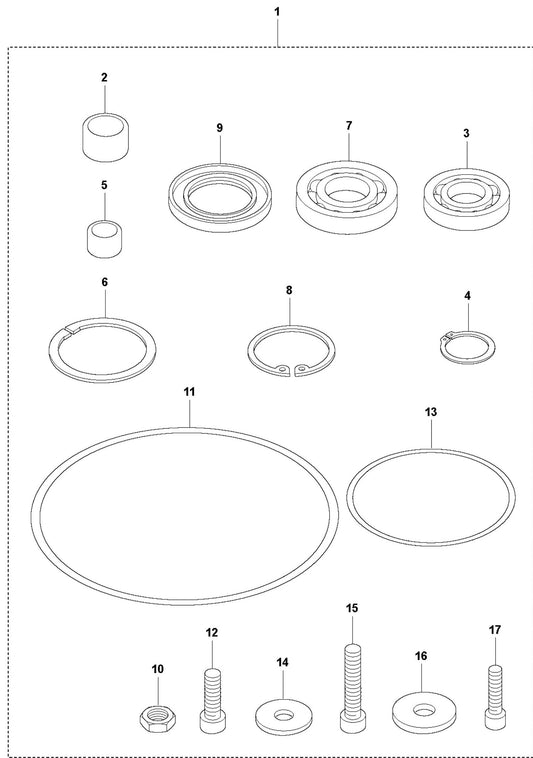

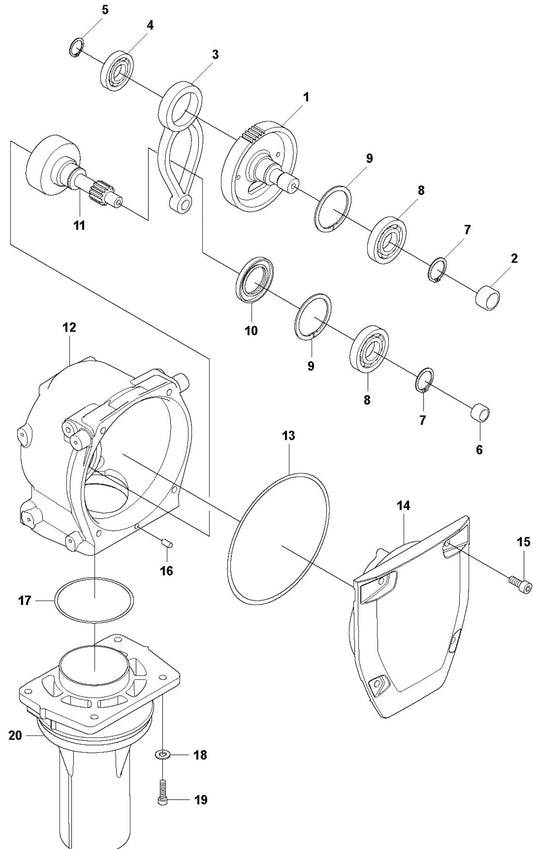

| 594 65 51-01 | Transmission Repair Kit (shared with LT 5005) |
Don't cross-reference the spring unit kit with the LT 5005. The LT 6005 calls for 594 65 52-01; the LT 5005 calls for 594 65 71-01. Internal components differ to handle the higher amplitude.
Foot Repair Kits
The LT 6005 uses foot repair kits (rebuild components for the existing rammer foot assembly), which is a different service approach than the LT 5005's complete foot kits. Order by foot width:
| Part Number | Description |
|---|---|

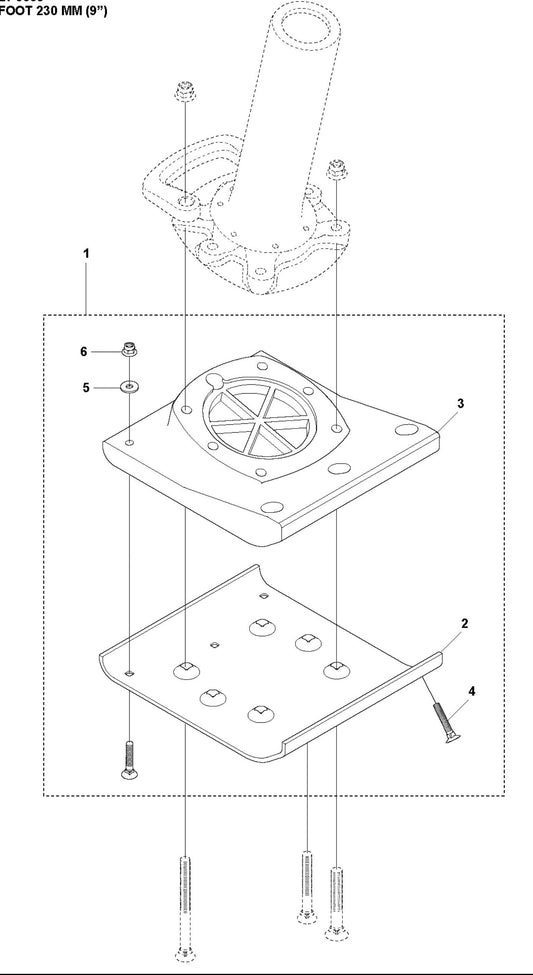

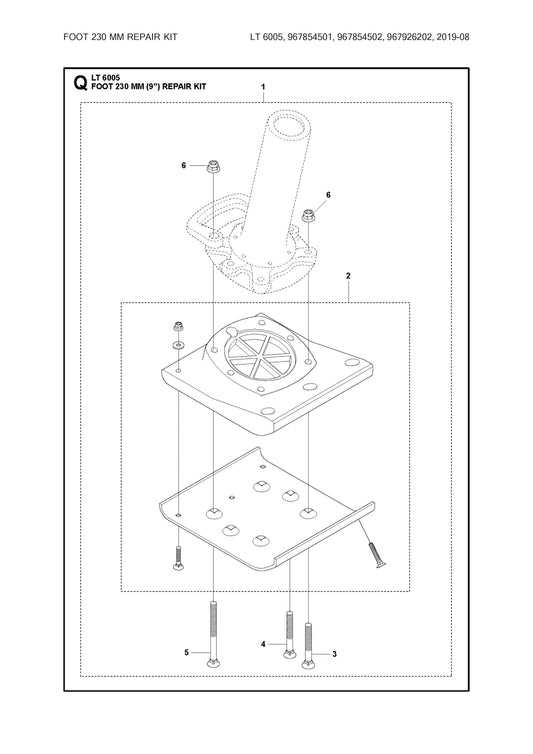

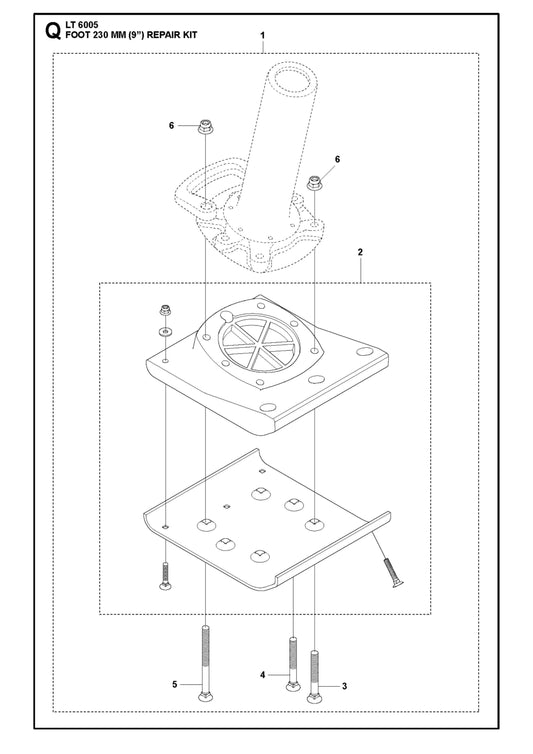

| 596 76 48-01 | Foot Repair Kit — 230 mm (9 in.) for 967854501 |

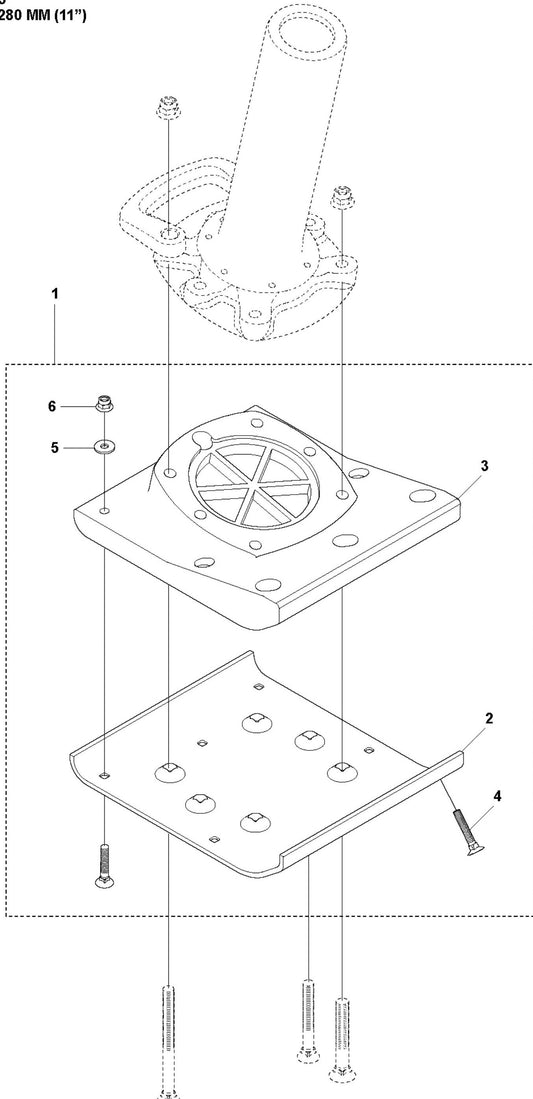

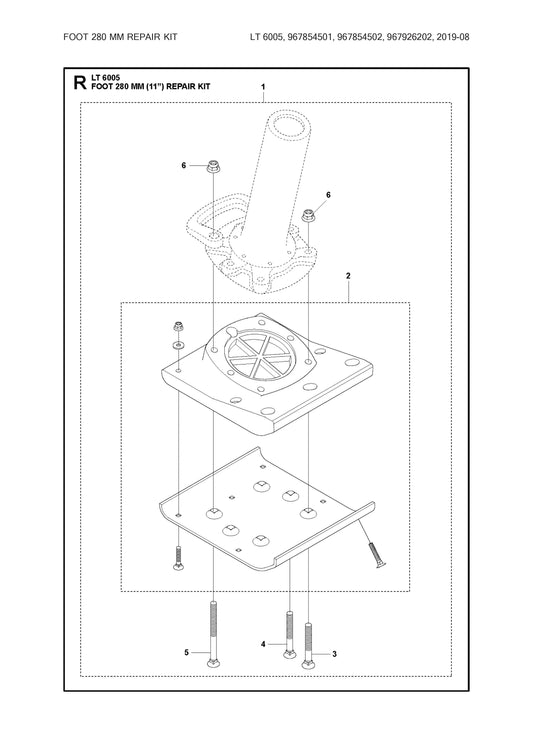

| 594 21 14-01 | Foot Repair Kit — 280 mm (11 in.) for 967854502, 967854503, 967926202 |
Routine Maintenance Parts
| Part Number | Description |
|---|---|

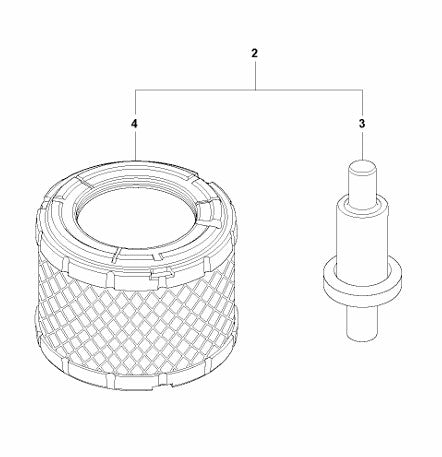

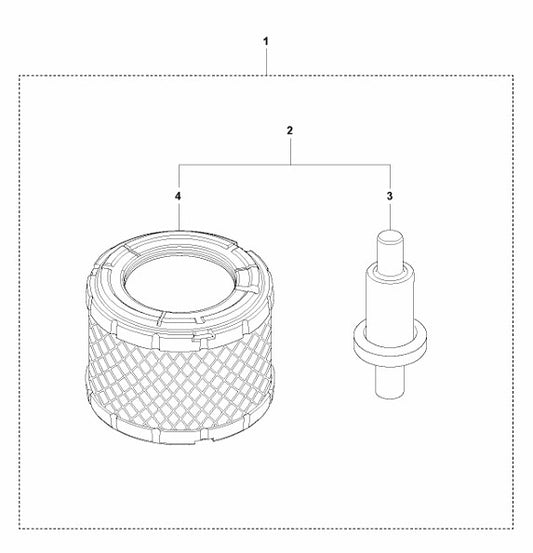

| 594 16 87-01 | Air Filter (paper element) |
| 594 19 29-01 | Fuel Filter |
| 594 19 03-01 | Starter Rope |
| 594 51 84-01 | Fiber Washer |
| 594 51 85-01 | Sight Plug |
Major Wear Components
| Part Number | Description |
|---|---|
| 595 36 76-02 | Air Filter Housing Complete |
| 599 99 52-01 | Hood Complete |
| 594 16 17-01 | Centrifugal Clutch |

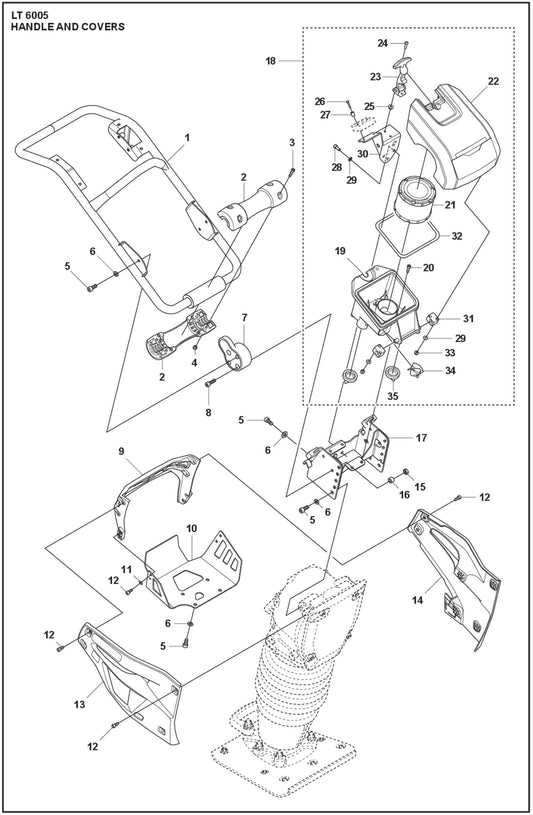

Retrofit Hood Kit — Service Bulletin B3210026A-07
The LT 6005 falls inside the same service bulletin as the LT 5005. Earlier HV-series builds used a threaded knob to clamp the hood to the air filter box; if the operator under-tightened the knob, vibration would gradually fatigue the M6 mounting screw on the box until it broke. Husqvarna's countermeasure was a redesigned filter box and hood that latch together with a rubber pull, eliminating the over-/under-torque failure mode entirely.
| Discontinued | Current Replacement |
|---|---|
| 595276101 — Plastic Cover Complete (HV) | 531043301 — Retrofit Kit, Filter Box with Cover Complete |
Kit contents include the new filter box, hood (Cover LT), latch (LATCH LG 504), two Hood brackets plus a third smaller bracket, flap vane, two evacuator valves, gasket, replacement air filter, all required hardware, and brand and packaging decals. Assembly instructions ship inside.
If your LT 6005 still uses the original knob, this kit is the only path forward — the old plastic cover P/N 595276101 is no longer manufactured.
Stocking Recommendations for Fleet Operators
Husqvarna's 2024 stock guidance per 20 LT 6005 machines:
| Part | Qty per 20 Machines |
|---|---|
| Air filter (594 16 87-01) | 10 |
| Fuel filter (594 19 29-01) | 5 |
| One-year service kit (594 21 45-02) | 5 |
| 9-in. foot repair kit (596 76 48-01) | 5 |
| 11-in. foot repair kit (594 21 14-01) | 5 |
| Centrifugal clutch (594 16 17-01) | 5 |
| Starter rope (594 19 03-01) | 5 |
| Fiber washer (594 51 84-01) | 3 |
| Sight plug (594 51 85-01) | 3 |
| Shock absorber repair kit (594 21 13-01) | 2 |
| Spring unit repair kit (594 65 52-01) | 2 |
| Transmission repair kit (594 65 51-01) | 2 |
| Hood complete (599 99 52-01) | 2 |
| Air filter housing (595 36 76-02) | 2 |
Running a mixed LT 5005 / LT 6005 fleet? Several parts overlap (air filter, fuel filter, service kit, hood, air filter housing, clutch, starter rope), but the spring unit kit and foot service parts are model-specific. Email [email protected] with your fleet breakdown and we'll quote a combined stocking package.
Service Intervals
| Interval | Required Tasks |
|---|---|
| Pre-shift / each 10 h | Fuel and engine oil check, leak inspection, fastener walk-around, throttle and choke movement, rammer leg sight glass, rubber latch condition |
| After first 20 h (break-in) | Engine oil change, air filter replacement, rammer shoe bolt re-torque, rammer leg oil change |
| Weekly / each 100 h | Engine oil, air filter indicator inspection, vibration damper check |
| Engine service / each 300 h | Spark plug, valve clearance, spark arrester (per Honda GXR 120 manual; LT 6005H follows the high-altitude Honda manual) |
| Annual / each 500 h | Rammer leg oil change (0.9 L), full vibration damper inspection |
Critical Torque References (LT 6005)
Workshop manual values for the LT 6005 — the spring unit torque is the one most commonly mis-applied because it differs from the LT 5005:
| Fastener | Torque |
|---|---|
| Spring unit piston nut | 154 Nm (LT 6005 / 6005H — LT 5005 is 117 Nm) |
| Bottom plate bolt | 100 Nm |
| Rammer shoe M12 bolts | 78 Nm (recheck after 10 hours of operation) |
| Engine mount bolts | 45 Nm |
| Sight glass / drain plug | 40 Nm |
| Centrifugal clutch nut | 24 Nm |
| Engine flange (exhaust side) | 26 Nm |
| Handle frame and engine bracket bolts | 23 Nm |
| Rammer shoe steel plate (M8) | 15 Nm |

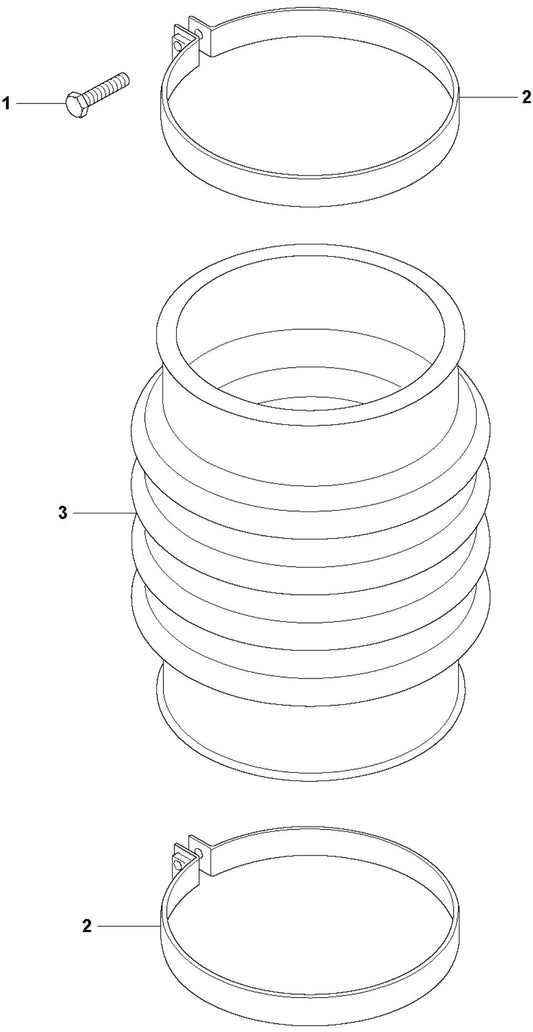

| Bellows clamps | 8.4 Nm |
| Filter housing, fuel tank, cover bolts | 8 Nm |
Why DanseUSA for LT 6005 Parts
- Authorized parts dealer since 1981 — over 40 years stocking and shipping construction equipment OEM
- All three LT 6005 variants supported — standard, 6005H high-altitude, and China-market 11-inch build
- Both foot service paths covered — 9-in. and 11-in. repair kits in stock
- OEM packaging only — no aftermarket clones or imitation parts
- Cross-model expertise — we know which parts overlap with the LT 5005 and which don't, so you don't end up with the wrong spring unit kit on the bench
- Fleet stocking quotes — send us your unit count and we'll build a tailored parts package
Identify Before You Order
The LT 6005 type plate sits beside the air filter housing and lists the article number (967854501, 967854502, 967854503, or 967926202). Send that number plus a description or photo of the failed part to [email protected] and we'll confirm the exact OEM reference for your machine before you place the order. This is especially useful for the 6005H, where the engine differs from the standard build.
