Collection: PRO 1.5+ 25L1 Electric Concrete Vibrator Parts by Northrock

Genuine OEM replacement parts for the Northrock PRO 1.5+ electric concrete vibrator motor (Northrock model numbers 25L1 and 25L1QD for the quick-disconnect version).

DanseUSA is an authorized Northrock dealer — every part on this page is factory-original, shipped from US warehouses, and matched to the exact Northrock parts breakdown published in the PRO 1.5+ / PRO 2+ / PRO 3+ service manual.

Use the Shop by Diagram tool below to click the numbered callout on the exploded view and jump straight to the right part. Don't know which model you have? Email [email protected] with a photo of the motor nameplate and we'll confirm it before you buy.

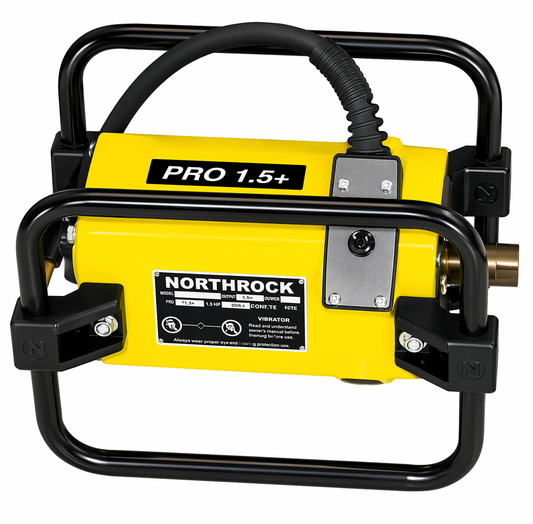

About the Northrock PRO 1.5+ Motor

The Northrock PRO 1.5+ is the smallest power unit in Northrock's flagship three-motor electric vibrator lineup (PRO 1.5+ / PRO 2+ / PRO 3+). It's a single-phase universal 1.5 HP motor designed for concrete consolidation on residential slabs, footings, curb-and-gutter, small columns, and light commercial pours. The motor drives Northrock flexible shafts and steel vibrator heads up to 1-1/2" in diameter (with some quick-disconnect configurations rated up to 1-3/4"), and it runs off a standard 115V household or generator outlet.

Northrock PRO 1.5+ Key Specifications

• Model numbers: 25L1 (standard) / 25L1QD (quick-disconnect)
• Motor: 1.5 HP, single-phase universal
• Voltage: 115V, 60 Hz
• Amp draw: 13 A (runs on a standard 15 A outlet)
• Max head diameter: 1-1/2" (up to 1-3/4" on QD configurations)
• Max shaft length: 42 ft with shaft connector
• Target vibration frequency: ~10,000 VPM under load
• Plug type: 3-prong grounded, NEMA 5-15
• Certifications: UL / cUL Listed
• Housing: High-strength cast aluminum (heat-dissipating)
• Origin: Made in USA — Bohemia, NY

How the PRO 1.5+ compares to the PRO 2+ and PRO 3+

Shaft & Head Compatibility — What Fits the PRO 1.5+

Native Northrock shafts

The PRO 1.5+ is designed to run any Northrock flexible shaft in the following configurations:

• Standard-duty shafts — stiffer construction, better poking control for general slab work.
• Pencil shafts — more flexible; used with 3/4" and 1-1/4" heads for tight rebar-congested pours.
• Available lengths: 2 ft, 5 ft, 7 ft, 10 ft, 12 ft, 14 ft, 16 ft, and 21 ft in single continuous lengths.
• Maximum reach: up to 42 ft when two shafts are joined with a Northrock shaft connector.

Compatible Northrock head sizes for the PRO 1.5+

Because the PRO 1.5+ is rated for a maximum head diameter of 1-1/2", you can safely run the following Northrock heads:

• 3/4" head (nosepiece 100A75, shell 105A75) — rebar-dense walls, curbs, small columns.
• 1" head (nosepiece 100B1, shell 105B1) — residential slabs, sidewalks.
• 1-1/4" head (nosepiece 100C12, shell 105C12) — slabs-on-grade, driveways.
• 1-1/2" head (nosepiece 100D15, shell 105D15) — the largest head the PRO 1.5+ should be run with.

Do not run 1-3/4", 2", or 2-1/2" heads on a PRO 1.5+ motor. The motor will bog down under load, overheat, and burn brushes and bearings prematurely. Step up to a PRO 2+ or PRO 3+ for those head sizes.

Multi-brand shaft & head compatibility (adapter required)

One of the biggest reasons contractors standardize on Northrock motors is that they're not proprietary — the PRO 1.5+ can be configured with the correct core adapter (part starts with 160) and casing adapter (part starts with 150) to drive shafts and heads from virtually every major concrete vibrator brand on the market. That means a single PRO 1.5+ motor can rescue orphaned shafts and heads from retired motors you already own.

If your brand isn't listed, call +1 (202) 630-1027 or email [email protected] with your shaft brand, model, and head size — we will confirm the correct adapter before you order.

Northrock PRO 1.5+ Repair & Maintenance Guide

The PRO 1.5+ is a durable motor, but it's a brush-commutator universal motor running inside a sealed aluminum housing on a wet, dirty jobsite. The majority of "dead" PRO 1.5+ motors that come in for repair aren't actually dead — they need one of five common wear parts replaced. Here is the order of operations experienced Northrock service technicians follow when diagnosing a 25L1 that won't run, won't hold speed, or runs hot.

1) Carbon brushes — the #1 replacement part (Ref #21, P/N 490A1)

Carbon brushes are consumable. On a PRO 1.5+ running 4–6 hours per day, a pair of brushes typically lasts 200–400 operating hours before the carbon wears down to the retaining spring. Symptoms of worn brushes:

• Motor runs weakly or won't start under load
• Heavy sparking visible through the commutator service port
• Intermittent power as the motor warms up
• Distinct burning-carbon smell

Fix: Unplug the cord, remove both outer protective brush caps (P/N 400C1, Ref #23) and brush caps (P/N 500A1, Ref #22), pull the old brushes, inspect the commutator for glazing, and install a fresh pair of 490A1 brushes. Always replace brushes in pairs, never one at a time — an unmatched pair will wear unevenly and pit the commutator.

2) Ball bearings (Ref #8, P/N 140C300)

The PRO 1.5+ uses two sealed ball bearings, one on each end of the armature. Bearings fail from contamination (concrete dust infiltration) or from running the motor with a dry, unlubricated flexible shaft core — which back-drives drag into the motor and cooks the bearings. Symptoms:

• Loud grinding or squealing from the housing
• Armature shaft wobble when rotated by hand
• Motor runs hot even with a clean air filter

Fix: Replace both bearings as a set. Always diagnose the shaft lubrication at the same time — if the core is dry, grease it with lithium grease (approximately 1/16" coating, not more) before running the motor again, or the new bearings will fail too.

3) Armature and field coil (Ref #9 P/N 475B1, Ref #12 P/N 480B1)

These are the two large electrical components of the motor. Both are model-specific — the 1.5 HP armature (475B1) and field (480B1) are different parts from the PRO 2+ (475A1 / 480A1) and the PRO 3+ (475C1 / 480C1). Do not interchange these across models. Armature failure usually shows as a dead short, a burned commutator, or visible copper winding damage. Field coil failure shows as the motor spinning freely but with almost no torque.

4) Power cord (Ref #19, P/N 505H1)

The watertight strain-relief cord is a wear item on jobsites. Cords get crushed by wheelbarrows, yanked out of outlets, cut by rebar, and chewed by the sun. The 505H1 is the correct OEM replacement for the PRO 1.5+ and PRO 2+ (the PRO 3+ uses the heavier 505J1 cord). Replace any cord with visible nicks, a cracked strain-relief, or a damaged plug — do not tape and keep running. A damaged cord is an electrocution risk on wet concrete.

5) Air filter and baffle filter (Ref #32 P/N 470A1, Ref #6 P/N 470E1)

The air filter sits under the air filter cover (P/N 215N1) and keeps concrete dust out of the motor's cooling airflow. A clogged filter is the most common cause of thermal shutdown. Inspect the filter every 40 operating hours. If it's gray with embedded concrete powder, replace it. Do not run the motor without the filter installed — you'll destroy the brushes, armature, and bearings inside 50 hours.

6) Electric switch and switch seal (Ref #28 P/N 425B1, Ref #31 P/N 430A1)

The rocker switch and its water-resistant seal fail together. If the switch is mushy, sticks in the on position, or allows any water intrusion, replace both the switch and the seal as a pair. Running a PRO 1.5+ with a compromised switch seal is the fastest way to short the motor on a rainy pour.

Preventive maintenance schedule (from the Northrock service manual)

• Every shift: Inspect cord, plug, switch, and air filter cover. Clean dust off the housing.
• Every 40 hours: Open the air filter cover and clean or replace the filter.
• Every 50 hours: Disconnect the flexible shaft, pull the inner core, inspect for dry spots, and re-grease with lithium grease (~1/16" coating — do not over-grease, it adds drag and cooks the motor).
• Every 200 hours: Check carbon brush length through the service port. Replace if the carbon is worn past the retaining spring.
• Every 500 hours: Inspect commutator for glazing, pitting, or grooving. Light glazing can be cleaned with fine abrasive; deep grooving means the armature needs to be turned or replaced.
• Annually: Replace ball bearings if the motor sees heavy daily use.

Extension Cord Sizing for the PRO 1.5+

The PRO 1.5+ pulls 13 amps under load. Running the motor through an undersized extension cord is the single most common way contractors kill otherwise-healthy motors — the voltage drop causes the motor to draw more current to maintain RPM, which burns brushes, armature windings, and field coils. Use the chart below, straight from the Northrock service manual:

Outdoor jobsite cords must be marked with the suffix W-A (for example, SOW-A). Always use a 3-conductor grounded cord with a matching 3-prong grounded plug. If you're working in a damp or wet environment, plug the motor into a GFCI-protected outlet or use an inline GFCI adapter.

Why Buy Northrock PRO 1.5+ Parts from DanseUSA

• Authorized Northrock dealer — every part is genuine OEM, backed by the factory warranty.
• Same-day shipping — orders placed before 12 PM ET ship the same business day when the item is in stock.
• Shop-by-Diagram tool — click the numbered callout on the exploded view above to jump straight to the right part. No digging through part numbers.
• Compatibility support — email your motor's model and serial number to [email protected] or call +1 (202) 630-1027 and we'll verify fit before you buy.
• Multi-brand expertise — we carry Northrock, Wacker, Wyco, Oztec, Multiquip, Stone, and more, so we can help you cross-reference parts and adapt shafts and heads across brands.

Frequently Asked Questions

What's the difference between the 25L1 and 25L1QD?

Both are 1.5 HP PRO 1.5+ motors. The 25L1QD has a quick-disconnect coupling that lets you swap shafts in seconds without tools — ideal for rental fleets and crews that switch head sizes during a pour. The core motor internals are identical; the difference is the core adapter (160CW1 vs. 160AH1) and casing adapter (150DE1 vs. 150DW1) configuration.

Can I run a 2" or 2-1/2" head on my PRO 1.5+?

No. The PRO 1.5+ is rated for heads up to 1-1/2" diameter. Running larger heads overloads the motor, destroys the brushes and bearings prematurely, and voids the warranty. For heads larger than 1-1/2", upgrade to the PRO 2+ (2 HP) or PRO 3+ (3 HP).

How do I know if my brushes need replacing?

Pull one brush cap and inspect the brush. If the carbon portion is shorter than about 1/4" or if the brush has visibly chipped, cracked, or glazed faces, replace both brushes as a pair (P/N 490A1). Never mix a new brush with an old one.

My shafts are from a different brand — will the PRO 1.5+ run them?

Yes, with the correct core adapter and casing adapter. Northrock motors are designed around a universal countershaft. Check the compatibility table above for your brand (Wacker, Wyco, Oztec, Stow, Stone, Multiquip, Mikasa, etc.), order the matching adapter pair, and your existing shafts and heads will run on the PRO 1.5+.

Do I need to lubricate the motor bearings?

No — the motor bearings (140C300) are sealed for life and require no field lubrication. Replace them when they fail. However, the flexible shaft inner core does require regular lithium grease service every 50 operating hours. Dry shafts are the #1 cause of premature bearing failure in the motor.

Is the PRO 1.5+ repairable, or do I just replace the whole motor?

Fully repairable. Every consumable and wear component — brushes, bearings, armature, field coil, switch, cord, housing, frame — is individually replaceable with OEM parts. With regular maintenance, a PRO 1.5+ can run for thousands of hours across multiple armature replacements.

Where is the Northrock PRO 1.5+ manufactured?

All Northrock electric concrete vibrator motors, shafts, and heads are designed and manufactured in Bohemia, New York, USA.
