About Northrock PRO-1200 E Electric Ceiling Grinder Parts
Genuine OEM PRO-1200 Electric
Ceiling Grinder Parts
Find every replacement part for the Northrock PRO-1200 Electric Concrete Ceiling Grinder. OEM-certified components for every sub-assembly, shipped fast from an authorized Northrock supply channel.
The Northrock PRO-1200 Electric is the industry-standard tool for removing form marks, seams, and imperfections from poured concrete ceilings without scaffolding or stilts. DanseUSA is an authorized Northrock dealer stocking genuine OEM components, from the 1.5 HP Baldor motor (555B1) and grinding head assembly down to individual bearings, seals, and hardware.
Use the shop-by-diagram pages to identify the exact part you need by sub-assembly. Every part number matches the official Northrock PRO-1200 service manual. In-stock orders placed before 12 PM ET ship the same business day.
Looking for gas model parts? See Northrock PRO-1200G Gas Ceiling Grinder Parts. For all Northrock equipment, visit our Northrock Parts catalog.
| Specification | Detail |
|---|---|
| Motor | 1.5 HP Baldor Electric (115V / 220V switchable) |
| Ceiling Reach | 7 ft to 12 ft (adjustable via winch) |
| Grinding Head Thread | 5/8"-11 R.H., accepts standard concrete grinding wheels up to 9" diameter |
| Drive System | 7 ft flexible shaft with rubber-coated steel braiding |
| Pressure System | Spring-loaded cam-lock arm for constant, even ceiling contact |
| Mobility | Solid rubber tires with rear swivel caster |
| Dust Control Option | PRO-1200V model with integrated vacuum guard + HEPA cart (OSHA silica-compliant) |
The PRO-1200 Electric is organized into 10 sub-assemblies. Select any assembly to view the exploded parts diagram, identify components by reference number, and order directly.

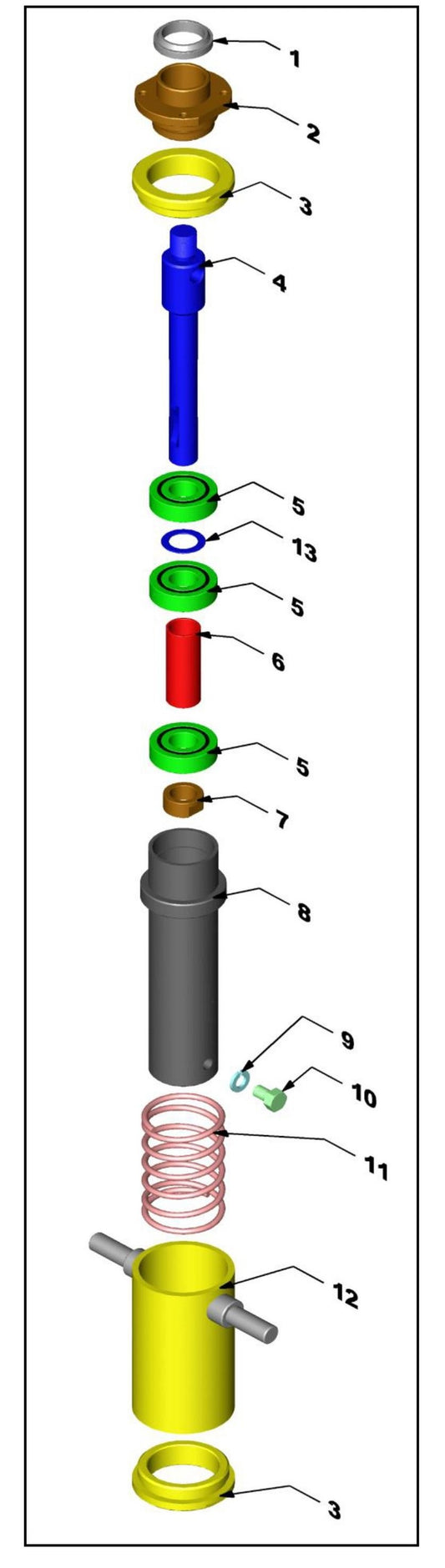

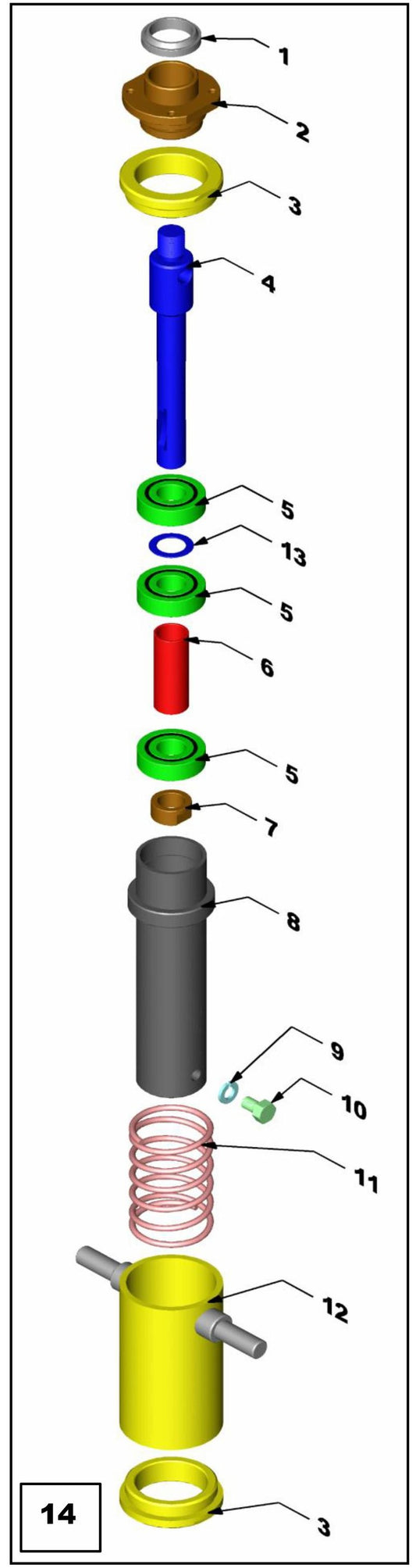

Grinding Head Assembly
Spindle (155CS1), ball bearings (140C003), inner/outer housing, compression spring, complete grinding head (25AM1)

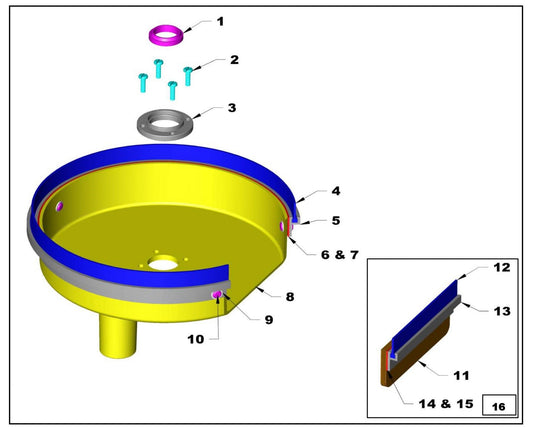

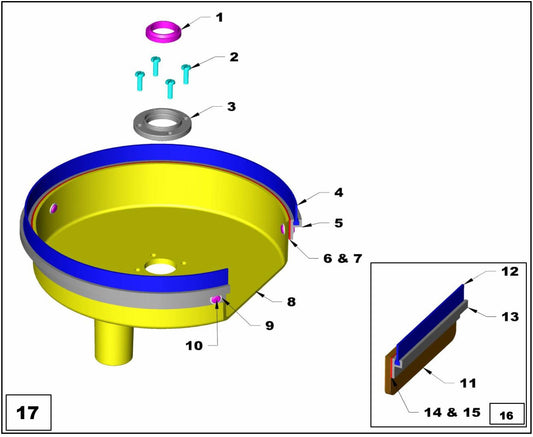

Guard Assembly
Vacuum guards (270E2, 270F2), brush seals, wiper dust seal (680A1), double-sided tape

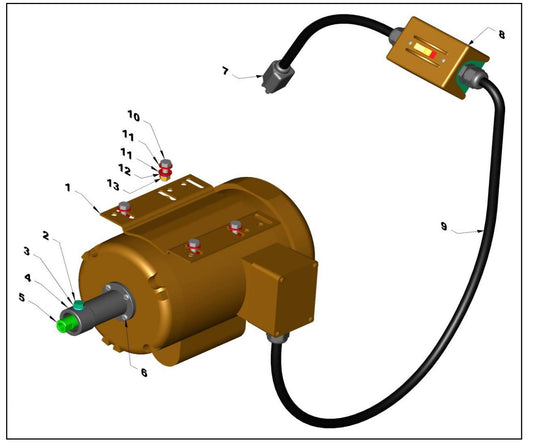

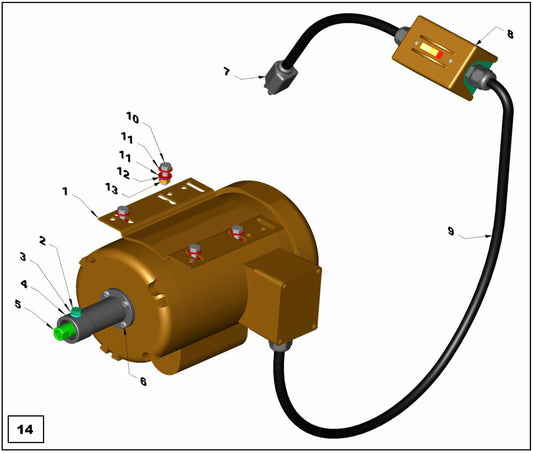

Electric Power Unit
1.5 HP Baldor motor (555B1), casing adapter (150HK2), core adapter (160ED2), power cord (505A1), electric switch (425D1)

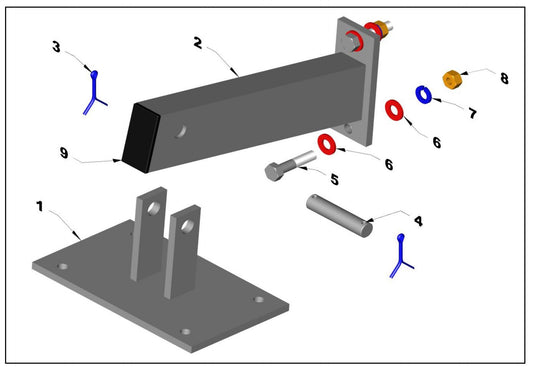

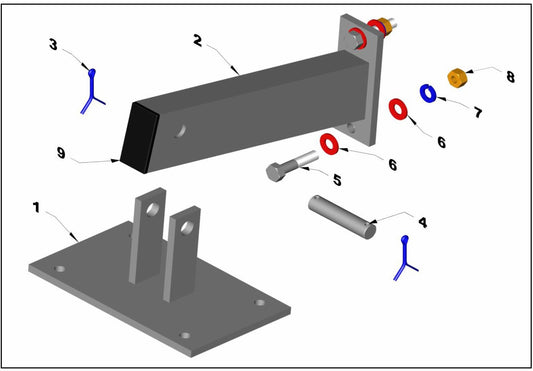

Electric Motor Hanger
Motor plate (440M1), hanger bracket (440L1), hinge pins (180D1)

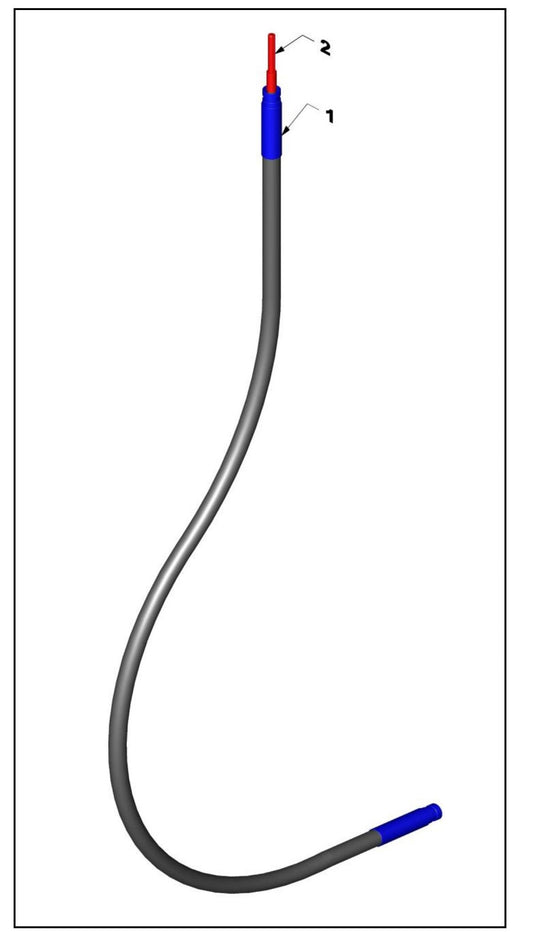

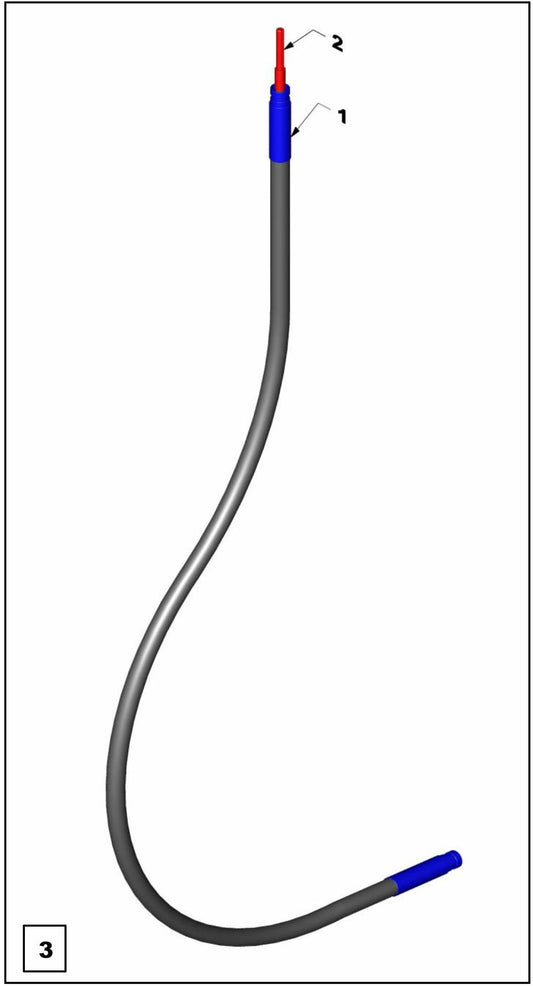

Flexible Shaft Assembly
7' outer casing (275Y7), 7' inner core (250T7), complete shaft assembly (30AK7)

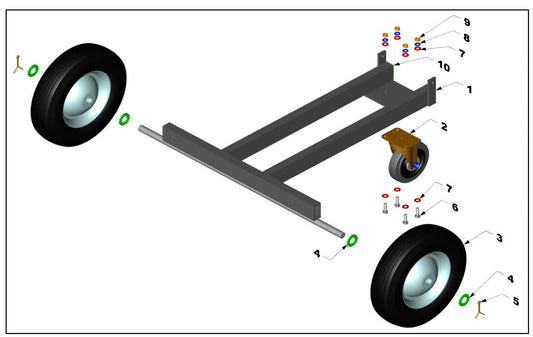

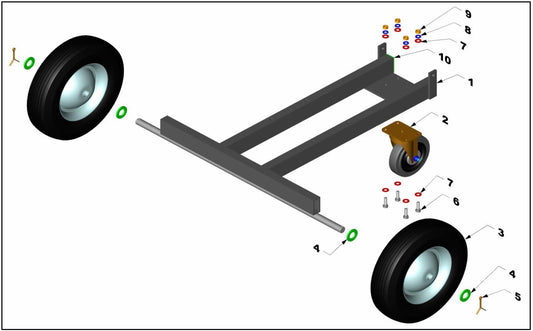

Base Frame Assembly
Base frame (440F1), swivel caster (590B1), rubber tires (590A1), cotter pins

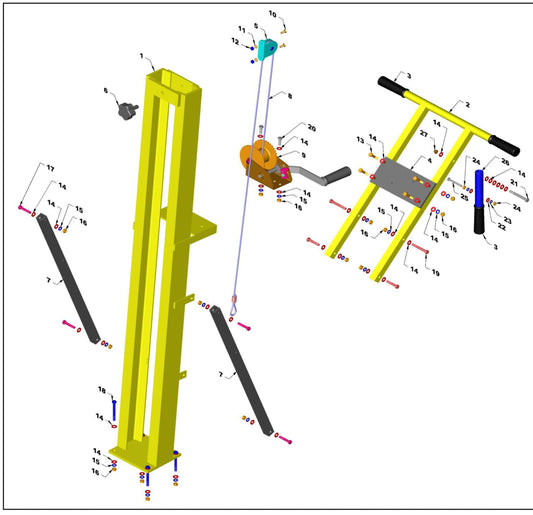

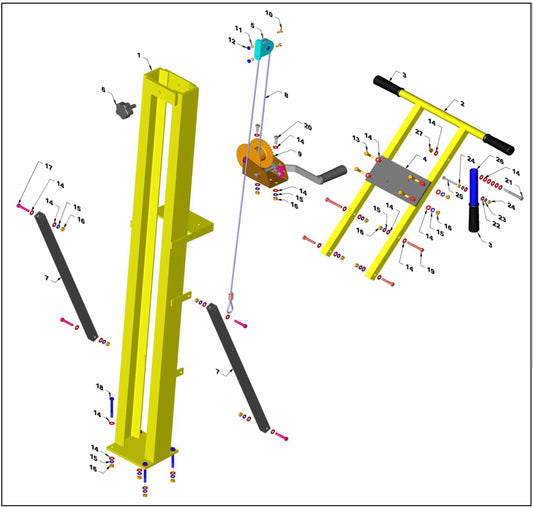

Main Frame Assembly
Main frame (440H1), handle (165D1), pulley (590C1), locking knob (365B1), cable assembly (315B2), winch (595A1), tension handle (165E1)

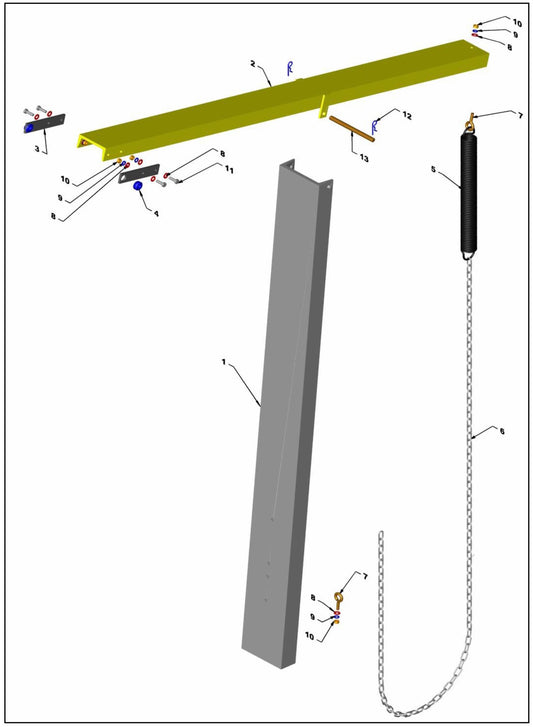

Mast & Cross Beam Frame
Mast (440K1), cross beam (440J2), tension spring (465B1), chain (315C1), eye bolts, hinge pin (180C1)

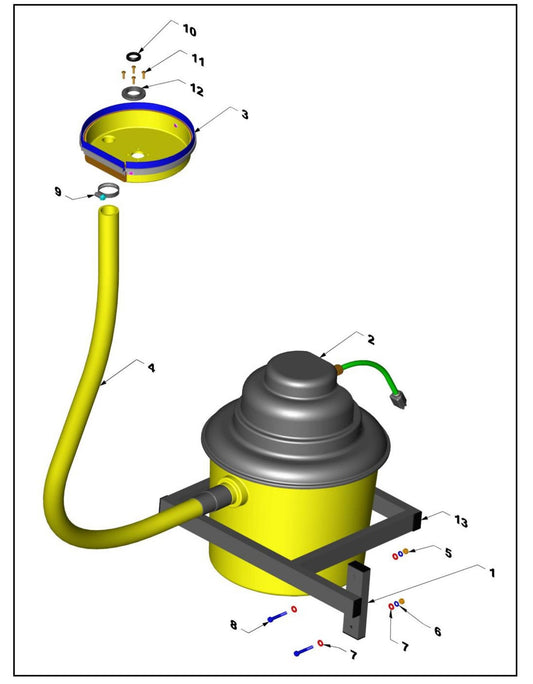

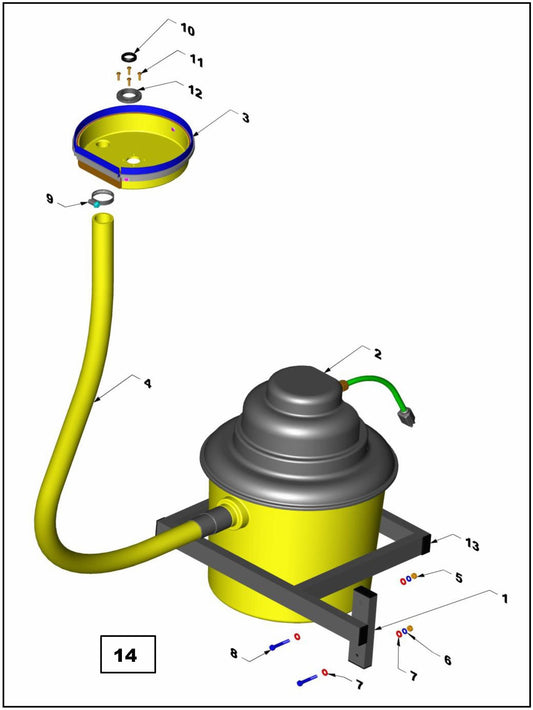

Vacuum Assembly
Vacuum unit (645A1), vacuum guard, vacuum hose (640A1), hose clamp, wiper seal (680A1)

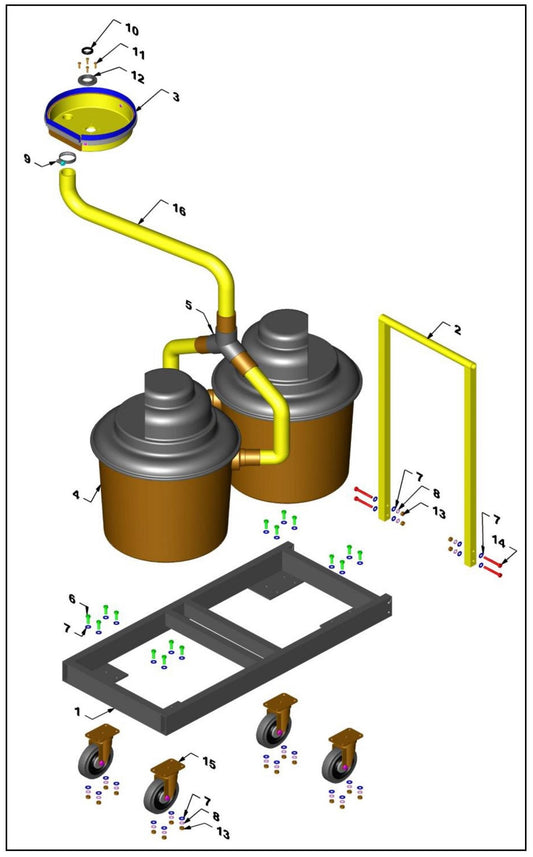

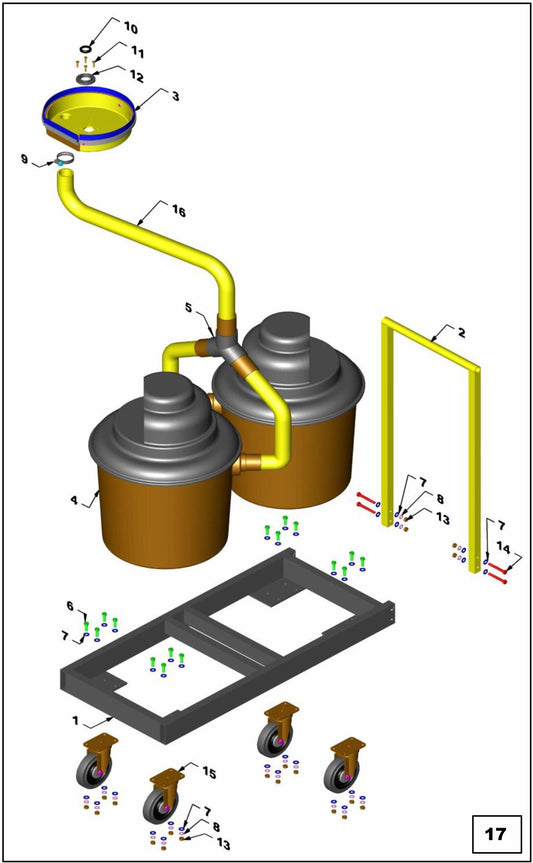

Dual Vacuum Cart Assembly
HEPA cart frame, handle, two vacuums, Y-hose adapter kit (640B1), swivel casters
Based on typical contractor use, these are the components that wear first on the PRO-1200 Electric:
- Flexible shaft inner core (250T7) - Inspect and re-lubricate with lithium grease every 50 hours of operation. Replace when the core shows dry spots, kinking, or reduced flexibility. Do not over-grease, as excess lubricant causes drag and overheating.
- Grinding head bearings (140C003) - Replace when you hear grinding noise from the head, feel excessive play in the spindle, or notice uneven cutting.
- Wiper dust seal (680A1) - Replace when dust leaks past the seal during operation. Critical for maintaining vacuum suction on the PRO-1200V.
- Guard brush seals - Replace when bristles are worn flat or missing sections, reducing dust capture efficiency.
- Electric switch (425D1) - Replace if the motor fails to start or operates intermittently. Check the power cord (505A1) for damage first.
- Tension spring (465B1) - Replace if the cam-lock pressure system no longer holds the grinding head firmly against the ceiling.
Most structural parts (grinding head, guard, flexible shaft, main frame, mast) are shared between both models. The key differences are in the power unit and motor hanger:
| PRO-1200 Electric | PRO-1200G Gas | |
|---|---|---|
| Motor | 1.5 HP Baldor Electric (555B1) | 4.0 HP Honda Gas Engine (555C1) |
| Best For | Indoor work, no exhaust fumes | Outdoor work, no power outlet needed |
| Motor Hanger | Electric motor plate (440M1) | Gas engine plate (440X1) |
| Casing Adapter | 150HK2 | 150HR2 |
| Core Adapter | 160ED2 | 160EE2 |
Motor
Keep the housing clean for proper cooling. Check the switch and electric cord for wear regularly. Motor bearings are sealed and require no additional lubrication. Replace the motor when bearings are worn.
Flexible Shaft
After approximately 50 hours of operation, remove the inner core on a clean surface free of dirt and grit. Inspect for dry areas. If lubrication is needed, wipe the core clean and apply a 1/16" coating of high-quality lithium grease. Do not over-grease.
Grinding Head
Periodically check bearings, seal, spindle, and spindle thread for wear. Replace components as needed to maintain even, gouge-free grinding performance.
General
Check all bolts for snugness regularly. Always have the switch OFF before plugging in. Never start the grinder with the head pressed to the ceiling. Start first, then gradually apply pressure using the tension handle.
