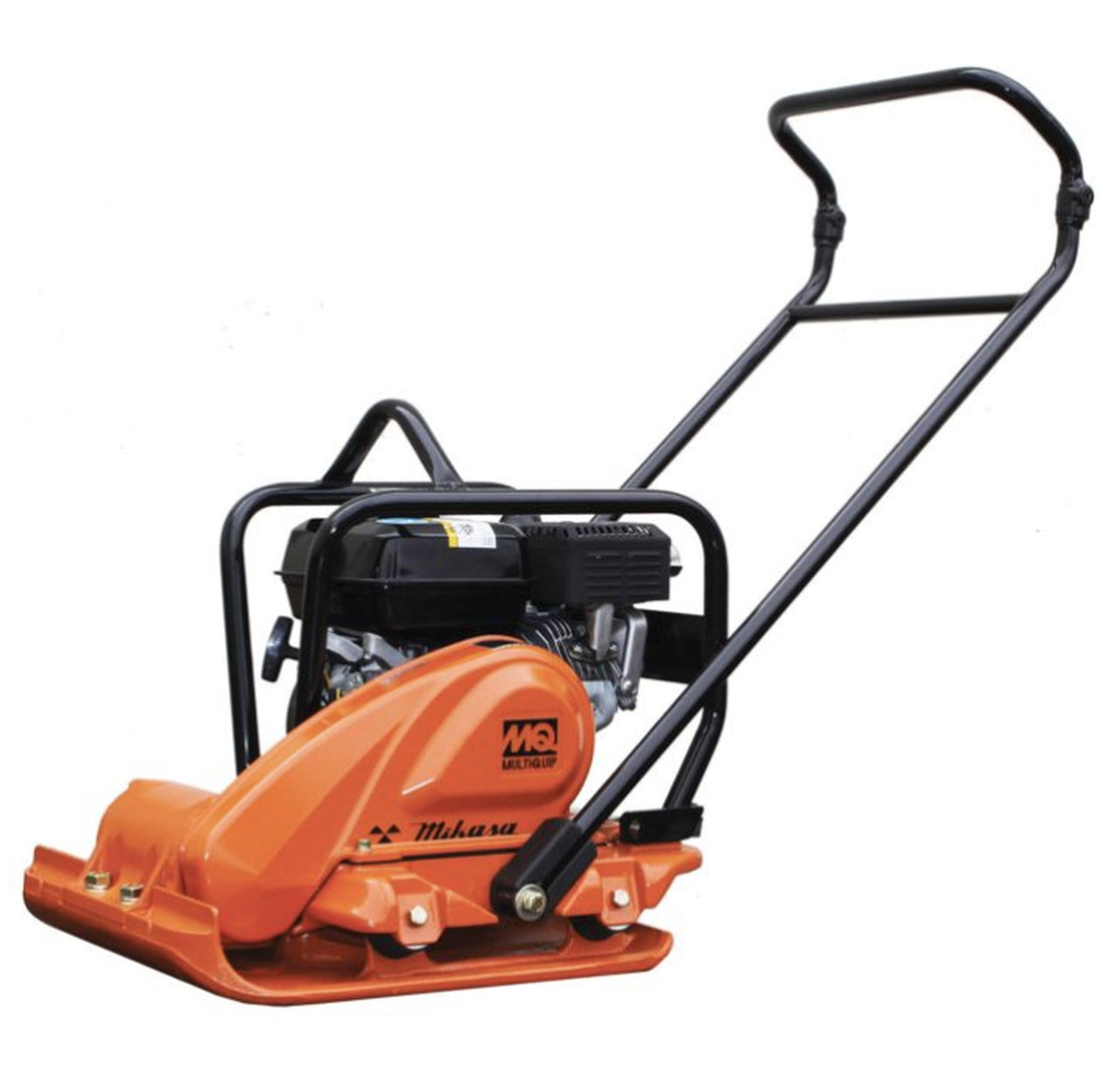

Multiquip Mikasa MVC88VTH Plate Compactor with 3,420 lb Force, Honda GX160 Engine. 20" Wide. No water Tank

Multiquip Mikasa MVC88VTH Plate Compactor with 3,420 lb Force, Honda GX160 Engine. 20" Wide. No water Tank

$0.00
$0.00
Sale Sold out
  • Multiquip Mikasa MVC88VTH Plate Compactor with 3,420 lb Force, Honda GX160 Engine. 20" Wide. No water Tank
1 1
MultiQuip

Multiquip Mikasa MVC88VTH Plate Compactor with 3,420 lb Force, Honda GX160 Engine. 20" Wide. No water Tank

Multiquip Mikasa MVC88VTH Plate Compactor with 3,420 lb Force, Honda GX160 Engine. 20" Wide. No water Tank

Danse #: MVC88VTH
Mfr #: MVC88VTH
$0.00
$0.00
Sale Sold out
Call For Price
View full details

Description

The best selling plate just got better! The new MVC88 now features a single cast baseplate and eccentric housing to enhance plate durability, serviceability and performance. An hour/tachometer to help measure runtime and engine rpm is now a standard feature. The plate is even easier to transport with the new wheel kit design. All this combined with an advanced anti-vibration handle make the MVC88 the newest and most technically advanced plate compactors on the market.

  • Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
  • Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
  • Single cast baseplate and eccentric housing lowers center of gravity and increases travel speed by 12% for greater productivity.
  • Hour/tachometer measures runtime and engine rpm.
  • Tubular steel roll bar protects engine components and provides central lifting point.
  • Sealed belt cover keeps dirt and rocks out extending belt life.
  • Open base plate design makes for easier removal of dirt and rock build-up.
  • Cog-tooth belt drive enables longer life compared to conventional V-belts.
  • Optional urethane plate attachment for use on paving stones and brick pavers (UPA88T).
  • Optional transport wheel kit WHL88T for serial number T2A9197 and below.  WHL88TC for serial number T2A9198 and above.


Unit Specifications

Centrifugal Force 3372 lbf 15 kN
Exciter Speed 6000 VPM
Plate Size 19.7 x 20.7 in
500 x 525 mm
Max Forward Speed
Per Min.		 82 ft 25 m
Fuel Consumption
Per Hour		 0.31 gal 1.17 L
Dimensions & Weights

Overall Length 41.75 in 1060 mm
Overall Width 19.75 in 502 mm
Overall Height 37 in 940 mm
Shipping Dimensions 38 x 22 x 29 in
965 x 559 x 737 mm
Operating Weight 207 lb 94 kg
Shipping Weight 225 lb 102 kg
Notice: Features and equipment specifications are subject to change without notice.


Warranty

Danse Equipment Company assures warranty of one year from the date of purchase on any products purchased, against defects in workmanship or materials under normal use, unless otherwise specified. Furthermore, Danse Equipment will pass any additional manufacturer’s warranty privileges to the purchaser. Any equipment damaged or abused will be voided of warranty and will not be covered. For information on a specific manufacturer’s warranty, please contact us at [email protected] with the date, invoice and product details.
