Makita MAC2400 Air Compressor Parts

MAC2400 is popular for its “Big Bore” cylinder and piston setup. It delivers solid output without needing to run at high RPMs, which helps keep the compressor quieter and more durable on tough job sites. However, even the most durable cast iron pumps need maintenance eventually. At DanseUSA, we offer genuine Makita MAC2400 air compressor parts, from internal pump components to external service items to help you repair leaks, rebuild the pump, or keep your unit performing reliably.

Parts Overview

Our collection covers the complete schematic for this 2.5 HP unit. Since the MAC2400 runs on an oil-lubricated system, good seals and proper lubrication really matter. We stock everything from small O-rings to motor windings, so you can get the right MAC2400 parts without guessing. Just use our part breakdowns to quickly match the exact screw, valve, or cover you need.

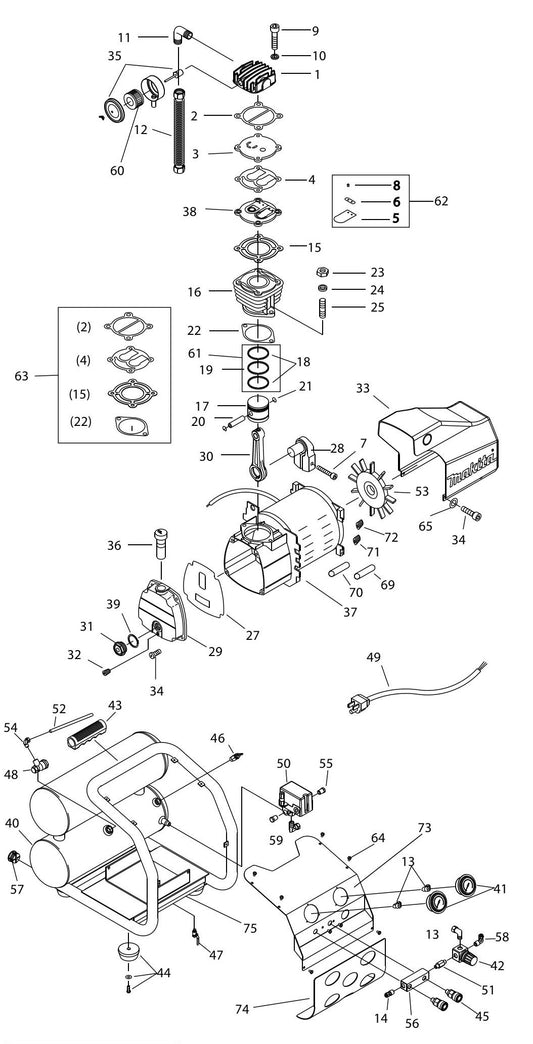

MAC2400 Air Compressor Assembly Parts

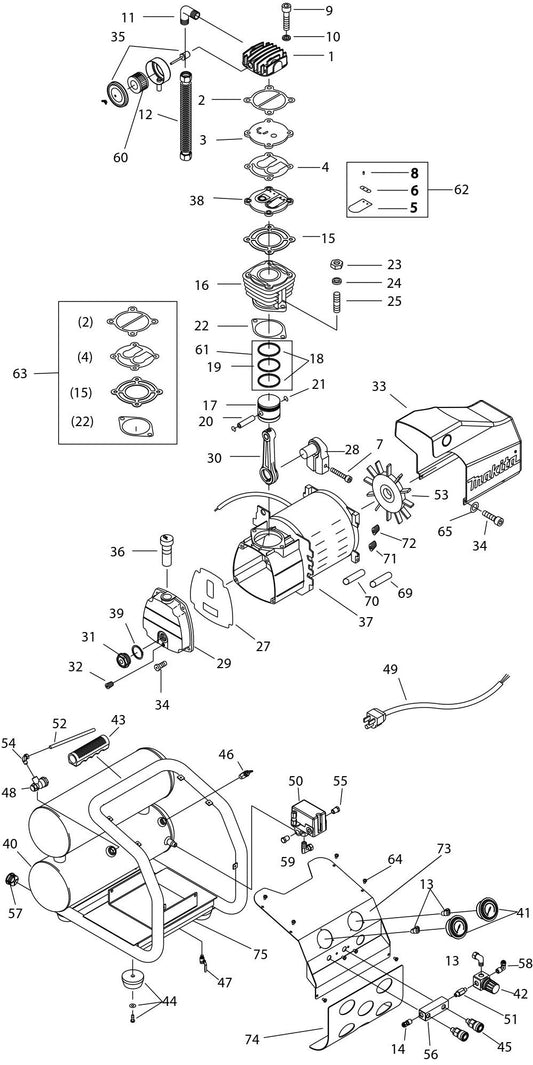

Most MAC2400 repairs start with the main assembly diagram, which covers the motor/pump housing and the tank. Below are the essential Makita MAC2400 air compressor parts commonly needed for bigger fixes:

  • Pump internals: The core moving parts - like the piston, cylinder, and connecting rod - that do the actual compressing.

  • Head + valve parts: Components like the cylinder head, gaskets, and valve plate that help the pump seal properly and build pressure.

  • Cooling + motor parts: Items such as the motor fan and related hardware that keep the motor running cooler and smoother.

  • Control components: Pressure switches, regulators, and discharge tubes that control airflow from the tank to your tools.

Why Buy From DanseUSA

  • Authorized Dealer: We are an authorized retailer, selling genuine MAC2400 Air Compressor Parts by Makita. This helps reduce the risk of aftermarket fitment issues.

  • Fast Shipping: We know you need your compressor back up and running fast. That’s why we ship parts quickly, either from our warehouse or directly from the manufacturer to reduce downtime.

  • Technical Accuracy: Our parts catalog follows the official Makita diagrams and breakdowns, so it’s easier to find and order the correct MAC2400 parts the first time.

  • Service & Repair Support: DanseUSA has been helping contractors since 1981, offering not just parts sales, but real support and repair guidance when you need it.

FAQs

What type of oil should I use for the MAC2400?

The MAC2400 uses an oil-lubricated pump, so it requires regular non-detergent air compressor oil. Makita’s recommended option is 181122-A (181122A) Compressor Oil, 1 Quart, which is for the Makita MAC2400. If you’ve replaced internal parts like the piston or connecting rod, do a full oil change before putting the compressor back into service.

Why is my MAC2400 leaking air when it shuts off?

This is often caused by a faulty check valve or a worn tank drain valve. When the check valve fails, back pressure from the tank can leak through the unloader valve. Replacing the affected part usually resolves the issue.

Do you sell the air filter element separately?

Yes. A clogged air filter can reduce performance and make the compressor run louder. We carry the 171006-E (171006E) Air Filter Element for the Makita MAC2400, so you can replace it and keep the intake clean and airflow consistent.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
