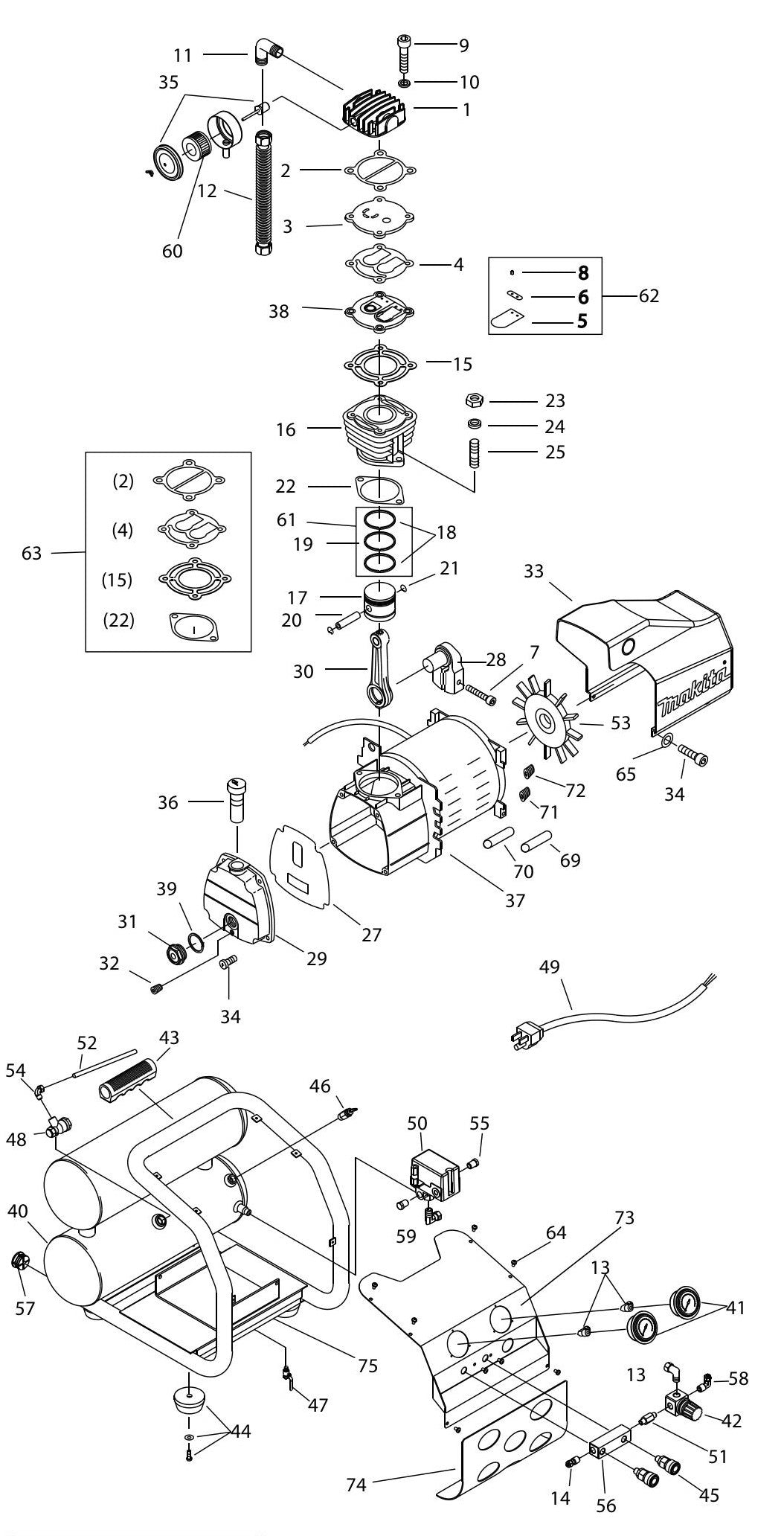

MAC2400 Air Compressor Assembly Parts

MAC2400 Air Compressor Assembly Parts

  • MAC2400 Air Compressor Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
101009-E 101009E Cylinder Head fits Makita MAC2400 Air Compressor
$30.71
2
211001-E 211001E Valve Seat To Head Gasket fits Makita MAC2400 Air Compressor
$11.96
3
104001-E 104001E Inlet Valve Seat fits Makita MAC2400 Air Compressor
$20.13
4
212001-E 212001E Inlet & Exhaust Valve Seat Gasket fits Makita MAC2400 Air Compressor
$11.96
5
125001-E 125001E Inlet & Exhaust Valve Plate fits Makita MAC2400 Air Compressor
$11.96
6
127001-E 127001E Inlet & Exhaust Spring Plate fits Makita MAC2400 Air Compressor
$11.96
7
352106-E 352106E Crankshaft Bolt fits Makita MAC2400 Air Compressor
$11.96
8
126001-E 126001E Valve Plate Screw fits Makita MAC2400 Air Compressor
$5.75
9
352087-E 352087E Cylinder Head Bolt fits Makita MAC2400 Air Compressor
$5.75
10
382011-E 382011E Spring Washer For Head Bolt fits Makita MAC2400 Air Compressor
$3.85
11
151404-E 151404E Exhaust Elbow fits Makita MAC2400 Air Compressor
$11.96
12
230076S-E 230076SE Discharge Tube Assembly fits Makita MAC2400 Air Compressor
$34.16
13
151001-E 151001E Unloading Elbow fits Makita MAC2400 Air Compressor
$11.96
14
441025-E 441025E Nipple fits Makita MAC2400 Air Compressor
$11.96
15
213001-E 213001E Valve Seat To Cylinder Gasket fits Makita MAC2400 Air Compressor
$11.96
16
201017-E 201017E Cylinder fits Makita MAC2400 Air Compressor
$51.90
17
203011-E 203011E Piston fits Makita MAC2400 Air Compressor
$34.16
18
206003-E 206003E Compression Ring fits Makita MAC2400 Air Compressor
$11.96
19
207003-E 207003E Oil Control Ring fits Makita MAC2400 Air Compressor
$10.24
20
204003-E 204003E Piston Pin fits Makita MAC2400 Air Compressor
$11.96
21
205001-E 205001E Piston Pin Snap Ring fits Makita MAC2400 Air Compressor
$11.96
22
214001-E 214001E Cylinder To Crankcase Gasket fits Makita MAC2400 Air Compressor
$11.96
23
371005-E 371005E Set Nut (Cylinder To Crankcase) fits Makita MAC2400 Air Compressor
$11.85
24
382005-E 382005E Spring Washer (Cyl To Crankcase) fits Makita MAC2400 Air Compressor
$11.96
25
358001-E 358001E Double Head Screw fits Makita MAC2400 Air Compressor
$6.79
27
215001-E 215001E Crankcase Cover Gasket fits Makita MAC2400 Air Compressor
$11.96
28
302001-E 302001E Crankshaft fits Makita MAC2400 Air Compressor
$49.45
29
304015-E 304015E Crankcase Cover fits Makita MAC2400 Air Compressor
$27.26
31
321001-E 321001E Oil Sight Gauge fits Makita MAC2400 Air Compressor
$11.96
32
360001-E 360001E Oil Draining Plug fits Makita MAC2400 Air Compressor
$11.96
33
433011-E 433011E Motor Cover fits Makita MAC5200 Air Compressor
$27.26
34
352071-E 352071E Motor / Crankcase Cover Bolt fits Makita MAC2400 Air Compressor
$5.75
35
170013-E 170013E Air Filter Assembly fits Makita MAC2400 Air Compressor
$32.43
36
324003-E 324003E Oil Filler/Crankcase Breather fits Makita MAC2400 Air Compressor
$11.96
37
251332-E 251332E Electric Motor / Crankcase fits Makita MAC2400 Air Compressor
$310.00
38
114001-E 114001E Exhaust Valve Seat fits Makita MAC2400 Air Compressor
$27.26
39
217001-E 217001E Oil Gauge Gasket fits Makita MAC2400 Air Compressor
$11.96
40
401124-E 401124E Air Tank fits Makita MAC2400 Air Compressor
Call for Price call for price call for price
41
411029-E 411029E Pressure Gauge fits Makita MAC2400 Air Compressor
$18.75
42
410028-E 410028E Regulator fits Makita MAC2400 Air Compressor
$62.30
43
435016-E 435016E Rubber Handle fits Makita MAC2400 Air Compressor
$11.96
44
434006-E 434006E Tank Foot Assembly fits Makita MAC2400 Air Compressor
$11.96
45
447013-E 447013E Quick Coupler (1/4”) fits Makita MAC2400 Air Compressor
$5.75
46
407001-E 407001E Safety Valve (1/4”) fits Makita MAC2400 Air Compressor
$18.75
47
413008-E 413008E Drain Cock fits Makita MAC2400 Air Compressor
$11.96
48
409004-E 409004E Check Valve fits Makita MAC2400 Air Compressor
$32.43
49
452005-E 452005E Power Cord fits Makita MAC2400 Air Compressor
$18.75
50
412024-E 412024E Pressure Switch fits Makita MAC2400 Air Compressor
$51.90
51
441001-E 441001E Regulator Nipple fits Makita MAC5200 Air Compressor
$11.96
52
228038-E 228038E Unloading Tube Assembly(1/4”) fits Makita MAC2400 Air Compressor
$11.96
53
431005-E 431005E Motor Fan fits Makita MAC2400 Air Compressor
$11.96
54
151002-E 151002E Unloading Elbow fits Makita MAC2400 Air Compressor
$11.96
55
360002-E 360002E Plug For Pr.Switch Manifold fits Makita MAC2400 Air Compressor
$11.96
56
421006-E 421006E Manifold Block fits Makita MAC2400 Air Compressor
$27.26
57
439009-E 439009E Handle Plug fits Makita MAC2400 Air Compressor
$11.96
58
151209-E 151209E Elbow fits Makita MAC2400 Air Compressor
$11.96
59
151209-E 151209E Elbow fits Makita MAC2400 Air Compressor
$11.96
60
171006-E 171006E Air Filter (Element Only) fits Makita MAC2400 Air Compressor
$20.47
61
RK2400-E RK2400E Ring Kit (#18 And 19) fits Makita MAC2400 Air Compressor
$32.43
62
VK2400-E VK2400E Valve Kit (#5,6,And 8) fits Makita MAC2400 Air Compressor
$44.39
63
GK2400-E GK2400E Gasket Kit (#2,4,15,And 22) fits Makita MAC2400 Air Compressor
$23.92
64
365003-E 365003E Bolt For Console fits Makita MAC2400 Air Compressor
$5.75
65
382004-E 382004E Spring Washer For Motor Cover fits Makita MAC2400 Air Compressor
$3.85
69
460008-E 460008E Start Capacitor fits Makita MAC2400 Air Compressor
$49.45
70
462009-E 462009E Run Capacitor fits Makita MAC2400 Air Compressor
$60.80
71
458003-E 458003E Overload Switch fits Makita MAC2400 Air Compressor
$31.74
72
459001-E 459001E Centrifugal Switch fits Makita MAC2400 Air Compressor
$27.26
73
488002-E 488002E Control Panel fits Makita MAC2400 Air Compressor
$66.70
74
488003-E 488003E Guard Plate fits Makita MAC2400 Air Compressor
$60.80
75
488004-E 488004E Base Plate fits Makita MAC2400 Air Compressor
$60.80
-
181122-A 181122A Compressor Oil (1 Quart) fits Makita MAC2400 Air Compressor
$15.41
30
316001-E 316001E Connecting Rod fits Makita MAC2400 Air Compressor
$27.26
View full details

Frequently asked questions

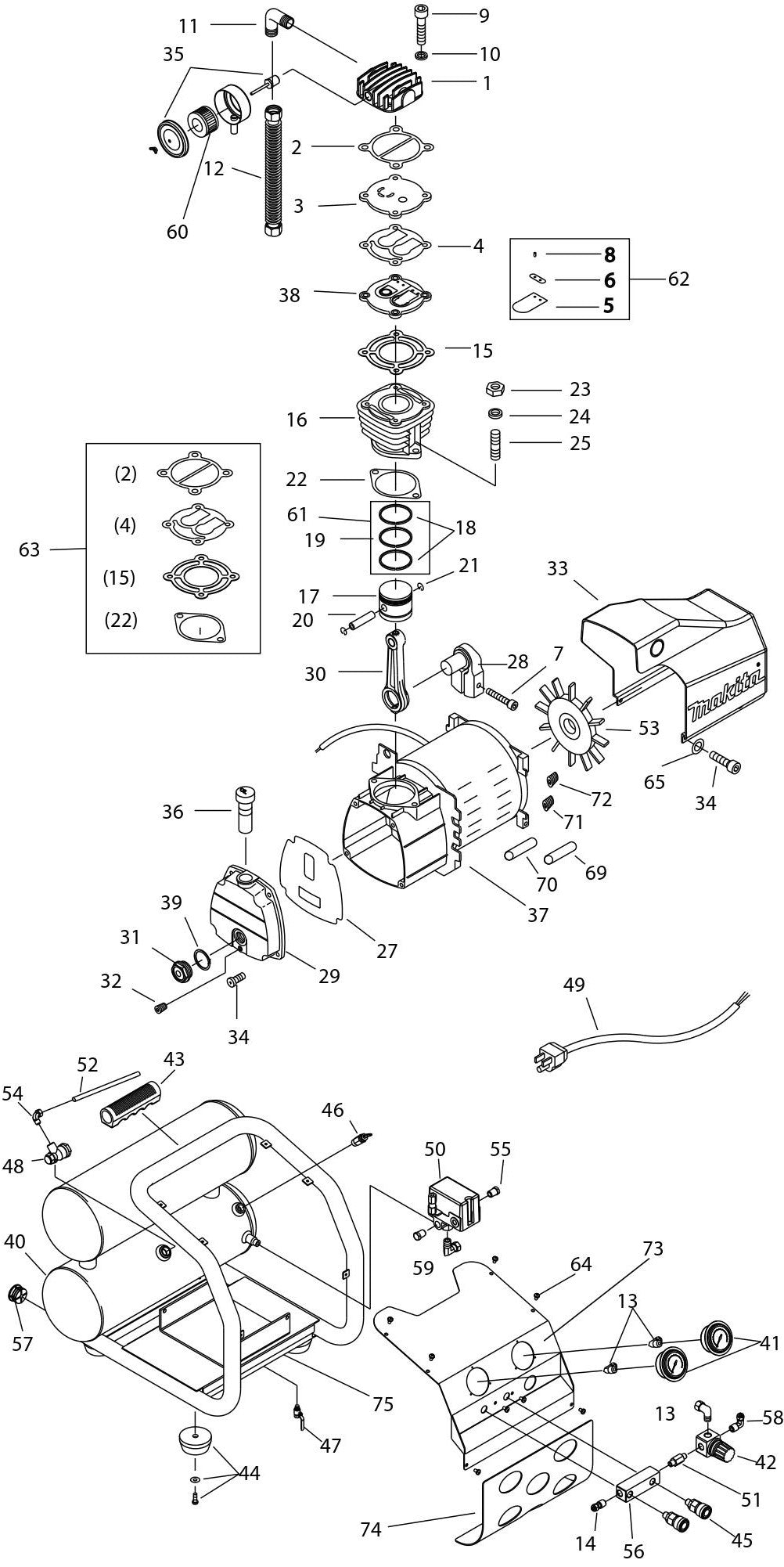

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
