0601121039 Bosch Un. 2-Speed Drill Bosch Electric Drill Parts Diagram

0601121039 Bosch Un. 2-Speed Drill Bosch Electric Drill Parts Diagram

  • 0601121039 Bosch Un. 2-Speed Drill Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
13
1601110058 Reference Plate by Bosch
$3.91
54
2600910001 Needle Bushing by Bosch
$3.91
19
3600703011 Cord Protector by Bosch
$4.89
21
1601302014 Fastening Clamp by Bosch
$3.91
74
2910021118 Cheese Head Screw by Bosch
$4.89
76
2910211019 Sheet Metal Screw by Bosch
$4.89
26
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
8
1604652006 Spiral Spring by Bosch
$3.91
46
1600100631 Shim | Genuine OEM Bosch Part
$3.91
75
2910001116 Cheese Head Screw by Bosch
$4.89
58
2916650014 C-clip | Genuine OEM Bosch Part
$3.91
6
1604336017 Brush Holder by Bosch
$7.01
41
1903230009 Ball | Genuine OEM Bosch Part
$3.91
73
2910211011 Sheet Metal Screw by Bosch
$4.89
38
1601015013 Plate | Genuine OEM Bosch Part
$3.91
44
1600910013 Needle Bearing by Bosch
$6.11
78
2910021154 Screw | Genuine OEM Bosch Part
$3.91
67
1603435013 Screw | Genuine OEM Bosch Part
$3.91
16
3605500059 Cover | Genuine OEM Bosch Part
$17.61
801
3607014012 Brush Set | Genuine OEM Bosch Part
$27.97
72
2914201508 Screw | Genuine OEM Bosch Part
$3.91
69
2914201529 Torx Oval-head Screw by Bosch
$3.91
View full details

Frequently asked questions

How do I use this diagram?

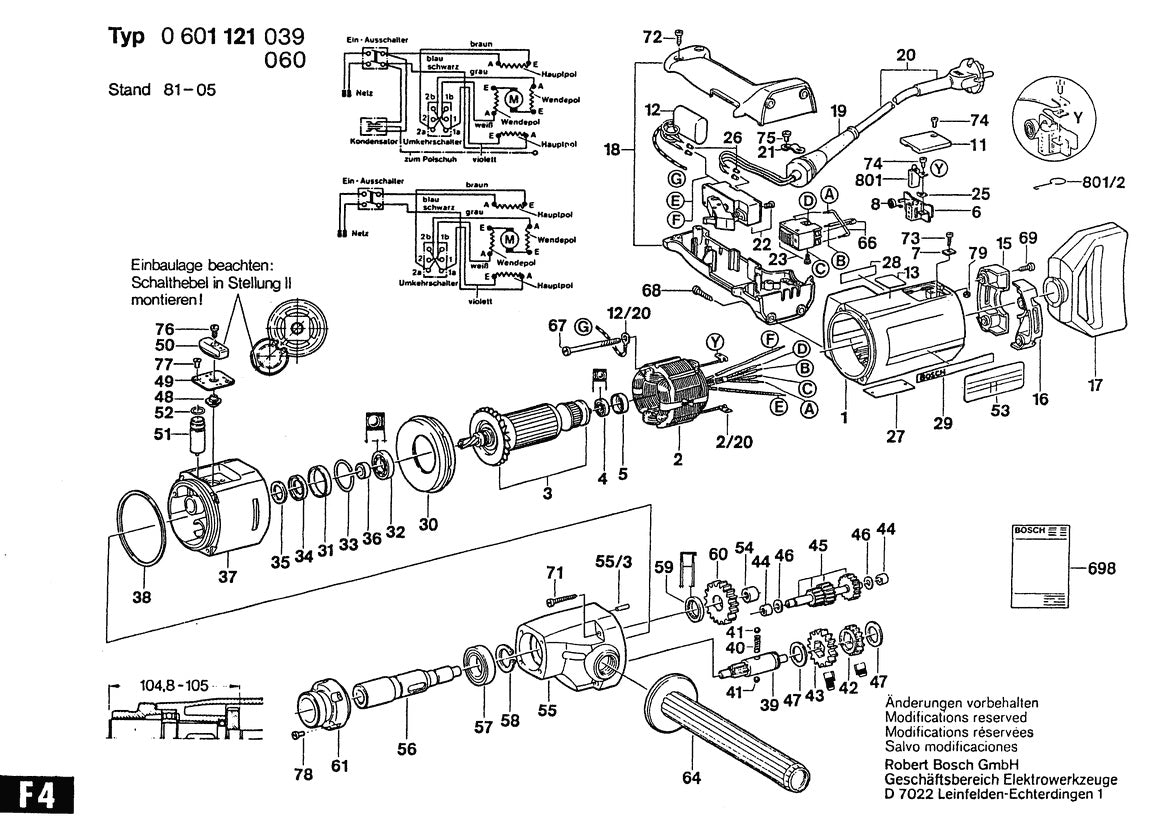

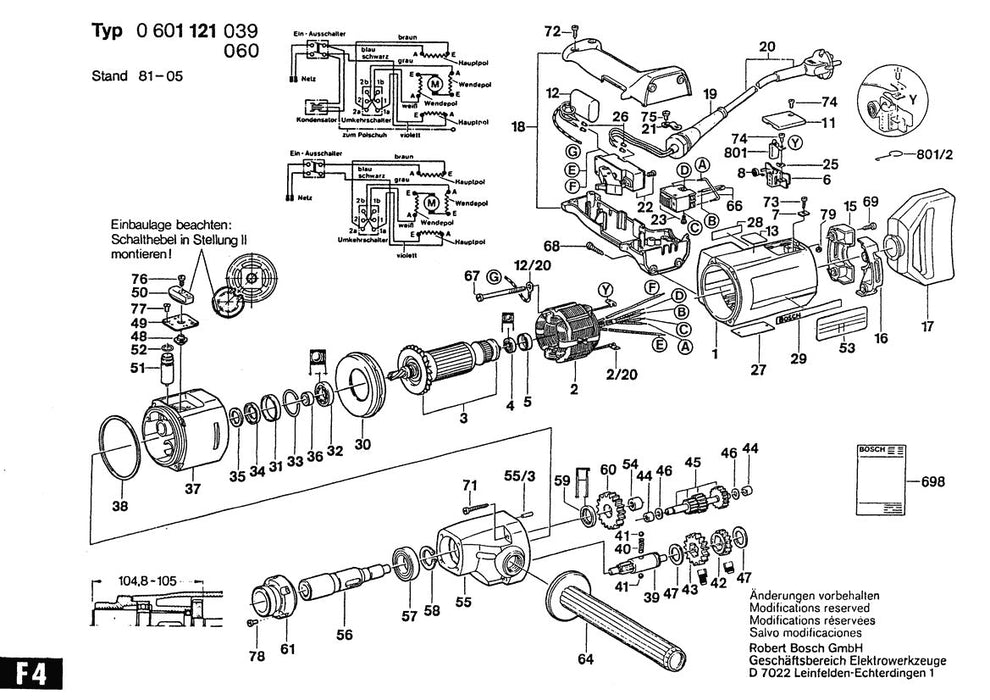

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
