060118A739 Bosch Electric Drill Parts Diagram

060118A739 Bosch Electric Drill Parts Diagram

Skip to product information
1 of 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
7
1601302013 Fastening Clamp by Bosch
$3.91
13
1619P01511 Ball Bearing by Bosch
$4.89
14
1600905028 Deep-groove Ball Bearing by Bosch
$12.57
23
1618B00802 Locking Cover by Bosch
$4.89
38
1600206020 Rubber Ring | Genuine OEM Bosch Part
$4.89
39
1600206030 Rubber Ring | Genuine OEM Bosch Part
$3.91
44
1601334009 Pickup Clip | Genuine OEM Bosch Part
$3.91
64
1603435042 Self-cutting Screw by Bosch
$3.91
65
2910611020 Sheet Metal Screw by Bosch
$4.89
103
2600210003 O-ring | Genuine OEM Bosch Part
$3.91
104
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
808
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
816
1604336048 Brush Holder by Bosch
$7.08
835
1606610127 Fan | Genuine OEM Bosch Part
$3.91
846
1607000342 Retaining Washer by Bosch
$3.91
867
3607031560 Terminal | Genuine OEM Bosch Part
$19.48
895
1615430019 Oil Reservoir by Bosch
$75.21
View full details

Frequently asked questions

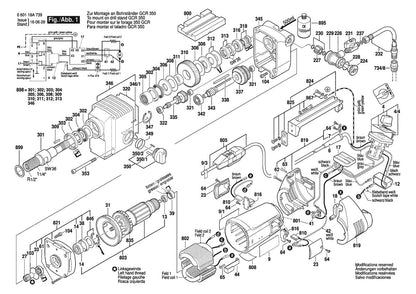

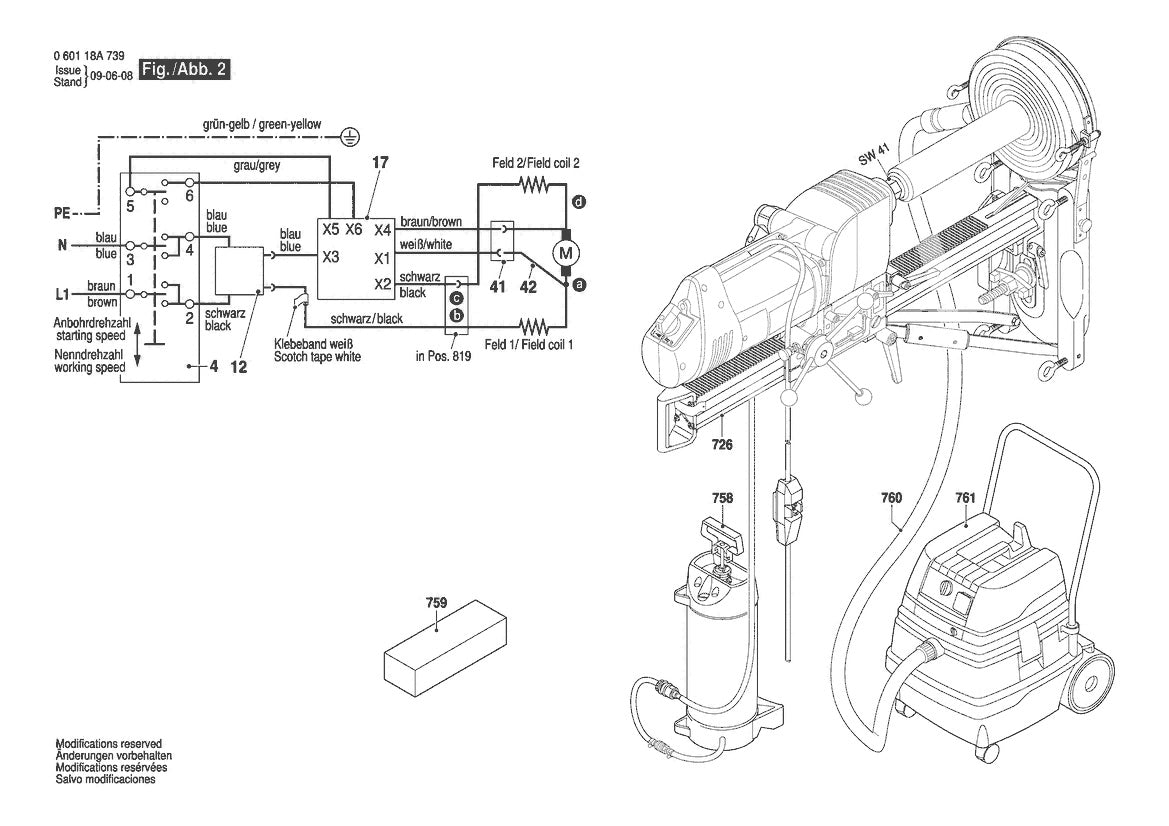

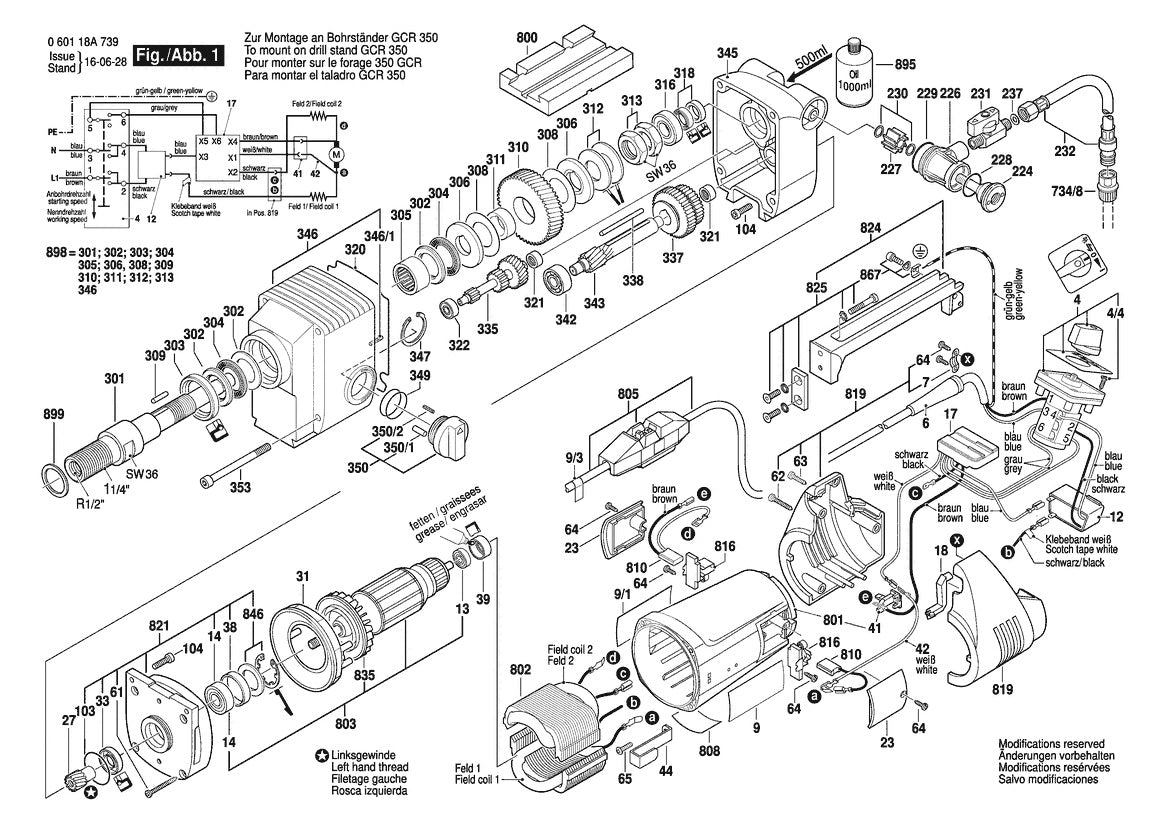

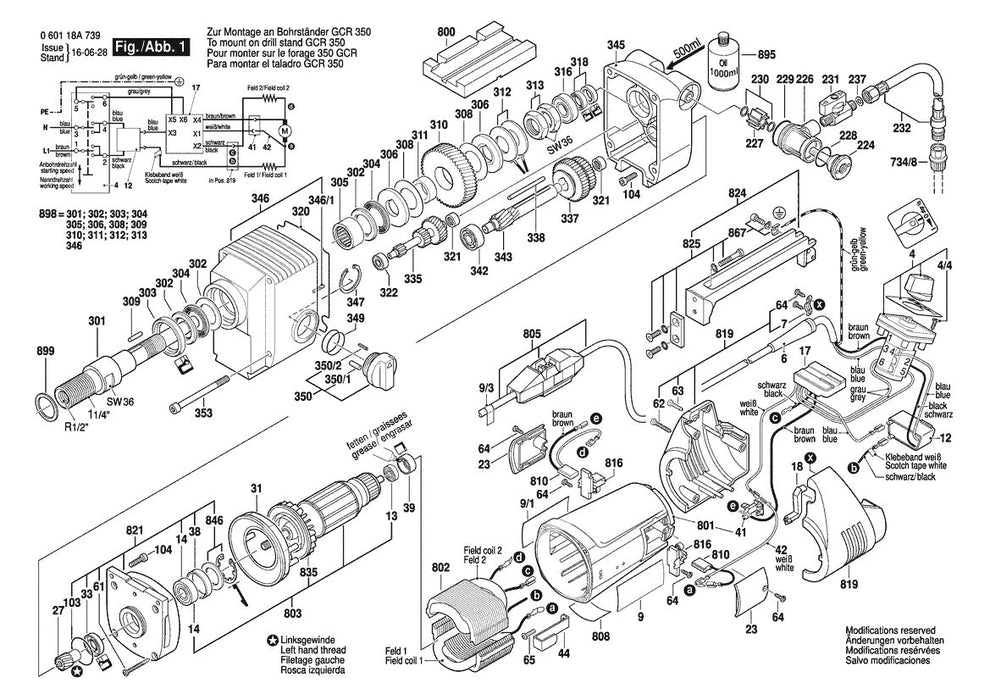

How do I use this diagram?
