0601270039 Bosch Belt Sander Bosch Sander Parts Diagram

0601270039 Bosch Belt Sander Bosch Sander Parts Diagram

  • 0601270039 Bosch Belt Sander Bosch Sander Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
43
3604460555 Cord | Genuine OEM Bosch Part
$10.84
49
2916650001 C-clip | Genuine OEM Bosch Part
$3.91
43
2916650001 C-clip | Genuine OEM Bosch Part
$3.91
27
1601110058 Reference Plate by Bosch
$3.91
49
2916681005 Spring Lock Washer by Bosch
$4.89
39
2916681005 Spring Lock Washer by Bosch
$4.89
49
2910110120 Slotted Pan-head Screw by Bosch
$3.91
54
2910110120 Slotted Pan-head Screw by Bosch
$3.91
49
2918660004 Washer | Genuine OEM Bosch Part
$3.91
46
2918660004 Washer | Genuine OEM Bosch Part
$3.91
49
1900023006 Woodruff Key Din 6888-4x5-st60 by Bosch
$3.91
53
1900023006 Woodruff Key Din 6888-4x5-st60 by Bosch
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

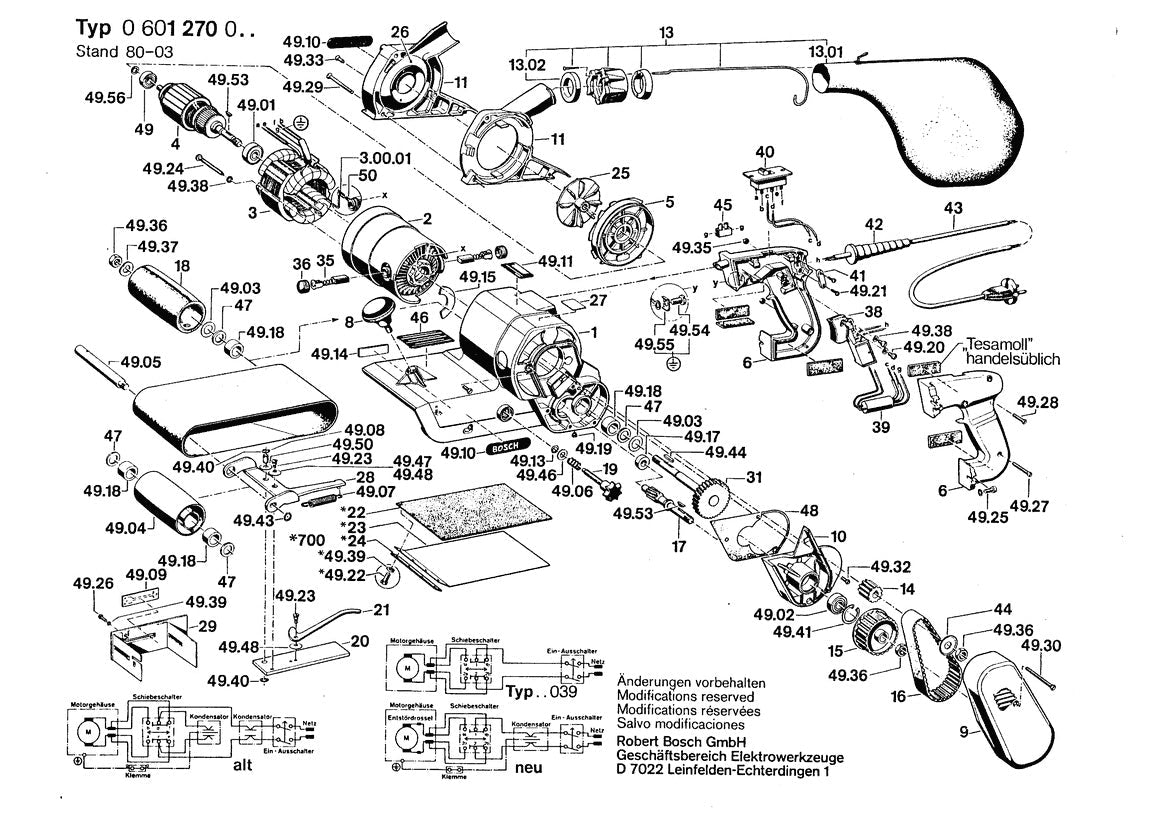

View the Bosch 0601270039 Bosch Belt Sander parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
