0601432001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

0601432001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

  • 0601432001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
6
2600703011 Grommet | Genuine OEM Bosch Part
$3.91
17
2910211019 Sheet Metal Screw by Bosch
$4.89
21
2610912760 Sheet Metal Screw by Bosch
$3.91
50
2600100569 Shim | Genuine OEM Bosch Part
$3.91
57
1903230007 Ball | Genuine OEM Bosch Part
$4.89
6
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
62
1903230013 Ball | Genuine OEM Bosch Part
$3.91
39
2600914010 Needle Bushing by Bosch
$3.91
27
1900905019 Ball Bearing by Bosch
$17.96
5
1607000227 Cord | Genuine OEM Bosch Part
$28.24
64
2600210001 O-ring | Genuine OEM Bosch Part
$3.91
71
2916690004 Lock Washer | Genuine OEM Bosch Part
$3.91
8
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

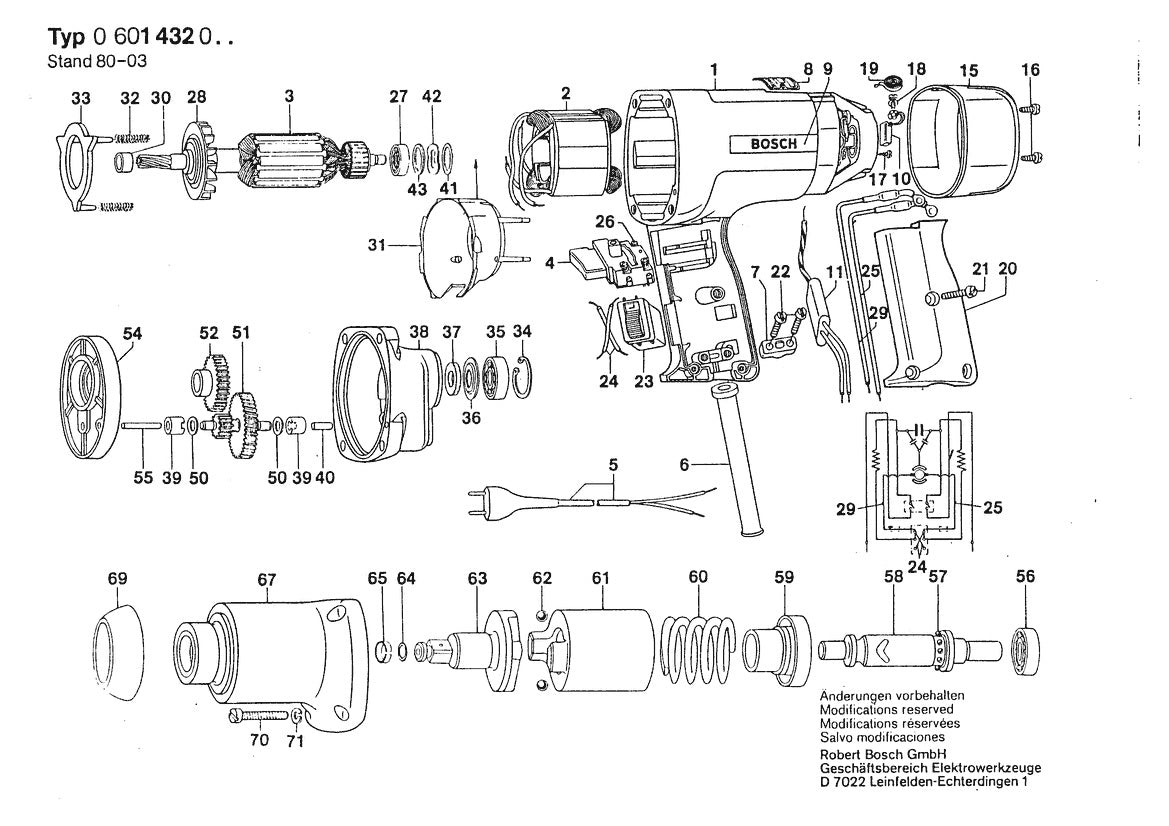

View the Bosch 0601432001 Bosch Impact Wrench parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
