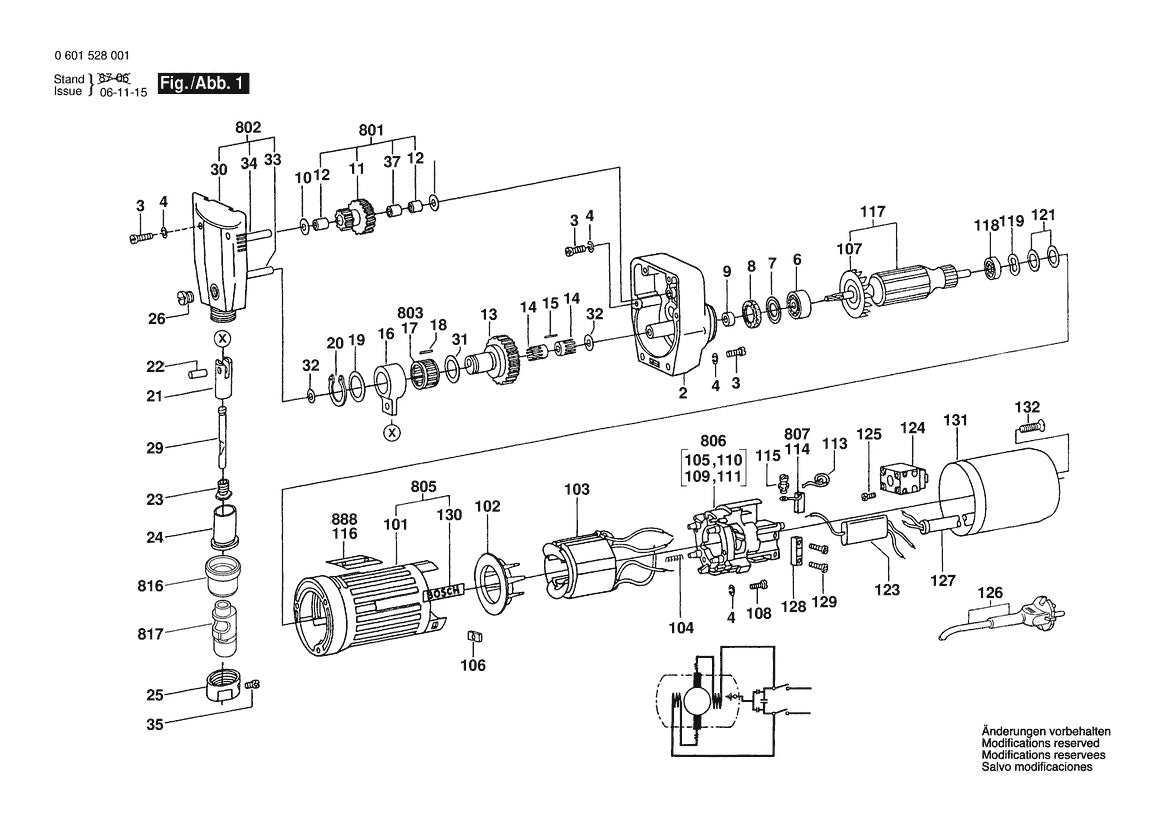

0601528035 Bosch Nibbler Bosch Nibbler Parts Diagram

0601528035 Bosch Nibbler Bosch Nibbler Parts Diagram

  • 0601528035 Bosch Nibbler Bosch Nibbler Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
125
2603410001 Cheese Head Screw by Bosch
$4.89
10
2600100628 Shim | Genuine OEM Bosch Part
$3.91
127
2600703011 Grommet | Genuine OEM Bosch Part
$3.91
108
2910021126 Cheese Head Screw by Bosch
$3.91
129
2910211019 Sheet Metal Screw by Bosch
$4.89
3
2910021122 Cheese Head Screw by Bosch
$3.91
4
2916681005 Spring Lock Washer by Bosch
$4.89
127
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
22
2603100003 Bearing Pin | Genuine OEM Bosch Part
$3.91
23
2603455006 Union Screw | Genuine OEM Bosch Part
$3.91
24
2600422005 Bushing | Genuine OEM Bosch Part
$19.87
21
2603104001 Piston | Genuine OEM Bosch Part
$69.56
118
1900905019 Ball Bearing by Bosch
$17.96
106
2603320001 Square Nut | Genuine OEM Bosch Part
$3.91
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
