06019A9113 Bosch Impact Wrench Parts Diagram

06019A9113 Bosch Impact Wrench Parts Diagram

  • 06019A9113 Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
101
2609110201 Torx Flat-head Screw by Bosch
$3.91
46
1609280477 Spring | Genuine OEM Bosch Part
$3.91
48
2609170121 Sealing Ring by Bosch
$3.91
102
2609110950 Torx Flat-head Screw by Bosch
$3.91
103
2609110835 Nut | Genuine OEM Bosch Part
$3.91
105
2609110834 Screw | Genuine OEM Bosch Part
$3.91
804
1609280478 Contact Retainer by Bosch
$17.61
100
2609110956 Clip | Genuine OEM Bosch Part
$8.10
651
1607A350MB Slide-in Accu Package 18v, 1,5 by Bosch
$70.27
1
2609101008 Housing, Blue by Bosch
$27.69
4
1607233482 Electronics Module by Bosch
$101.21
5
2609101009 Adjusting Lever by Bosch
$3.91
8
2609133254 Warning Plate by Bosch
$3.91
9
2609133253 Manufacturer's Nameplate by Bosch
$3.91
45
2609199365 Gear Box | Genuine OEM Bosch Part
$99.23
802
2609199421 Dc Motor 18v by Bosch
$59.61
880
2609133252 Nameplate | Genuine OEM Bosch Part
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

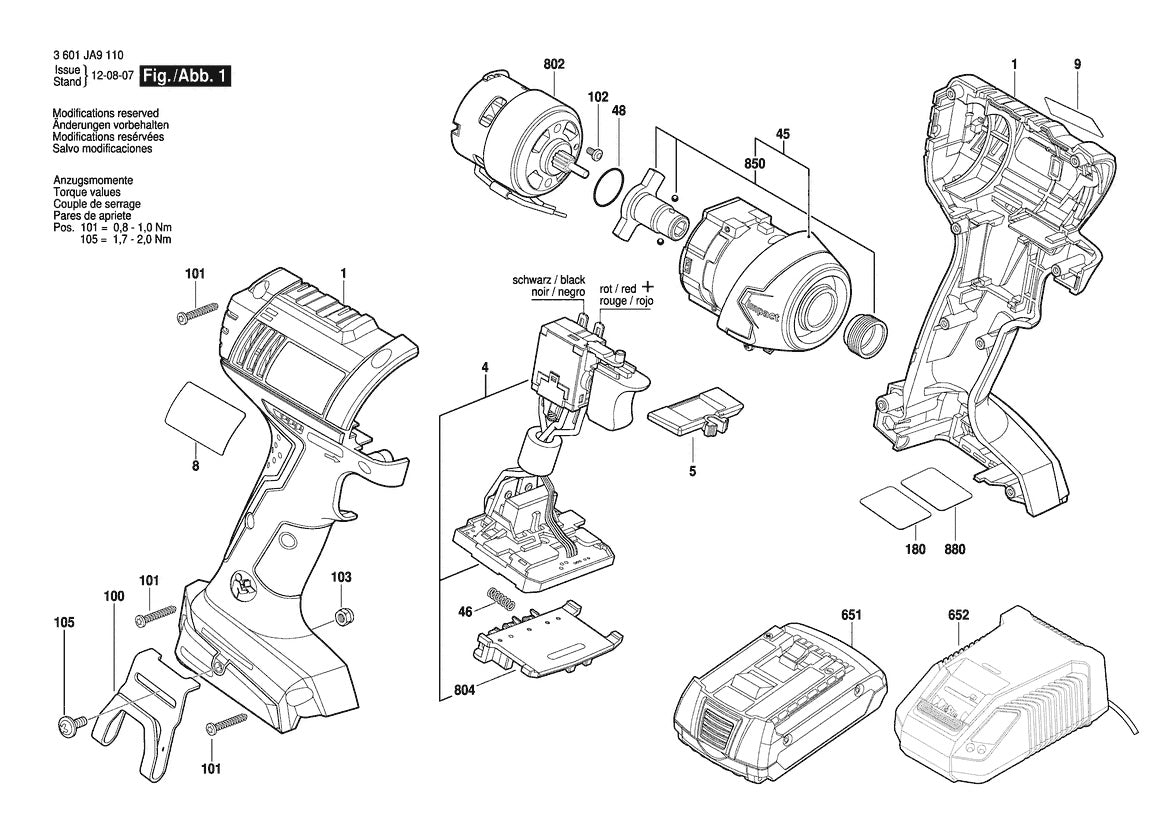

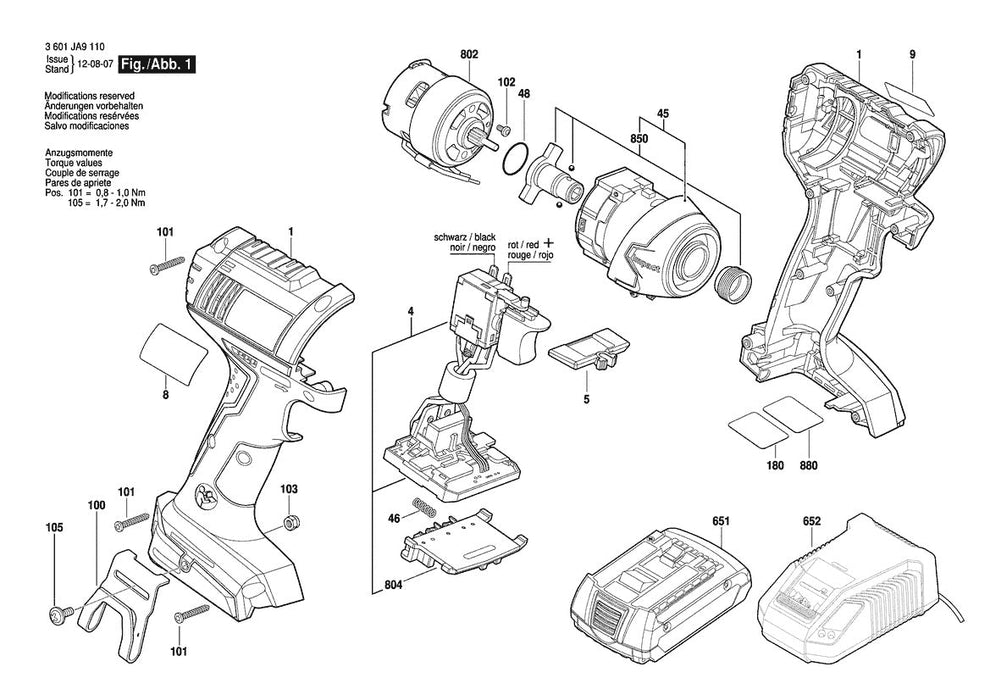

View the Bosch 06019A9113 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
