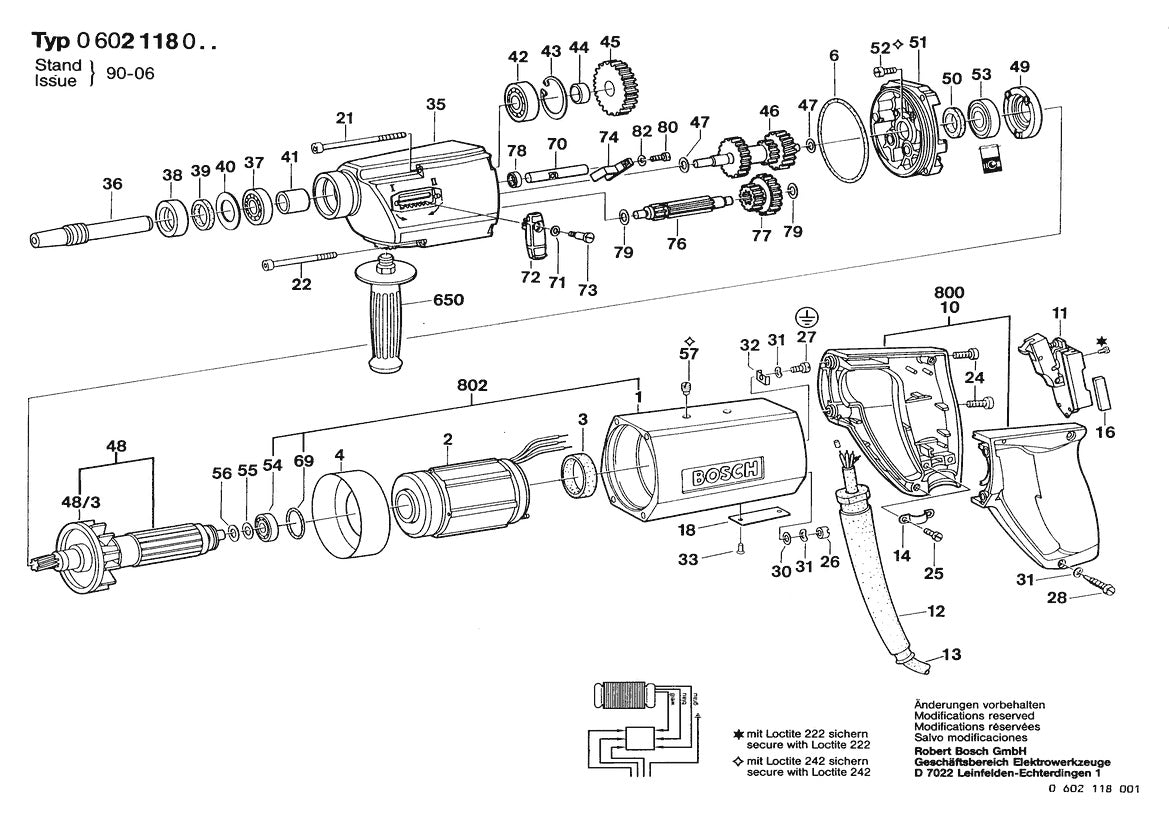

0602118005 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram

0602118005 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram

  • 0602118005 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
28
2910611020 Sheet Metal Screw by Bosch
$4.89
43
2916660014 C-clip | Genuine OEM Bosch Part
$3.91
52
2910021126 Cheese Head Screw by Bosch
$3.91
79
1600100631 Shim | Genuine OEM Bosch Part
$3.91
22
2910141172 Hex-socket-head Cap Screw by Bosch
$3.91
650
1602025030 Auxiliary Handle by Bosch
$19.68
25
2910001116 Cheese Head Screw by Bosch
$4.89
82
2916681005 Spring Lock Washer by Bosch
$4.89
56
1600100632 Shim | Genuine OEM Bosch Part
$3.91
54
1610900025 Deep-groove Ball Bearing by Bosch
$16.08
32
3601321001 Clamping Saddle by Bosch
$3.91
31
3600150006 Spring Washer by Bosch
$3.91
6
1600210005 O-ring (66x3mm) by Bosch
$3.91
53
2600905013 Ball Bearing by Bosch
$10.73
54
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
24
2910141158 Hex Socket Head Socket Screw by Bosch
$3.91
View full details
