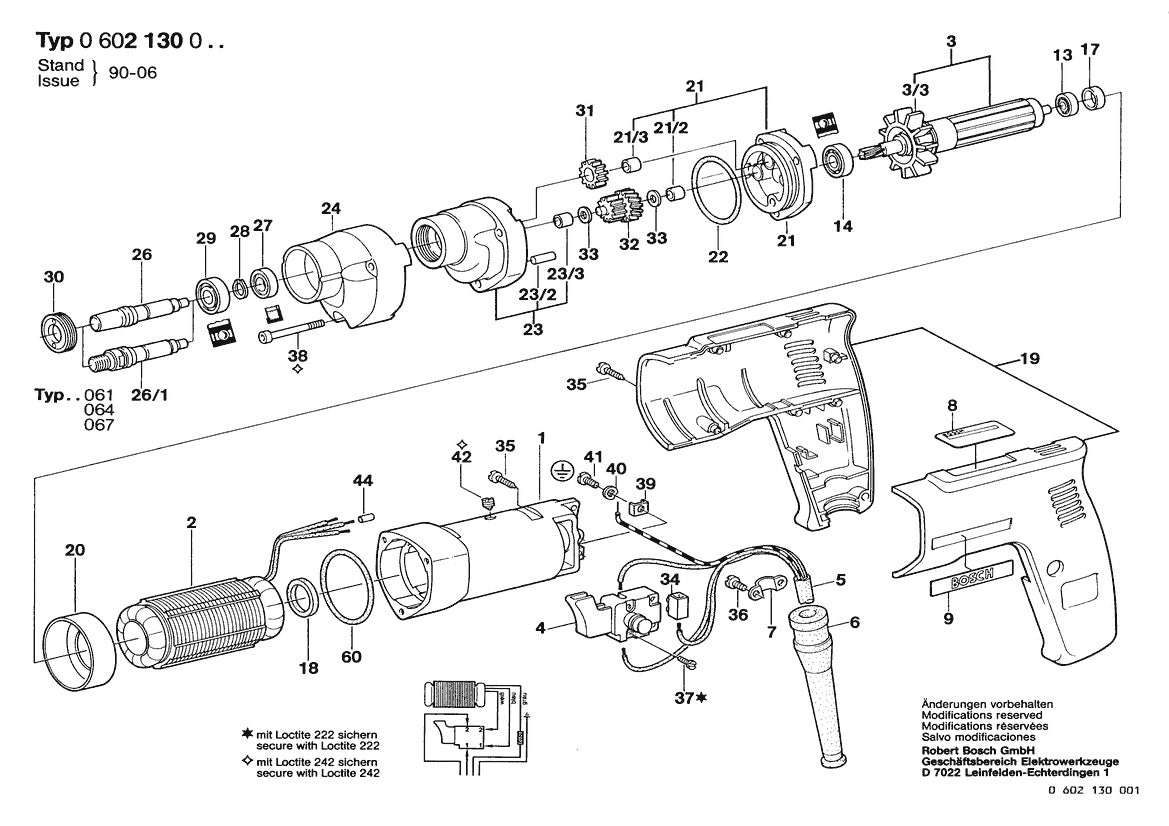

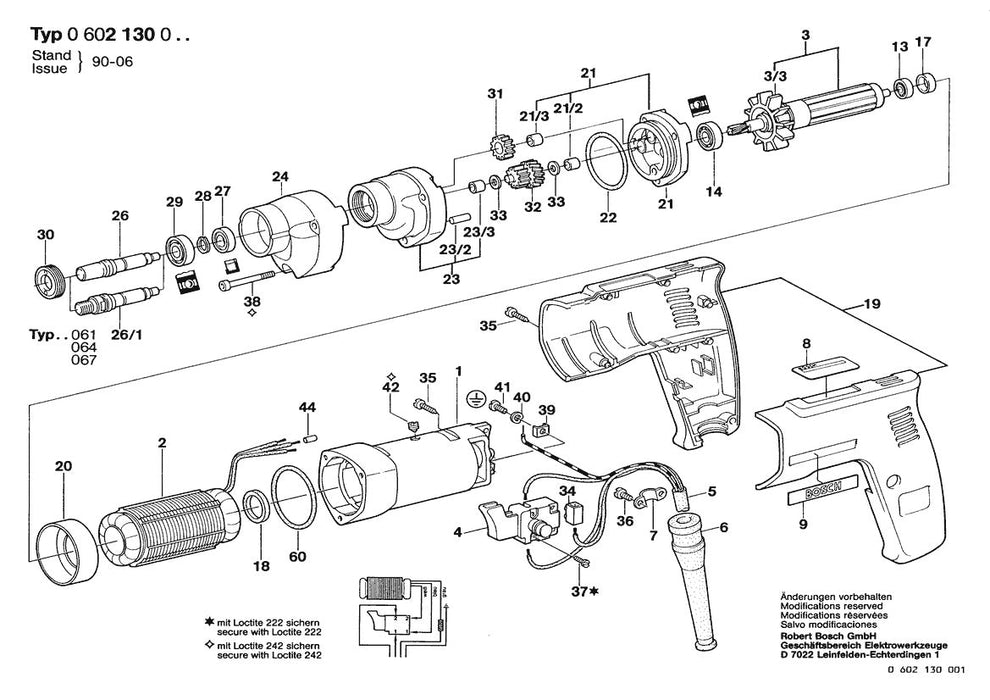

0602130004 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram

0602130004 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram

  • 0602130004 Bosch High Frequency Drill Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
28
2916650001 C-clip | Genuine OEM Bosch Part
$3.91
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302014 Fastening Clamp by Bosch
$3.91
33
2600100613 Shim | Genuine OEM Bosch Part
$3.91
36
2910001116 Cheese Head Screw by Bosch
$4.89
41
2910110120 Slotted Pan-head Screw by Bosch
$3.91
39
3601321001 Clamping Saddle by Bosch
$3.91
40
3600150006 Spring Washer by Bosch
$3.91
23
2917500122 Pin | Genuine OEM Bosch Part
$3.91
2
2917500122 Pin | Genuine OEM Bosch Part
$3.91
35
2603490023 Torx Oval-head Screw by Bosch
$4.89
14
2600905021 Deep-groove Ball Bearing by Bosch
$10.84
View full details
