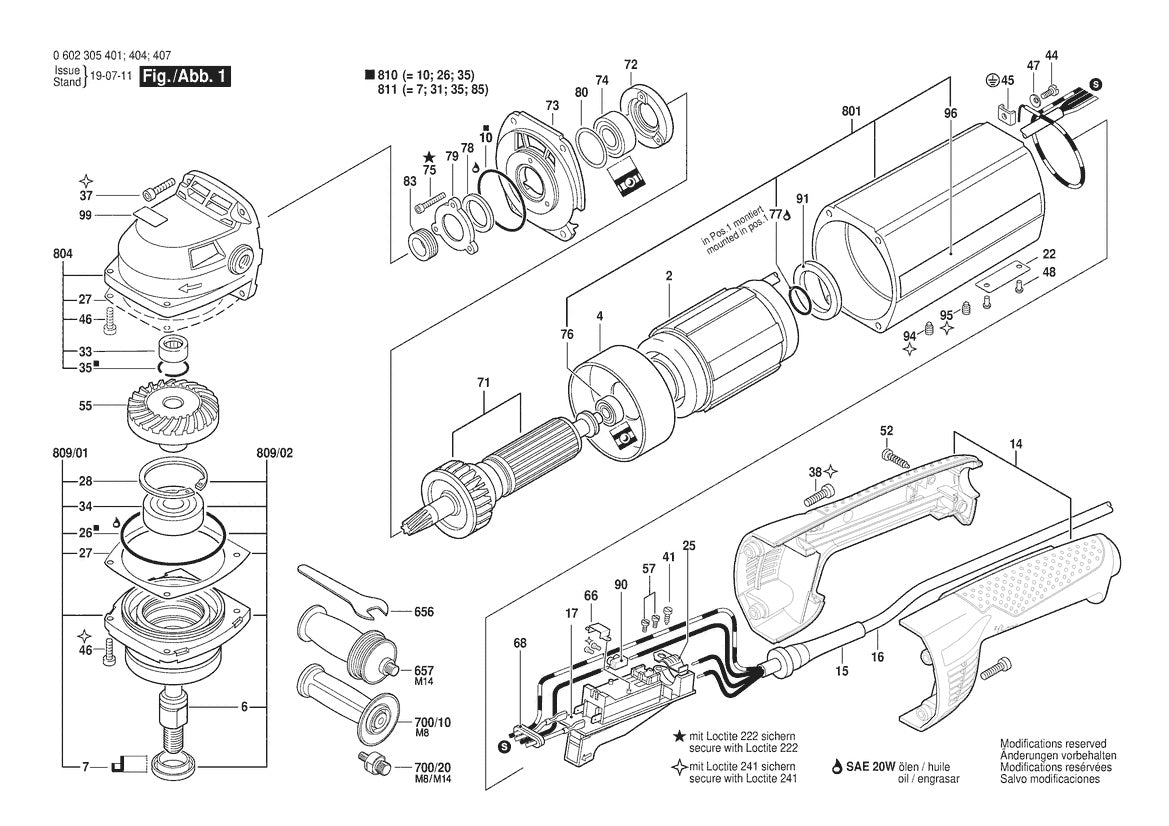

0602305401 Bosch Universal Angle Polisher Bosch Polisher Parts Diagram

0602305401 Bosch Universal Angle Polisher Bosch Polisher Parts Diagram

  • 0602305401 Bosch Universal Angle Polisher Bosch Polisher Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
57
2910021118 Cheese Head Screw by Bosch
$4.89
41
2910211019 Sheet Metal Screw by Bosch
$4.89
7
1600290020 Seal Ring | Genuine OEM Bosch Part
$3.91
38
2910141160 Hex-socket-head Cap Screw by Bosch
$3.91
657
1602025030 Auxiliary Handle by Bosch
$19.68
99
3601119236 Reference Plate by Bosch
$3.91
700
160202507H Auxiliary Handle by Bosch
$9.41
10
160202507H Auxiliary Handle by Bosch
$9.41
37
3603414028 Hex-socket-head Cap Screw by Bosch
$3.91
44
2910110120 Slotted Pan-head Screw by Bosch
$3.91
45
3601321001 Clamping Saddle by Bosch
$3.91
47
3600150006 Spring Washer by Bosch
$3.91
26
1600210005 O-ring (66x3mm) by Bosch
$3.91
33
1600910010 Needle Bearing by Bosch
$31.26
656
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 0602305401 Bosch Universal Angle Polisher parts diagram with labeled components and matching parts list. Easily find the part number you need to order.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
