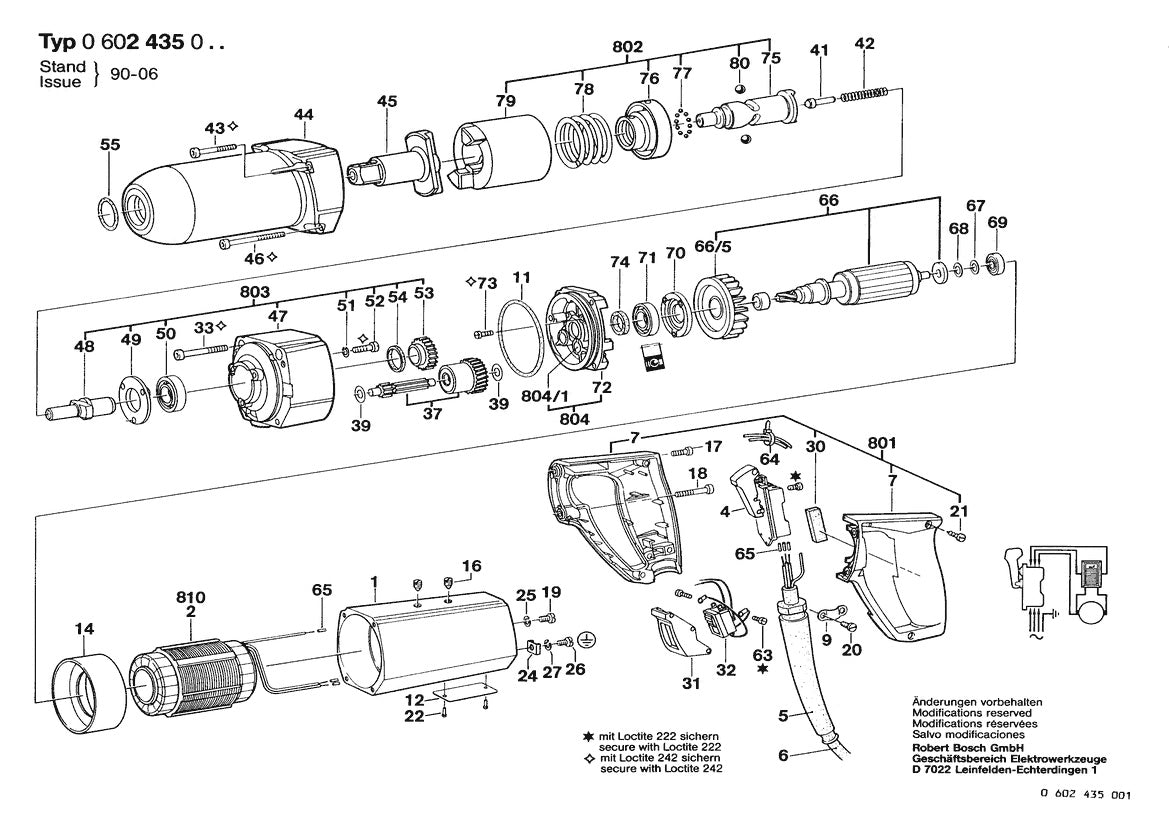

0602435001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

0602435001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

  • 0602435001 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
52
2910021126 Cheese Head Screw by Bosch
$3.91
65
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
21
2610912760 Sheet Metal Screw by Bosch
$3.91
33
2910141172 Hex-socket-head Cap Screw by Bosch
$3.91
20
2910001116 Cheese Head Screw by Bosch
$4.89
17
2910141154 Hex-socket-head Cap Screw by Bosch
$3.91
51
2916681005 Spring Lock Washer by Bosch
$4.89
77
1903230007 Ball | Genuine OEM Bosch Part
$4.89
68
1600100632 Shim | Genuine OEM Bosch Part
$3.91
26
2910110120 Slotted Pan-head Screw by Bosch
$3.91
24
3601321001 Clamping Saddle by Bosch
$3.91
27
3600150006 Spring Washer by Bosch
$3.91
45
1606455031 Drive Coupling by Bosch
$209.32
79
1608710018 Striker | Genuine OEM Bosch Part
$325.40
55
1900210129 O-ring | Genuine OEM Bosch Part
$3.91
11
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
80
1903230014 Ball | Genuine OEM Bosch Part
$3.91
801
3605133009 Handle | Genuine OEM Bosch Part
$37.75
View full details
