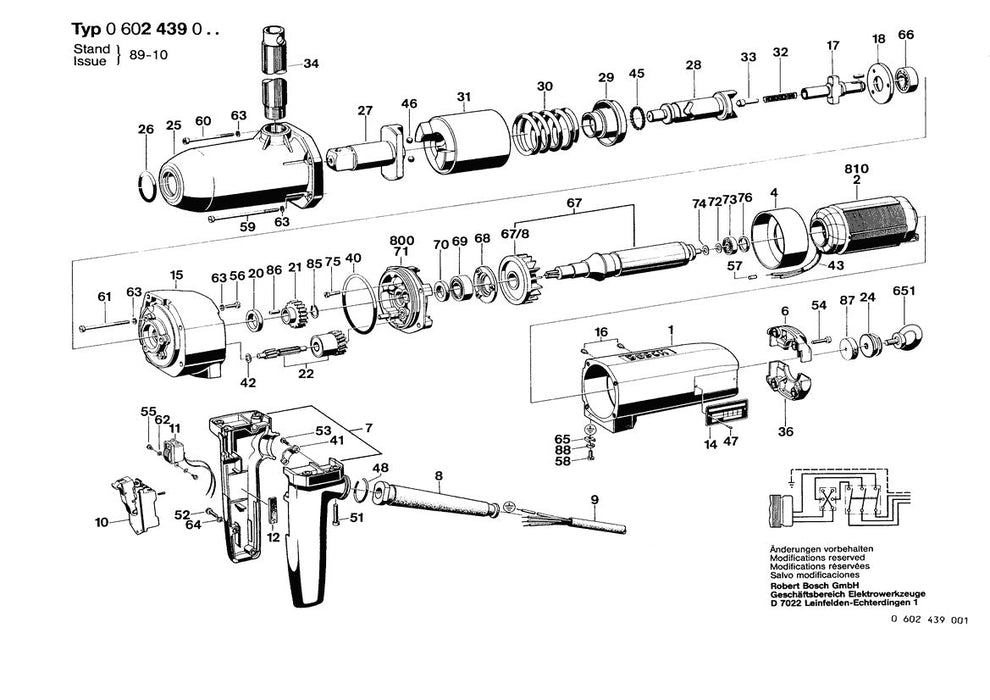

0602439007 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

0602439007 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram

  • 0602439007 Bosch Impact Wrench Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
85
2916650006 C-clip | Genuine OEM Bosch Part
$4.89
75
2910021126 Cheese Head Screw by Bosch
$3.91
56
2910021157 Cheese Head Screw by Bosch
$3.91
42
1600100631 Shim | Genuine OEM Bosch Part
$3.91
53
2910001116 Cheese Head Screw by Bosch
$4.89
52
2910021122 Cheese Head Screw by Bosch
$3.91
74
1600100632 Shim | Genuine OEM Bosch Part
$3.91
45
1903230009 Ball | Genuine OEM Bosch Part
$3.91
54
3603414028 Hex-socket-head Cap Screw by Bosch
$3.91
58
2910110120 Slotted Pan-head Screw by Bosch
$3.91
65
3601321001 Clamping Saddle by Bosch
$3.91
88
3600150006 Spring Washer by Bosch
$3.91
27
1606455054 Drive Coupling by Bosch
$266.24
40
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
63
2916690004 Lock Washer | Genuine OEM Bosch Part
$3.91
46
3600210131 O-ring | Genuine OEM Bosch Part
$3.91
6
3605500059 Cover | Genuine OEM Bosch Part
$17.61
View full details
