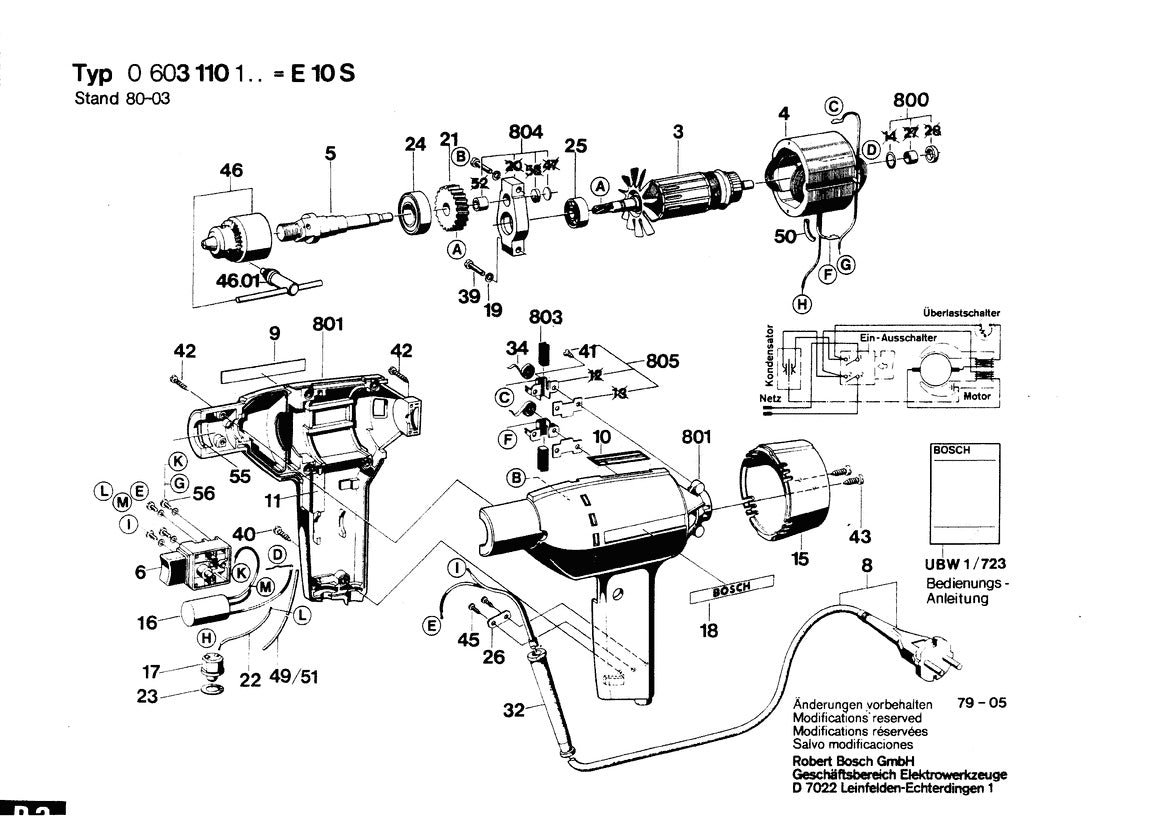

0603110134 Bosch Drill Bosch Electric Drill Parts Diagram

0603110134 Bosch Drill Bosch Electric Drill Parts Diagram

  • 0603110134 Bosch Drill Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
56
2603410001 Cheese Head Screw by Bosch
$4.89
45
2610914920 Sheet Metal Screw by Bosch
$3.91
24
1900905122 Deep-groove Ball Bearing by Bosch
$10.73
34
1604652004 Spiral Spring by Bosch
$3.91
39
2910011128 Cheese Head Screw by Bosch
$3.91
40
2910211019 Sheet Metal Screw by Bosch
$4.89
19
2916681005 Spring Lock Washer by Bosch
$4.89
800
1600301900 Sintered-metal Bushing by Bosch
$3.91
18
1601110481 Manufacturers Nameplate by Bosch
$3.91
55
1610210121 O-ring | Genuine OEM Bosch Part
$3.91
42
2910211006 Screw | Genuine OEM Bosch Part
$3.91
25
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
10
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
