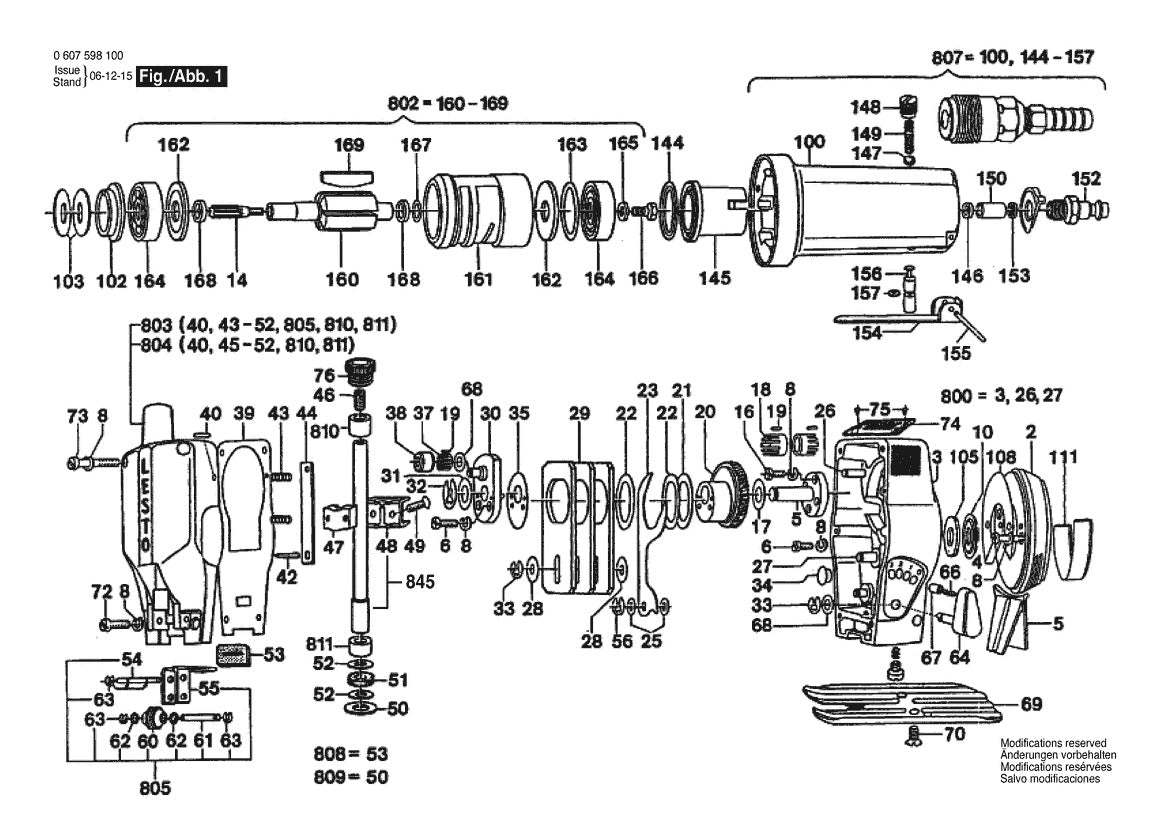

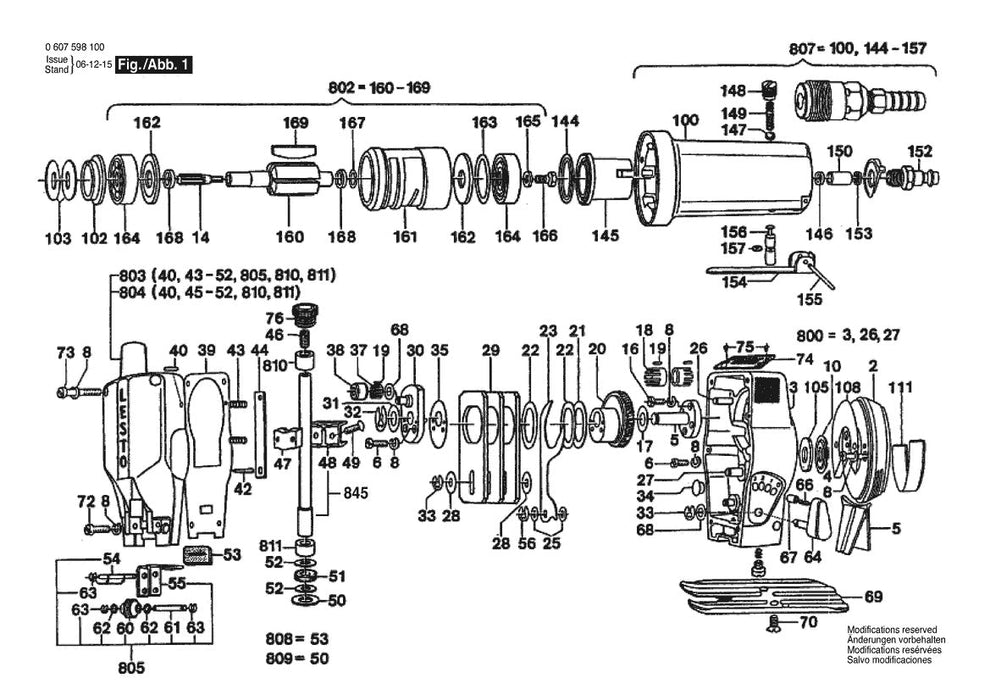

0607598100 Bosch Jig Saw Bosch Jig Saw Parts Diagram

0607598100 Bosch Jig Saw Bosch Jig Saw Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
28
2600100627 Shim | Genuine OEM Bosch Part
$3.91
68
2600100607 Shim | Genuine OEM Bosch Part
$3.91
28
2600100628 Shim | Genuine OEM Bosch Part
$3.91
56
2916080907 Locking Washer by Bosch
$3.91
17
2600101616 Shim | Genuine OEM Bosch Part
$3.91
16
2910021118 Cheese Head Screw by Bosch
$4.89
40
1903201042 Needle Roller by Bosch
$3.91
21
2600102653 Shim | Genuine OEM Bosch Part
$3.91
25
2600100515 Plain Washer by Bosch
$3.91
25
2600100516 Plain Washer by Bosch
$3.91
22
2600102652 Shim | Genuine OEM Bosch Part
$3.91
31
2600100575 Shim | Genuine OEM Bosch Part
$3.91
31
2600100577 Plain Washer by Bosch
$3.91
68
2600100568 Shim | Genuine OEM Bosch Part
$4.89
68
2600100569 Shim | Genuine OEM Bosch Part
$3.91
43
2604613000 Compression Spring by Bosch
$3.91
47
2602329011 Clamping Saddle by Bosch
$4.89
49
2603421040 Countersunk-head Screw by Bosch
$4.89
52
2600112031 Supporting Disc by Bosch
$4.89
51
2600290017 Seal Ring | Genuine OEM Bosch Part
$4.89
50
2600101612 Shim | Genuine OEM Bosch Part
$4.89
46
2603400000 Clamp Screw | Genuine OEM Bosch Part
$4.89
32
2916080910 Locking Washer by Bosch
$3.91
38
2600917900 Needle Sleeve by Bosch
$9.41
19
2603201037 Needle Roller by Bosch
$4.89
72
2910021122 Cheese Head Screw by Bosch
$3.91
62
2600100510 Plain Washer by Bosch
$3.91
73
2910011132 Cheese Head Screw by Bosch
$3.91
168
2600200007 Spacer Ring | Genuine OEM Bosch Part
$10.73
157
2600210007 O-ring | Genuine OEM Bosch Part
$3.91
148
3603463009 Screw Plug | Genuine OEM Bosch Part
$34.04
146
2600206004 Seal Ring | Genuine OEM Bosch Part
$6.11
153
2600002006 Strainer | Genuine OEM Bosch Part
$4.89
147
1903230024 Ball | Genuine OEM Bosch Part
$3.91
155
2917500083 Straight Pin by Bosch
$3.91
164
1900905315 Ball Bearing by Bosch
$34.04
810
2600301046 Sintered Metal Bushing by Bosch
$3.91
811
2600301045 Sintered Metal Bushing by Bosch
$4.89
View full details
