0612302002 Bosch Un-Demolition Hammer Bosch Demolition Hammer Parts Diagram

0612302002 Bosch Un-Demolition Hammer Bosch Demolition Hammer Parts Diagram

  • 0612302002 Bosch Un-Demolition Hammer Bosch Demolition Hammer Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
82
2910141244 Hex-socket-head Cap Screw by Bosch
$3.91
59
2910011132 Cheese Head Screw by Bosch
$3.91
73
1610703011 Grommet | Genuine OEM Bosch Part
$17.80
64
2916160009 Disc Spring | Genuine OEM Bosch Part
$3.91
46
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
83
2917721034 Round-head Grooved Pin by Bosch
$3.91
75
1900210145 Seal Ring | Genuine OEM Bosch Part
$3.91
49
2915061005 Nut | Genuine OEM Bosch Part
$3.91
44
1904681350 Cotter Pin | Genuine OEM Bosch Part
$3.91
47
1610905001 Ball Bearing by Bosch
$17.96
69
1610910007 Needle Bearing by Bosch
$31.26
81
2916690007 Lock Washer | Genuine OEM Bosch Part
$3.91
63
1610900013 Ball Bearing by Bosch
$12.34
View full details

Frequently asked questions

How do I use this diagram?

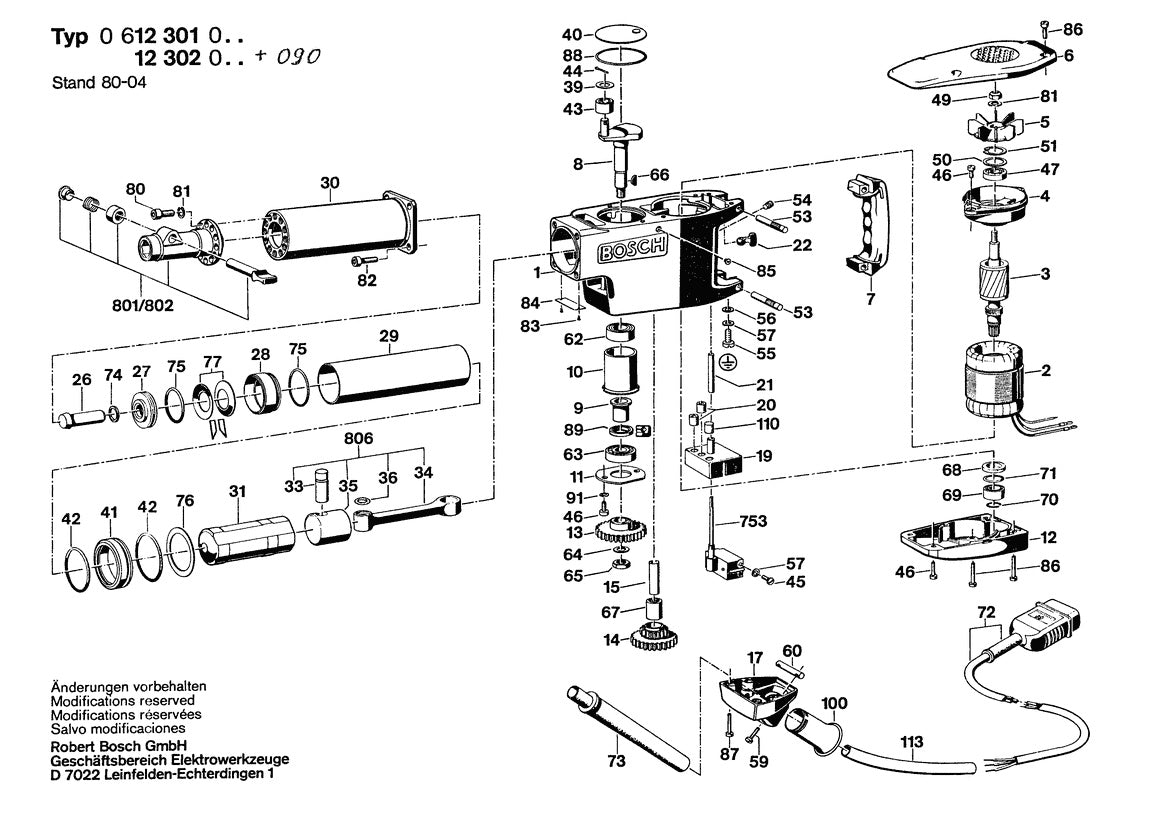

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
