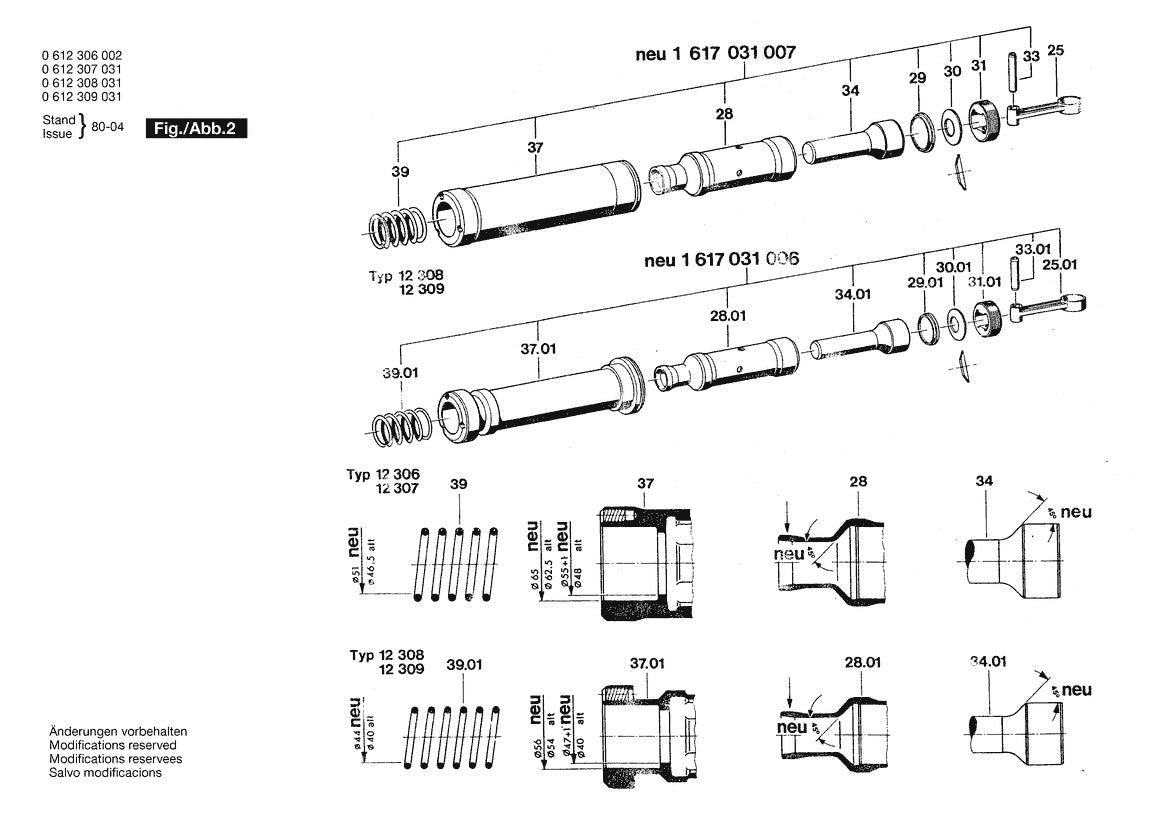

0612308061 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram

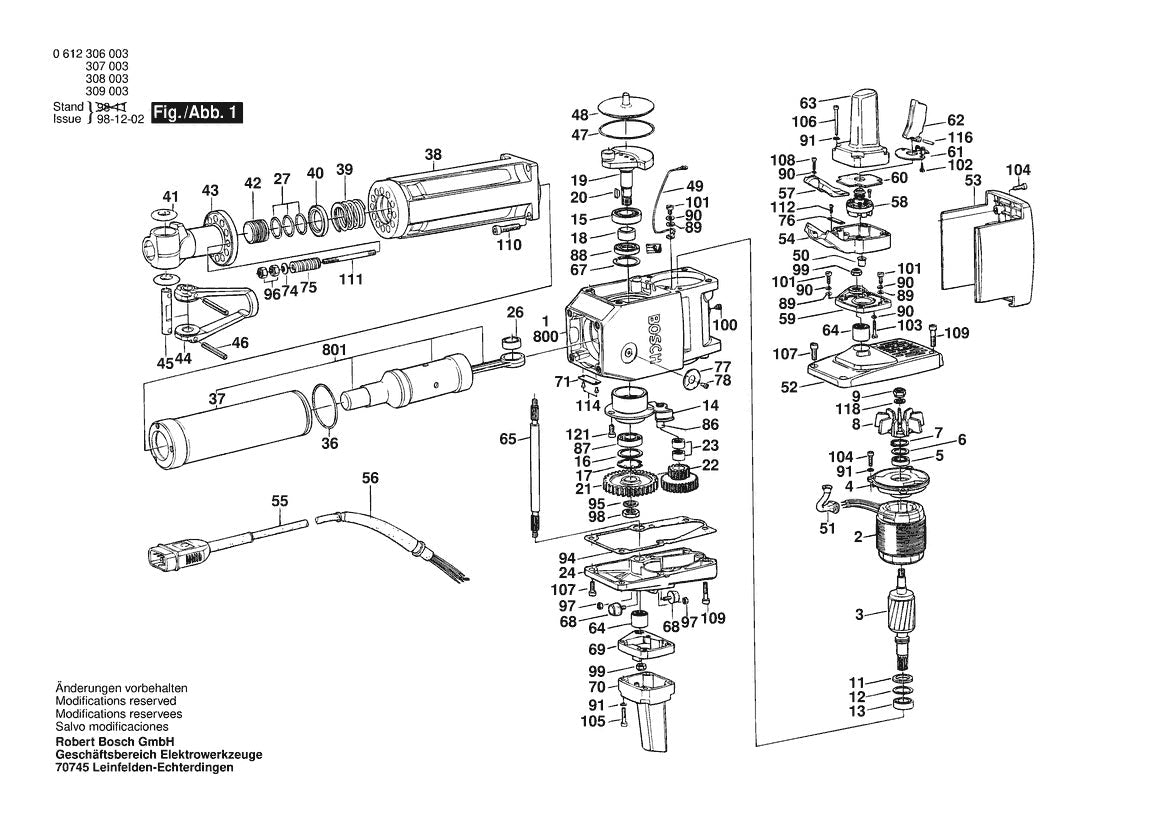

0612308061 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram

  • 0612308061 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram
  • 0612308061 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
108
2910021126 Cheese Head Screw by Bosch
$3.91
90
2916681005 Spring Lock Washer by Bosch
$4.89
121
2910141244 Hex-socket-head Cap Screw by Bosch
$3.91
103
2910011132 Cheese Head Screw by Bosch
$3.91
17
2916660023 C-clip | Genuine OEM Bosch Part
$4.89
9
1613313000 Hexagon Nut | Genuine OEM Bosch Part
$4.89
36
1900210166 O-ring | Genuine OEM Bosch Part
$5.33
41
1610210008 O-ring | Genuine OEM Bosch Part
$6.16
45
1613103004 Locking Bolt by Bosch
$60.21
46
2917760187 Clamping Sleeve by Bosch
$4.89
47
1900210172 O-ring | Genuine OEM Bosch Part
$10.95
48
1610516007 Locking Cover by Bosch
$19.87
50
3600421500 Protection Sleeve by Bosch
$3.91
53
1600A00C0N Hood | Genuine OEM Bosch Part
$75.21
56
1610703011 Grommet | Genuine OEM Bosch Part
$17.80
58
1617200108 On-off Switch by Bosch
$70.27
62
1612026011 Switch-pawl | Genuine OEM Bosch Part
$7.08
63
1615132010 Handle | Genuine OEM Bosch Part
$43.77
64
1616334000 Rubber Torsion Bar by Bosch
$22.89
65
1613060005 Toothed Shaft by Bosch
$70.27
68
1613465001 Rubber Buffer by Bosch
$6.16
69
1615700042 Intermediate Plate by Bosch
$157.65
70
1615132011 Handle | Genuine OEM Bosch Part
$15.93
74
2916160009 Disc Spring | Genuine OEM Bosch Part
$3.91
86
1610300033 Axle Pin | Genuine OEM Bosch Part
$22.66
94
1611015021 Sealing Plate by Bosch
$5.09
99
3613313500 Hexagon Nut | Genuine OEM Bosch Part
$4.89
102
2910211025 Sheet Metal Screw by Bosch
$3.91
104
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
107
2910141242 Hex-socket-head Cap Screw by Bosch
$4.89
109
2910141248 Hex-socket-head Cap Screw by Bosch
$4.89
114
2917721034 Round-head Grooved Pin by Bosch
$3.91
26
1610910035 Needle-roller Bearing by Bosch
$38.13
54
1617000858 Switch Housing by Bosch
$43.77
116
1617000429 Mounting Plate by Bosch
$14.18
106
2910141215 Screw | Genuine OEM Bosch Part
$4.89
5
1900905279 Ball Bearing by Bosch
$31.26
44
1618045026 Retaining Bracket by Bosch
$247.57
