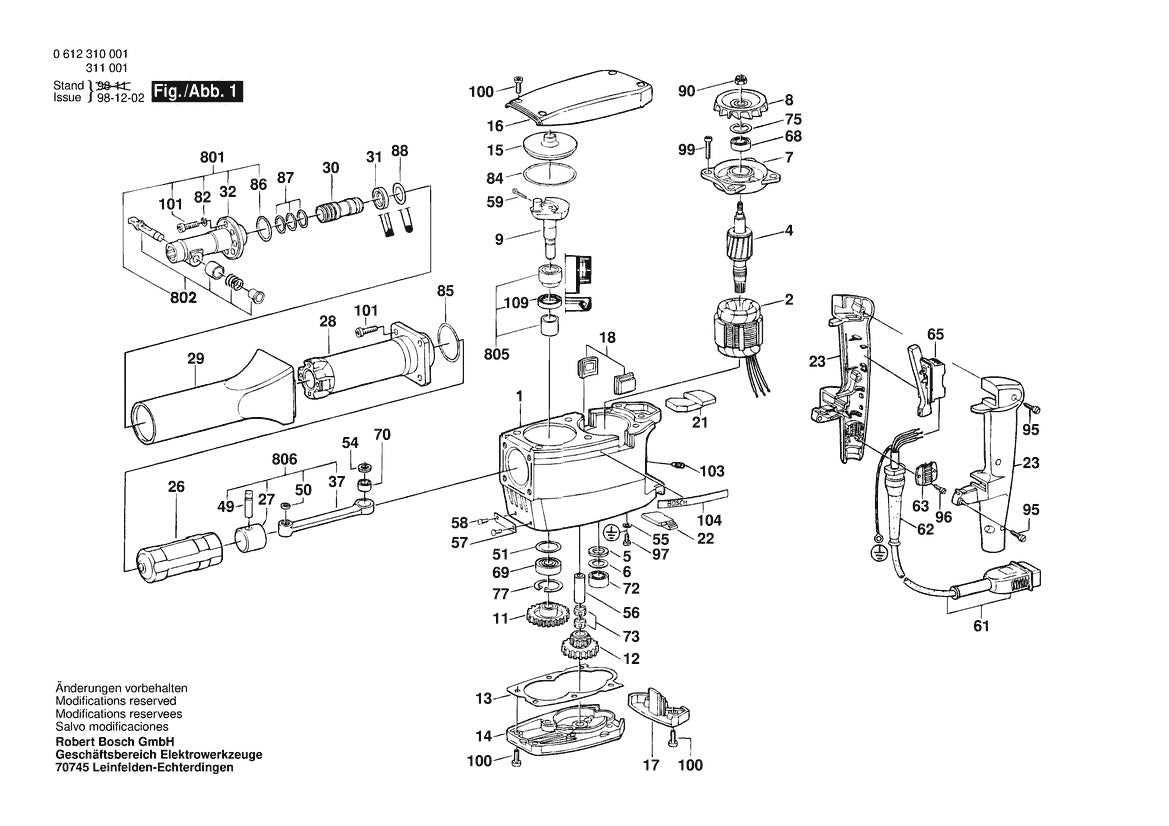

0612310003 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram

0612310003 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram

  • 0612310003 Bosch Demolition Hammer Bosch Demolition Hammer Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
75
2916660013 C-clip | Genuine OEM Bosch Part
$3.91
96
2910021118 Cheese Head Screw by Bosch
$4.89
650
1907950007 Offset Screwdriver by Bosch
$5.38
101
2910141244 Hex-socket-head Cap Screw by Bosch
$3.91
95
2910211011 Sheet Metal Screw by Bosch
$4.89
86
1900210130 O-ring | Genuine OEM Bosch Part
$4.89
97
2910110116 Slotted Pan-head Screw by Bosch
$3.91
58
2917721034 Round-head Grooved Pin by Bosch
$3.91
90
2915061005 Nut | Genuine OEM Bosch Part
$3.91
100
2910141199 Screw | Genuine OEM Bosch Part
$3.91
5
1610108012 Felt Seal | Genuine OEM Bosch Part
$3.91
6
1610102013 Washer | Genuine OEM Bosch Part
$3.91
15
1615500168 Eccentric Cover by Bosch
$3.91
16
1615500276 Motor Housing Cover by Bosch
$48.23
17
1615500261 Cover | Genuine OEM Bosch Part
$9.32
18
1615500282 Brush Cover | Genuine OEM Bosch Part
$3.91
21
1612392001 Upper Handle Buffer by Bosch
$4.89
22
1612392000 Lower Handle Buffer by Bosch
$3.91
54
1610113005 Washer | Genuine OEM Bosch Part
$3.91
56
1610300057 Pinion | Genuine OEM Bosch Part
$5.28
59
1904681350 Cotter Pin | Genuine OEM Bosch Part
$3.91
68
1610905001 Ball Bearing by Bosch
$17.96
70
1610910049 Ball Bearing by Bosch
$31.26
72
1610910007 Needle Bearing by Bosch
$31.26
73
1610913001 Needle Bearing by Bosch
$10.95
82
2916690007 Lock Washer | Genuine OEM Bosch Part
$3.91
84
1900210160 O-ring | Genuine OEM Bosch Part
$6.23
85
1900210152 O-ring | Genuine OEM Bosch Part
$4.89
13
1611015012 Gasket | Genuine OEM Bosch Part
$4.89
29
1615190020 Plastic Sleeve by Bosch
$19.48
69
1610900013 Ball Bearing by Bosch
$12.34
77
2916660018 Retaining Ring by Bosch
$3.91
23
1615133021 Handle Assembly by Bosch
$22.66
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
