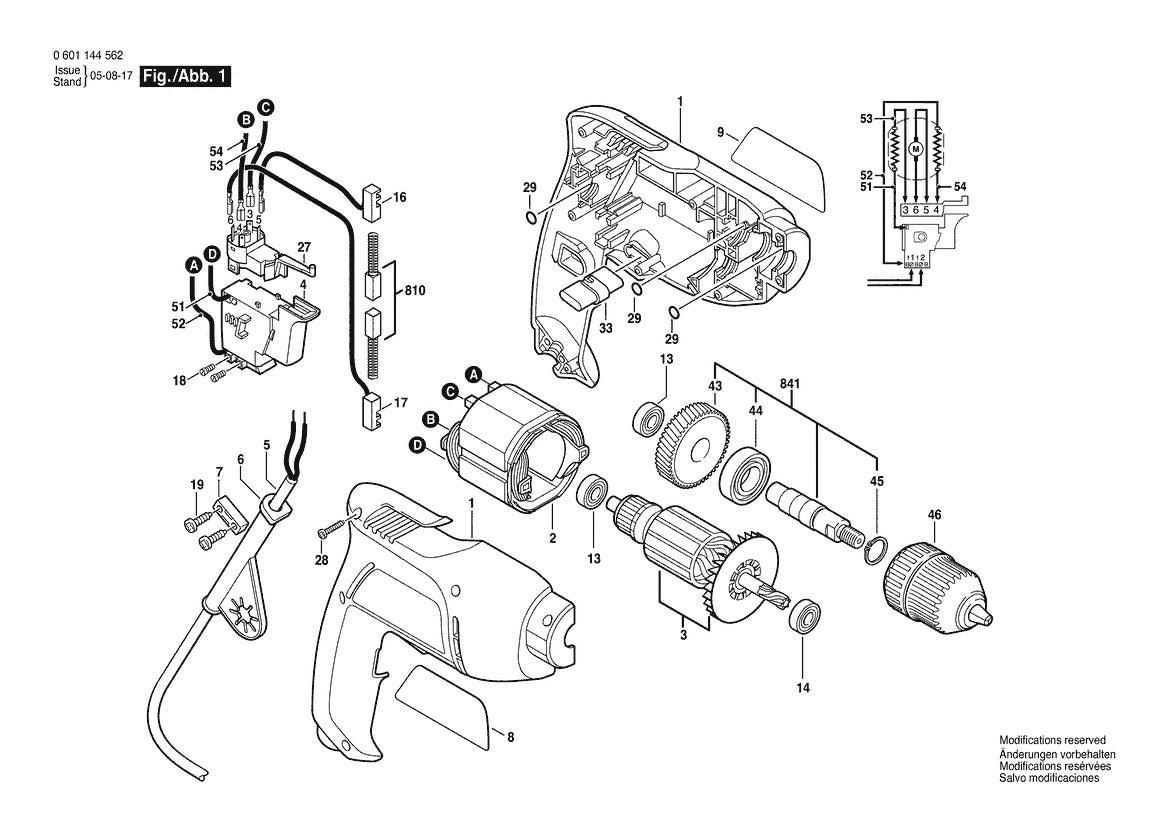

1005VSRK (0601144562) Bosch 3 Bosch Electric Drill Parts Diagram

1005VSRK (0601144562) Bosch 3 Bosch Electric Drill Parts Diagram

  • 1005VSRK (0601144562) Bosch 3 Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2605104590 Housing Section by Bosch
$22.66
2
2604220626 Field | Genuine OEM Bosch Part
$22.66
3
2604011204 Armature | Genuine OEM Bosch Part
$34.04
6
2600707060 Grommet | Genuine OEM Bosch Part
$5.09
9
2609130219 Manufacturers Nameplate by Bosch
$3.91
13
2600905046 Deep-groove Ball Bearing by Bosch
$12.34
17
2604449051 Brush Holder by Bosch
$3.91
18
2603410001 Cheese Head Screw by Bosch
$4.89
27
2607200416 Change-over Switch by Bosch
$15.77
28
2603435065 Sheet Metal Screw by Bosch
$3.91
43
2609110045 Cylindrical Gear by Bosch
$19.48
44
1900905122 Deep-groove Ball Bearing by Bosch
$10.73
45
2916650006 C-clip | Genuine OEM Bosch Part
$4.89
51
2604448212 Connecting Cable by Bosch
$3.91
52
2604448060 Connecting Cable by Bosch
$3.91
54
2609120005 Connecting Cable by Bosch
$3.91
810
2604321904 Carbon-brush Set by Bosch
$10.84
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
