1006VSR (3601D73610) Bosch 3 Bosch Electric Drill Parts Diagram

1006VSR (3601D73610) Bosch 3 Bosch Electric Drill Parts Diagram

  • 1006VSR (3601D73610) Bosch 3 Bosch Electric Drill Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
2604220653 Field | Genuine OEM Bosch Part
$21.32
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600707060 Grommet | Genuine OEM Bosch Part
$5.09
13
2609110153 Deep-groove Ball Bearing by Bosch
$6.23
14
2609110491 Deep-groove Ball Bearing by Bosch
$5.28
50
2610910009 Connection Block by Bosch
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

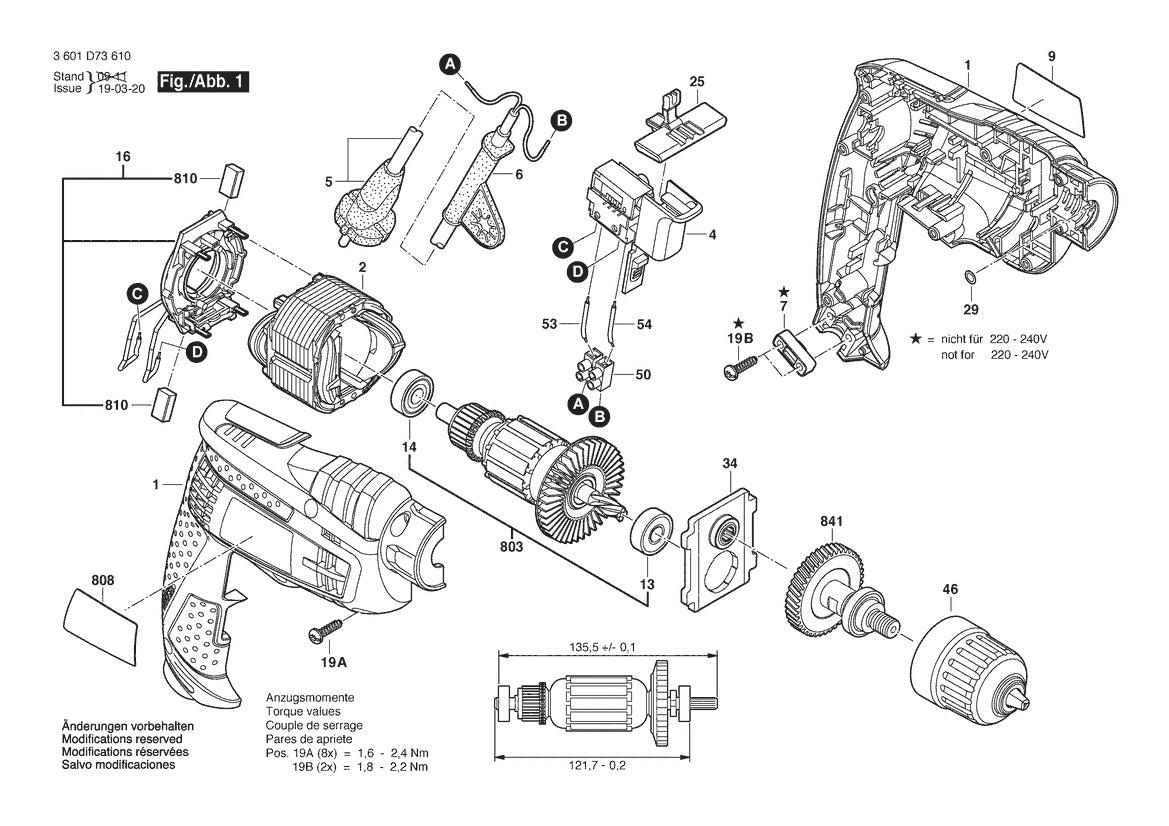

View the Bosch 3601D73610 Bosch 3 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
