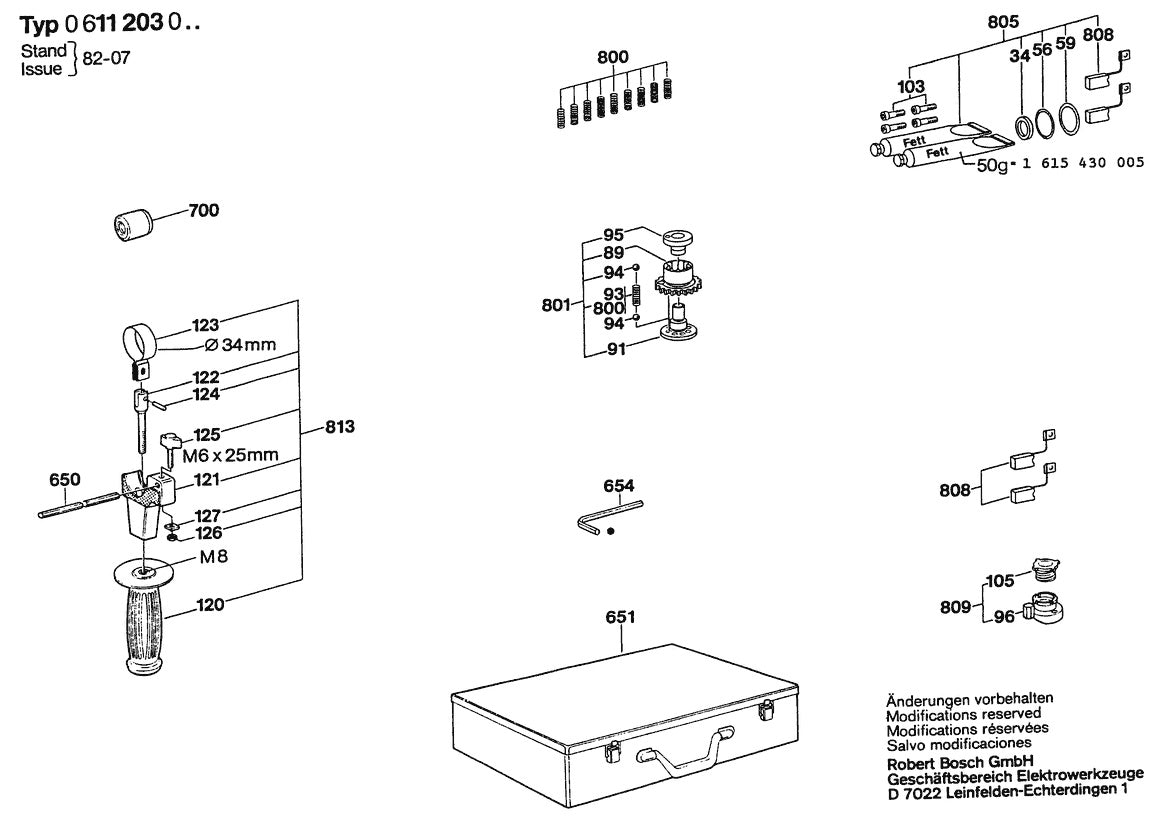

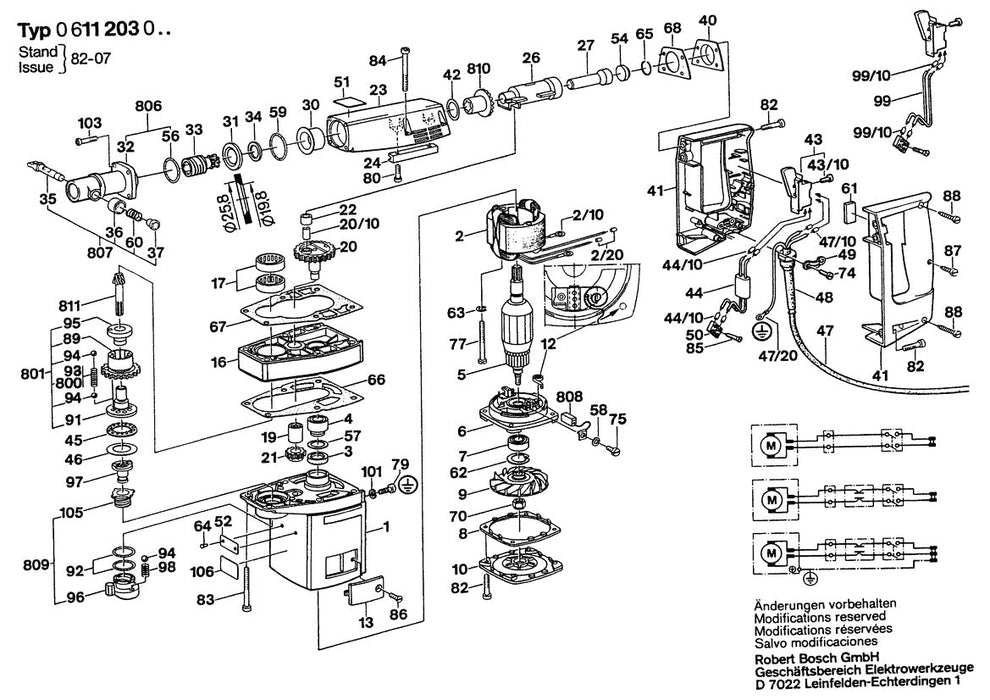

11203 (0611203034) Bosch 1-1 Bosch Rotary Hammer Parts Diagram

11203 (0611203034) Bosch 1-1 Bosch Rotary Hammer Parts Diagram

  • 11203 (0611203034) Bosch 1-1 Bosch Rotary Hammer Parts Diagram
  • 11203 (0611203034) Bosch 1-1 Bosch Rotary Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
1610910052 Needle Bearing by Bosch
$37.75
43-10
2603410001 Cheese Head Screw by Bosch
$4.89
47
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
48
3600703011 Cord Protector by Bosch
$4.89
49
1601302013 Fastening Clamp by Bosch
$3.91
57
1600102623 Washer | Genuine OEM Bosch Part
$3.91
62
2916660011 C-clip | Genuine OEM Bosch Part
$3.91
64
2917721034 Round-head Grooved Pin by Bosch
$3.91
66
1611015006 Gasket | Genuine OEM Bosch Part
$4.89
70
2915061005 Nut | Genuine OEM Bosch Part
$3.91
74
2910001116 Cheese Head Screw by Bosch
$4.89
74
2910021118 Cheese Head Screw by Bosch
$4.89
75
2910011120 Screw | Genuine OEM Bosch Part
$3.91
77
2910021174 Screw | Genuine OEM Bosch Part
$3.91
80
3603414028 Hex-socket-head Cap Screw by Bosch
$3.91
82
2910151164 Screw | Genuine OEM Bosch Part
$3.91
85
2910211007 Screw | Genuine OEM Bosch Part
$3.91
87
2910211011 Sheet Metal Screw by Bosch
$4.89
88
2610912760 Sheet Metal Screw by Bosch
$3.91
106
1601110481 Manufacturers Nameplate by Bosch
$3.91
34
1610224001 Plastic Ring by Bosch
$3.91
94
1903230009 Ball | Genuine OEM Bosch Part
$3.91
103
2910141199 Screw | Genuine OEM Bosch Part
$3.91
650
1613001003 Depth-gauge | Genuine OEM Bosch Part
$16.08
654
2610364015 Allen Wrench by Bosch
$4.89
700
2600508018 Closure Cap | Genuine OEM Bosch Part
$3.91
808
1617014110 Carbon Brush Set by Bosch
$21.54
View full details
