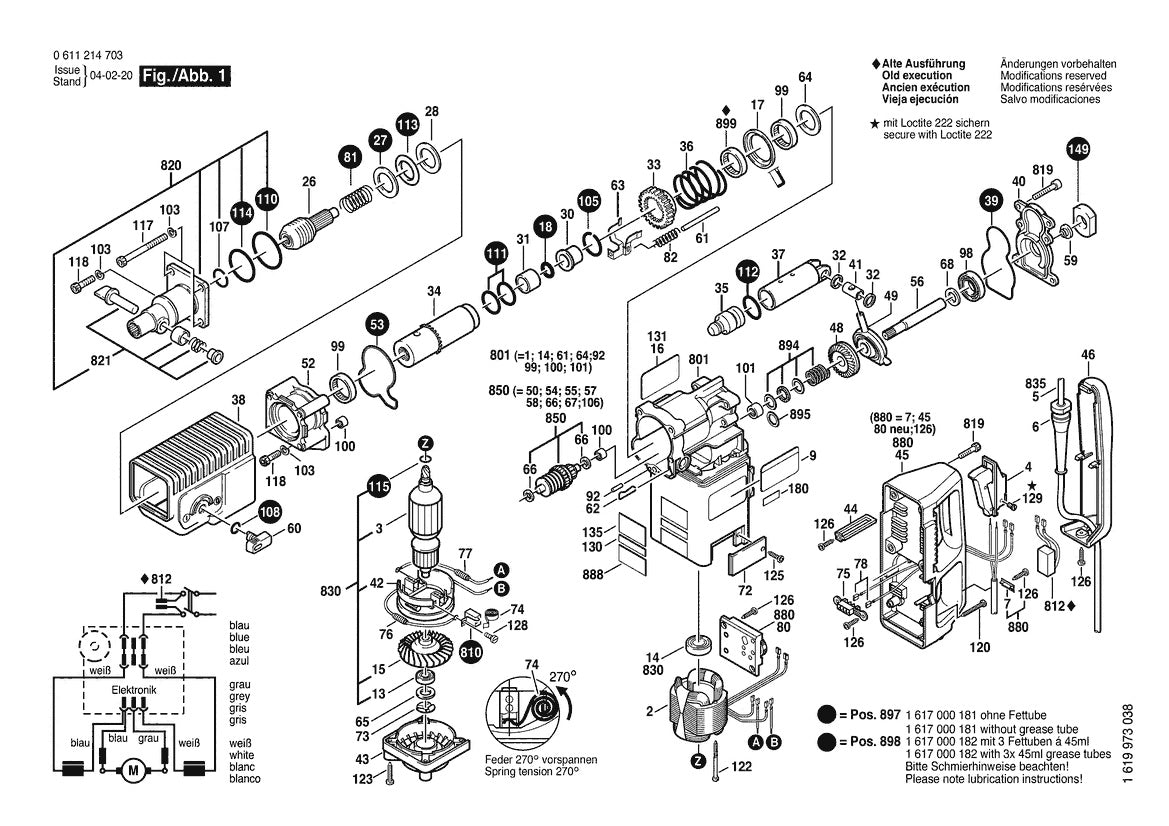

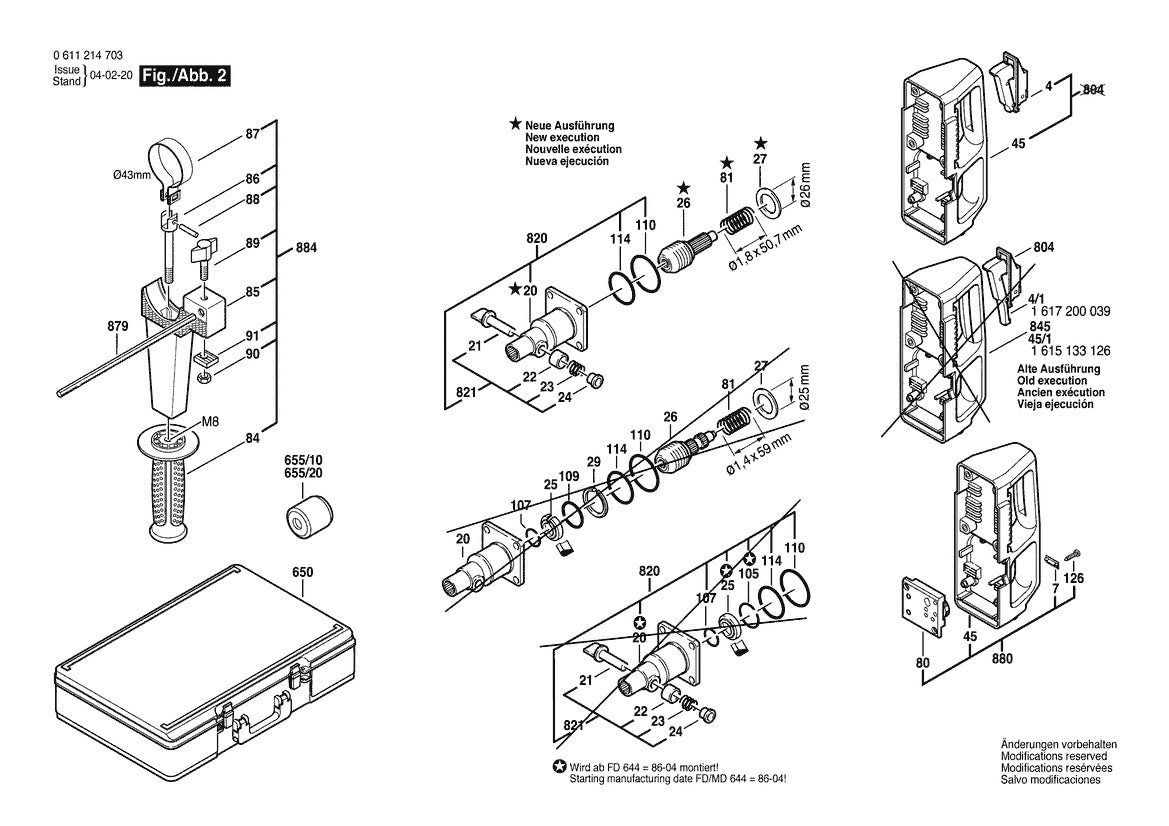

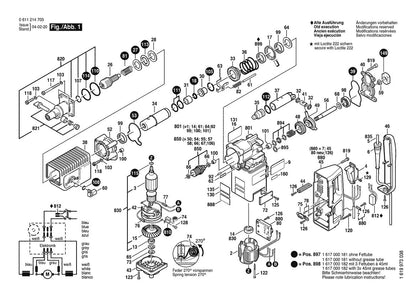

11214VS (0611214734) Bosch 1-3 Bosch Rotary Hammer Parts Diagram

11214VS (0611214734) Bosch 1-3 Bosch Rotary Hammer Parts Diagram

  • 11214VS (0611214734) Bosch 1-3 Bosch Rotary Hammer Parts Diagram
  • 11214VS (0611214734) Bosch 1-3 Bosch Rotary Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
6
3600703011 Cord Protector by Bosch
$4.89
8
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
13
1610905009 Deep-groove Ball Bearing by Bosch
$19.48
30
1610523001 Guide Bushing by Bosch
$12.34
32
1610101616 Shim Ring | Genuine OEM Bosch Part
$3.91
38
1615190010 Plastic Sleeve by Bosch
$24.90
39
1611015030 Sealing Frame by Bosch
$4.89
42
1614336005 Brush Holder by Bosch
$17.61
56
1613060012 Toothed Shaft by Bosch
$27.69
60
1612026022 Drill Lever | Genuine OEM Bosch Part
$15.77
73
1610210082 Clamping Ring by Bosch
$3.91
82
1614616006 Spring | Genuine OEM Bosch Part
$3.91
A84
160202507H Auxiliary Handle by Bosch
$9.41
86
1613521003 Threaded Pin by Bosch
$16.08
87
1611316003 Clamping Band by Bosch
$3.91
88
1613100012 Straight Pin by Bosch
$4.89
89
1613480009 Wing Screw | Genuine OEM Bosch Part
$3.91
90
1613300006 Nut | Genuine OEM Bosch Part
$4.89
91
1611030010 Clamping Plate by Bosch
$3.91
98
1610900023 Deep-groove Ball Bearing by Bosch
$17.61
100
2600910001 Needle Bushing by Bosch
$3.91
103
2916690007 Lock Washer | Genuine OEM Bosch Part
$3.91
110
1600210004 O-ring | Genuine OEM Bosch Part
$3.91
111
1610210078 O-ring | Genuine OEM Bosch Part
$3.91
112
1610210079 O-ring | Genuine OEM Bosch Part
$4.89
115
1610210081 O-ring | Genuine OEM Bosch Part
$4.89
117
2910141262 Hex-socket-head Cap Screw by Bosch
$3.91
118
2910141244 Hex-socket-head Cap Screw by Bosch
$3.91
120
2910211038 Sheet Metal Screw by Bosch
$3.91
122
1603435024 Sheet Metal Screw by Bosch
$3.91
123
2910211236 Sheet Metal Screw by Bosch
$3.91
126
2910211011 Sheet Metal Screw by Bosch
$4.89
128
2910021118 Cheese Head Screw by Bosch
$4.89
129
2603410001 Cheese Head Screw by Bosch
$4.89
150
1900452012 End Splice | Genuine OEM Bosch Part
$4.89
A651
1613001003 Depth-gauge | Genuine OEM Bosch Part
$16.08
810
1617014110 Carbon Brush Set by Bosch
$21.54
A813
1612025020 Auxiliary Handle by Bosch
$25.15
View full details
