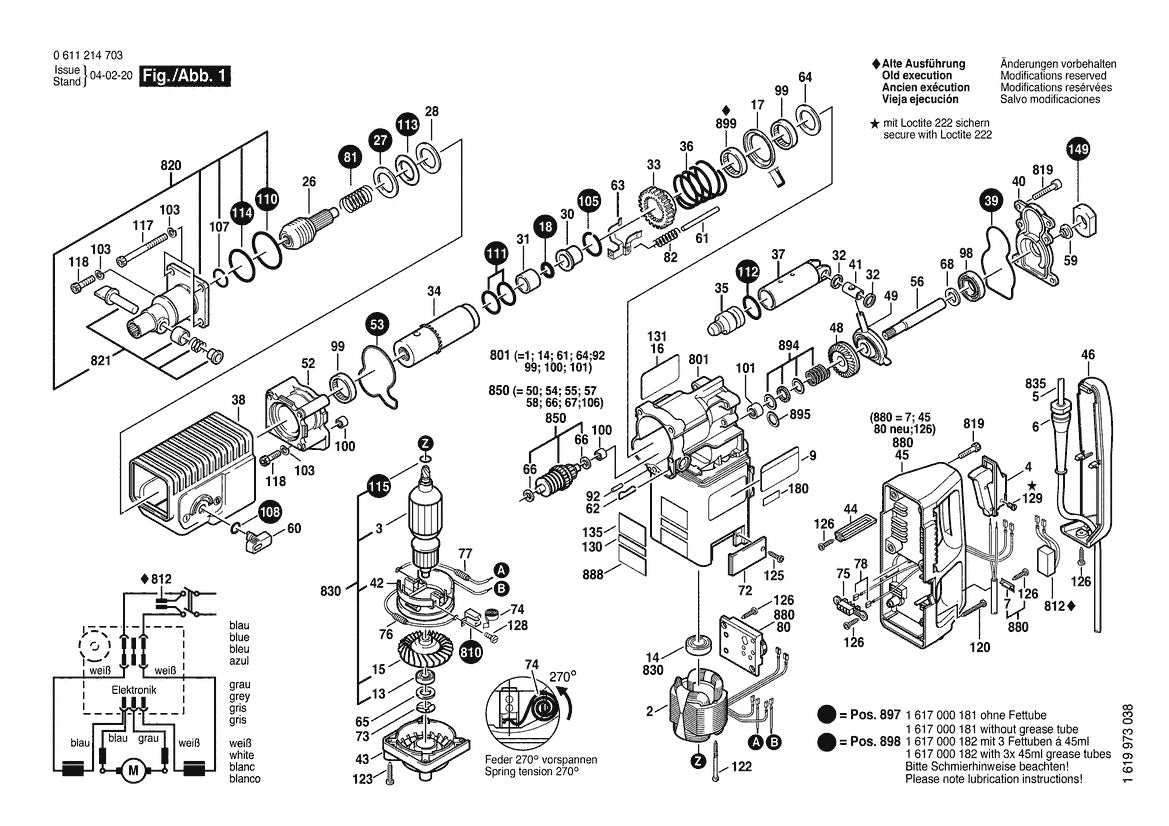

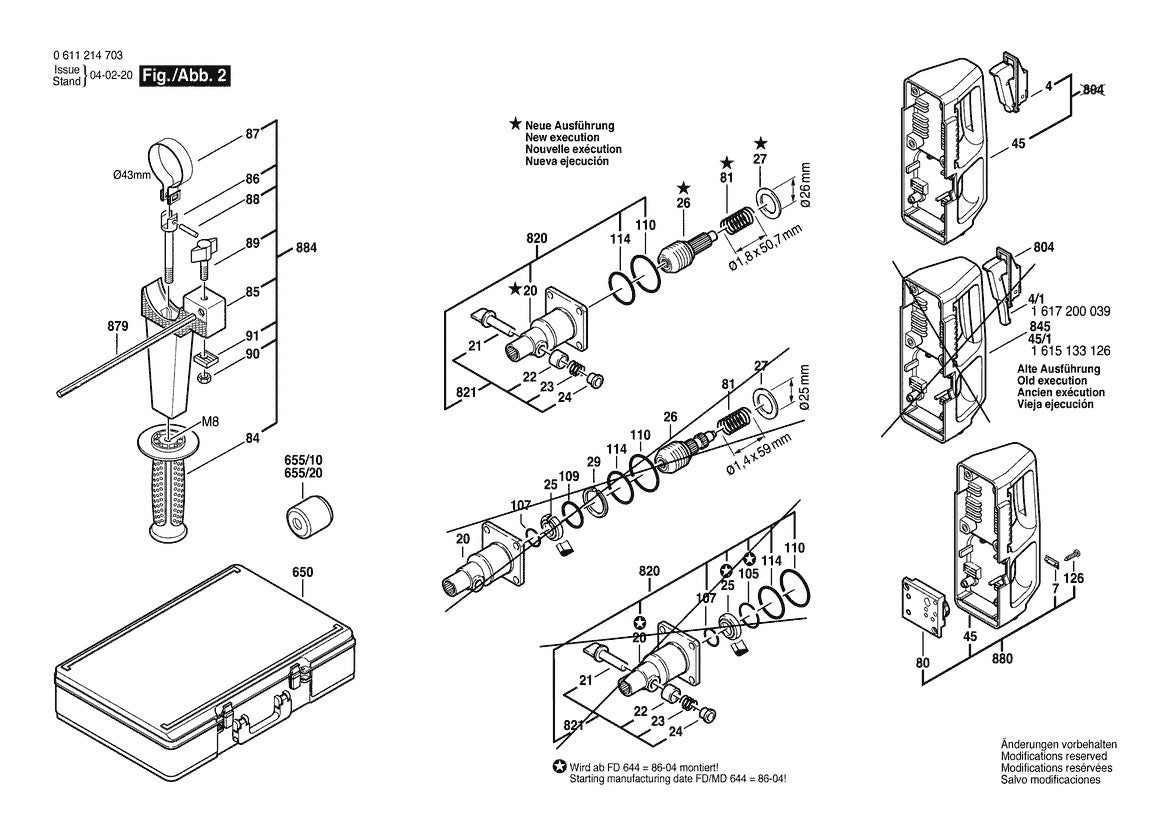

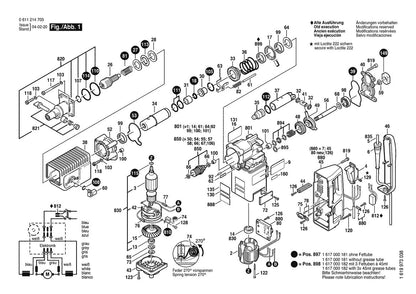

11214VS (0611214739) Bosch 1-3 Bosch Rotary Hammer Parts Diagram

11214VS (0611214739) Bosch 1-3 Bosch Rotary Hammer Parts Diagram

  • 11214VS (0611214739) Bosch 1-3 Bosch Rotary Hammer Parts Diagram
  • 11214VS (0611214739) Bosch 1-3 Bosch Rotary Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
6
3600703011 Cord Protector by Bosch
$4.89
8
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
13
1610905009 Deep-groove Ball Bearing by Bosch
$19.48
30
1610523001 Guide Bushing by Bosch
$12.34
32
1610101616 Shim Ring | Genuine OEM Bosch Part
$3.91
38
1615190010 Plastic Sleeve by Bosch
$24.90
39
1611015030 Sealing Frame by Bosch
$4.89
42
1614336005 Brush Holder by Bosch
$17.61
56
1613060012 Toothed Shaft by Bosch
$27.69
60
1612026022 Drill Lever | Genuine OEM Bosch Part
$15.77
73
1610210082 Clamping Ring by Bosch
$3.91
82
1614616006 Spring | Genuine OEM Bosch Part
$3.91
A84
160202507H Auxiliary Handle by Bosch
$9.41
86
1613521003 Threaded Pin by Bosch
$16.08
87
1611316003 Clamping Band by Bosch
$3.91
88
1613100012 Straight Pin by Bosch
$4.89
89
1613480009 Wing Screw | Genuine OEM Bosch Part
$3.91
90
1613300006 Nut | Genuine OEM Bosch Part
$4.89
91
1611030010 Clamping Plate by Bosch
$3.91
98
1610900023 Deep-groove Ball Bearing by Bosch
$17.61
100
2600910001 Needle Bushing by Bosch
$3.91
103
2916690007 Lock Washer | Genuine OEM Bosch Part
$3.91
110
1600210004 O-ring | Genuine OEM Bosch Part
$3.91
111
1610210078 O-ring | Genuine OEM Bosch Part
$3.91
112
1610210079 O-ring | Genuine OEM Bosch Part
$4.89
115
1610210081 O-ring | Genuine OEM Bosch Part
$4.89
117
2910141262 Hex-socket-head Cap Screw by Bosch
$3.91
118
2910141244 Hex-socket-head Cap Screw by Bosch
$3.91
120
2910211038 Sheet Metal Screw by Bosch
$3.91
122
1603435024 Sheet Metal Screw by Bosch
$3.91
123
2910211236 Sheet Metal Screw by Bosch
$3.91
126
2910211011 Sheet Metal Screw by Bosch
$4.89
128
2910021118 Cheese Head Screw by Bosch
$4.89
129
2603410001 Cheese Head Screw by Bosch
$4.89
150
1900452012 End Splice | Genuine OEM Bosch Part
$4.89
A651
1613001003 Depth-gauge | Genuine OEM Bosch Part
$16.08
810
1617014110 Carbon Brush Set by Bosch
$21.54
A813
1612025020 Auxiliary Handle by Bosch
$25.15
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
