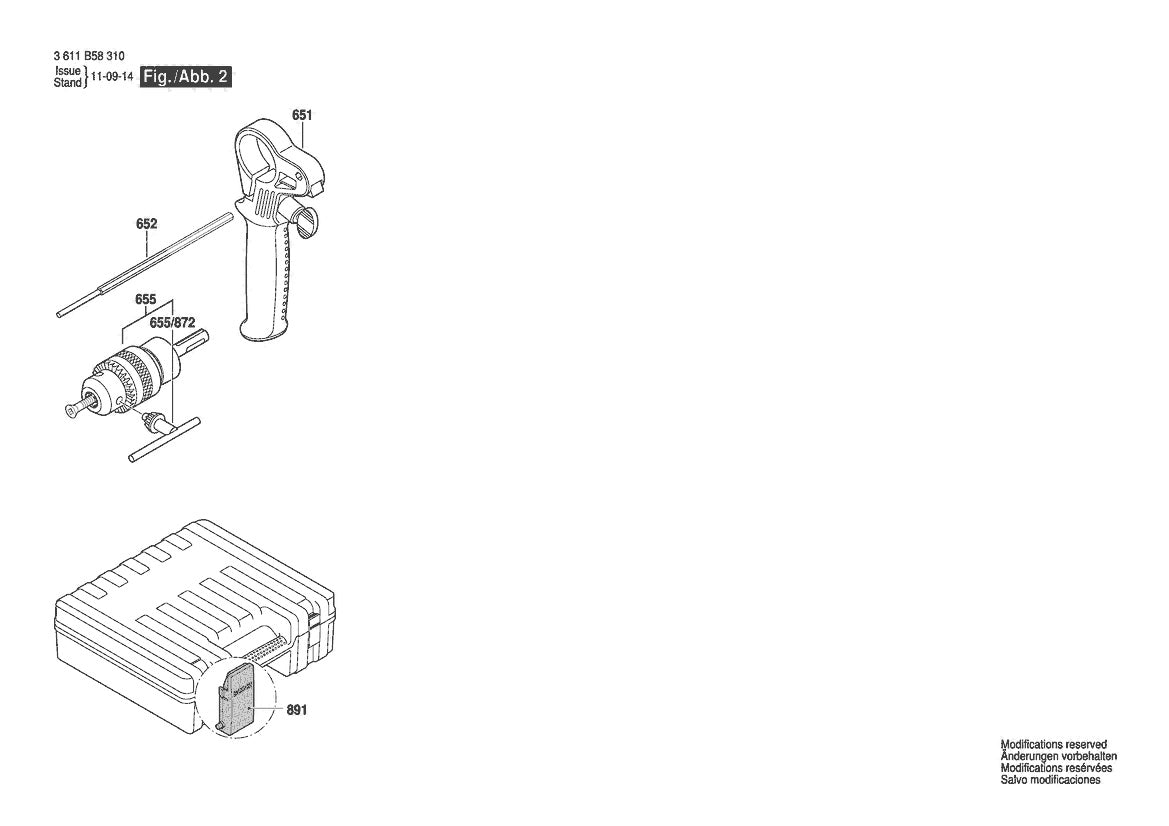

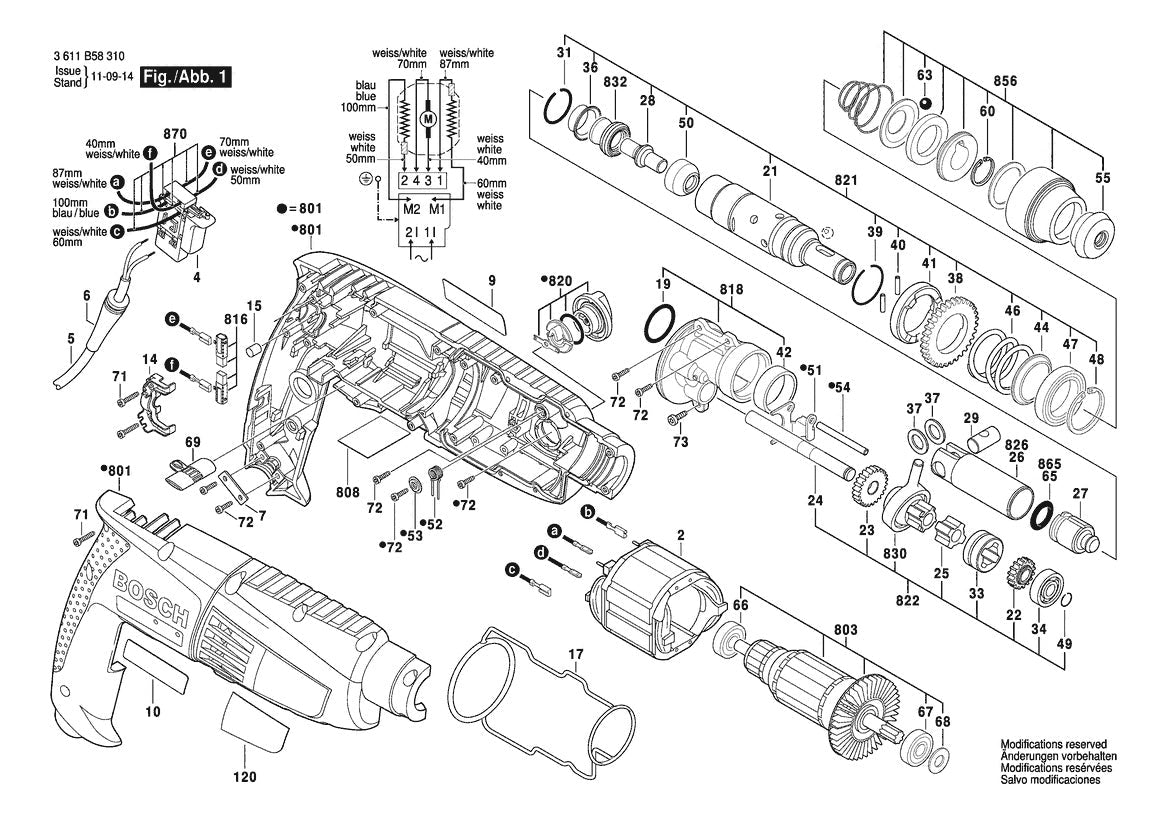

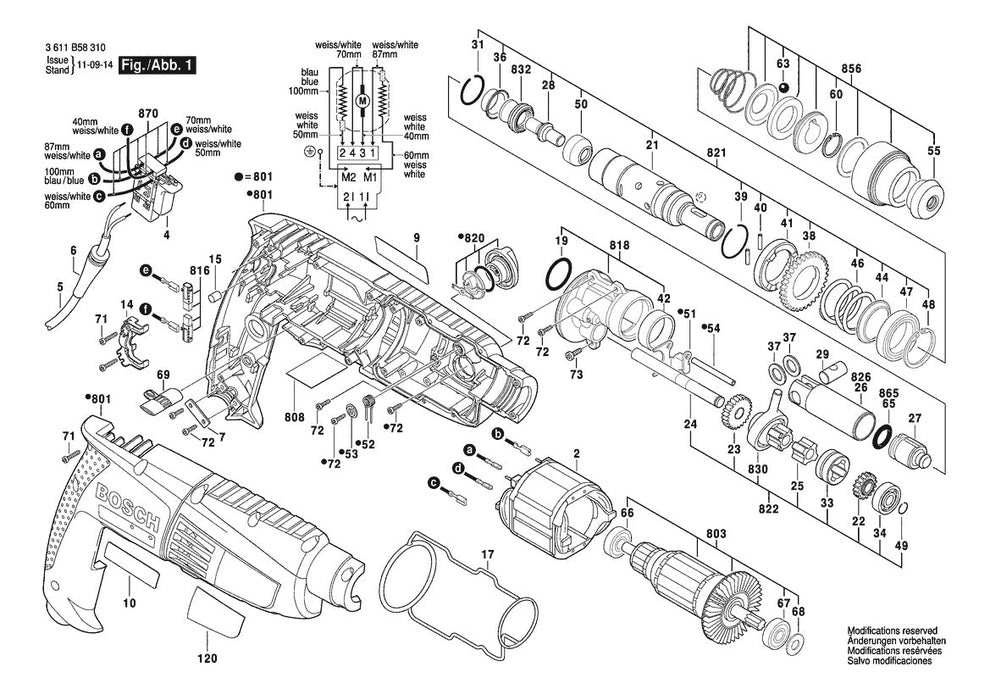

11258VSR (3611B58310) Bosch 5 Bosch Rotary Hammer Parts Diagram

11258VSR (3611B58310) Bosch 5 Bosch Rotary Hammer Parts Diagram

Skip to product information
1 of 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
1614220184 Field | Genuine OEM Bosch Part
$24.90
4
1617200517 On-off Switch by Bosch
$14.04
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
7
1611035007 Cable Clip | Genuine OEM Bosch Part
$3.91
9
1619P00867 Manufacturers Nameplate by Bosch
$3.91
10
1619P00868 Manufacturers Nameplate by Bosch
$3.91
14
1615806187 Bearing Bracket by Bosch
$3.91
15
2603100056 Rubber Buffer by Bosch
$3.91
17
1611015055 Sealing Frame by Bosch
$8.10
19
1610210184 O-ring | Genuine OEM Bosch Part
$3.91
21
1615806188 Hammer Pipe | Genuine OEM Bosch Part
$31.26
22
1616317069 Pinion | Genuine OEM Bosch Part
$8.10
23
1616317070 Cylindrical Gear by Bosch
$9.32
24
1613101011 Transmission Shaft by Bosch
$7.01
25
1616409023 Coupling Hub by Bosch
$3.91
26
1618700083 Hammer Piston by Bosch
$14.04
27
1618710085 Striker | Genuine OEM Bosch Part
$12.34
28
1613124084 Striker Pin | Genuine OEM Bosch Part
$4.89
29
1613100034 Piston Pin | Genuine OEM Bosch Part
$3.91
31
1614601053 Wire Retainer by Bosch
$3.91
32
1610508051 Rubber Bushing by Bosch
$4.89
33
1610322014 Switching Element by Bosch
$4.89
34
1610905034 Deep-groove Ball Bearing by Bosch
$7.01
36
1610551008 Holding Plate by Bosch
$3.91
37
1610100016 Guide Disc | Genuine OEM Bosch Part
$3.91
38
1616317072 Cylindrical Gear by Bosch
$7.01
39
1614601055 Retaining Ring by Bosch
$3.91
40
1613100032 Straight Pin by Bosch
$3.91
41
1610102072 Ratchet Disc by Bosch
$6.11
42
1610301004 Friction Bearing by Bosch
$3.91
44
1610190054 Supporting Disc by Bosch
$3.91
46
1614630002 Compression Spring by Bosch
$3.91
47
1610905035 Deep-groove Ball Bearing by Bosch
$21.32
48
1614601054 Retaining Ring by Bosch
$3.91
49
1619P00829 Retaining Ring by Bosch
$3.91
50
1610400039 Guide Bushing by Bosch
$5.28
51
1613231014 Shift Plate | Genuine OEM Bosch Part
$3.91
52
1614690005 Coiled Spring by Bosch
$3.91
53
1619P00828 Pressure Disc by Bosch
$3.91
54
1613100033 Guide Pin | Genuine OEM Bosch Part
$3.91
55
1610508052 Protective Cap by Bosch
$3.91
60
3600224038 C-clip | Genuine OEM Bosch Part
$3.91
63
1903230013 Ball | Genuine OEM Bosch Part
$3.91
65
1610210186 O-ring | Genuine OEM Bosch Part
$3.91
67
1610905033 Deep-groove Ball Bearing by Bosch
$9.32
68
1614601052 Plain Washer by Bosch
$3.91
69
1613231016 Change-over Switch by Bosch
$3.91
71
1619P00219 Self-tapping Screw by Bosch
$3.91
72
1619P00220 Torx Oval-head Screw by Bosch
$3.91
73
2914201483 Torx Oval-head Screw by Bosch
$3.91
801
1619P01707 Housing | Genuine OEM Bosch Part
$38.50
803
1619P01709 Armature | Genuine OEM Bosch Part
$69.56
808
1619P01733 Nameplate | Genuine OEM Bosch Part
$3.91
816
1619P01777 Carbon-brush Set by Bosch
$12.57
818
1619P01772 Intermediate Flange by Bosch
$15.77
820
1619P01783 Switch Button by Bosch
$3.91
821
1619P01773 Hammer Pipe | Genuine OEM Bosch Part
$69.56
822
1619P01767 Transmission Shaft by Bosch
$43.33
830
1619P01775 Drive End Shield by Bosch
$24.90
856
1619P02182 Protection Sleeve by Bosch
$7.08
870
1619P01978 Connecting Cable by Bosch
$5.28
651
2602025149 Auxiliary Handle by Bosch
$9.50
652
2609005615 Depth-gauge | Genuine OEM Bosch Part
$5.38
655
1618571031 Key Chuck | Genuine OEM Bosch Part
$37.75
655
2607950007 Chuck Key | Genuine OEM Bosch Part
$6.16
872
2607950007 Chuck Key | Genuine OEM Bosch Part
$6.16
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
