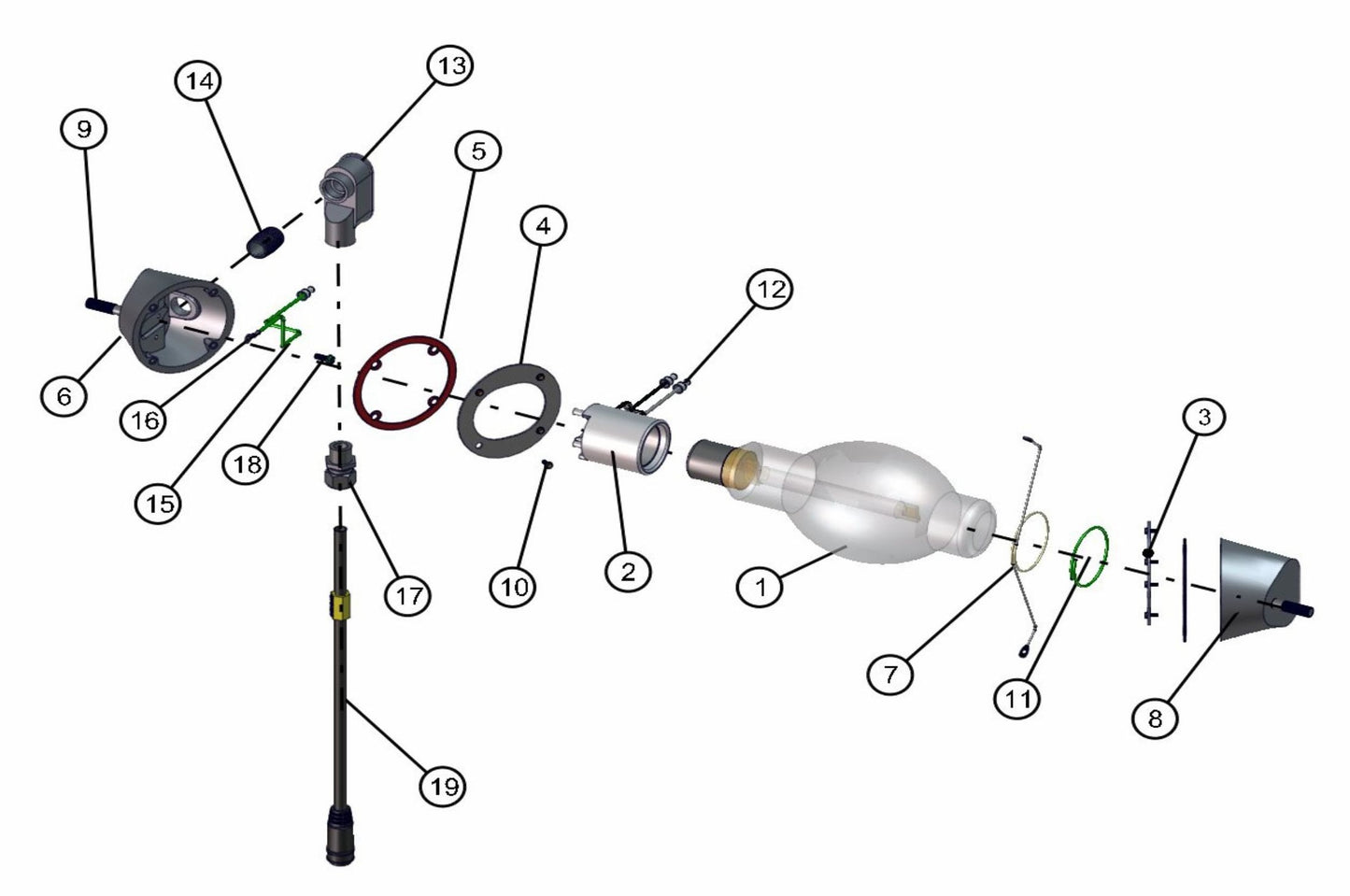

1250W SHO Lamp Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

1250W SHO Lamp Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

  • 1250W SHO Lamp Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
610221 1250W Lamp Bt37 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$356.73
2
610212 Ceramic Socket for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$84.00
3
610207 Interior Cover Plate for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$20.78
4
610208 Interior Cover Plate for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$20.78
5
610213 Gasket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$7.28
6
610205 End Cap Socket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$109.99
7
610209 Lamp Support Tip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$15.26
8
610206 End Cap for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$109.99
9
045142 Stud 3/8-24 X 3/8-16 X 2" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
10
041028 10-24 X 1/2 Hex Mach Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
11
610210 Fiberglass Tube X 12 Lamp Support Tip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
12
022060 Wire Cap Small for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
13
610214 Elbow for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$56.00
14
610215 Nipple for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
16
022155 #10 Elec. Ring for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
17
510007 1/2 Dia Cord Grip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$32.21
18
041257 10-32 Ground Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
19
310434 Male Connector Cable for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$182.48
15
Call for Price call for price call for price
