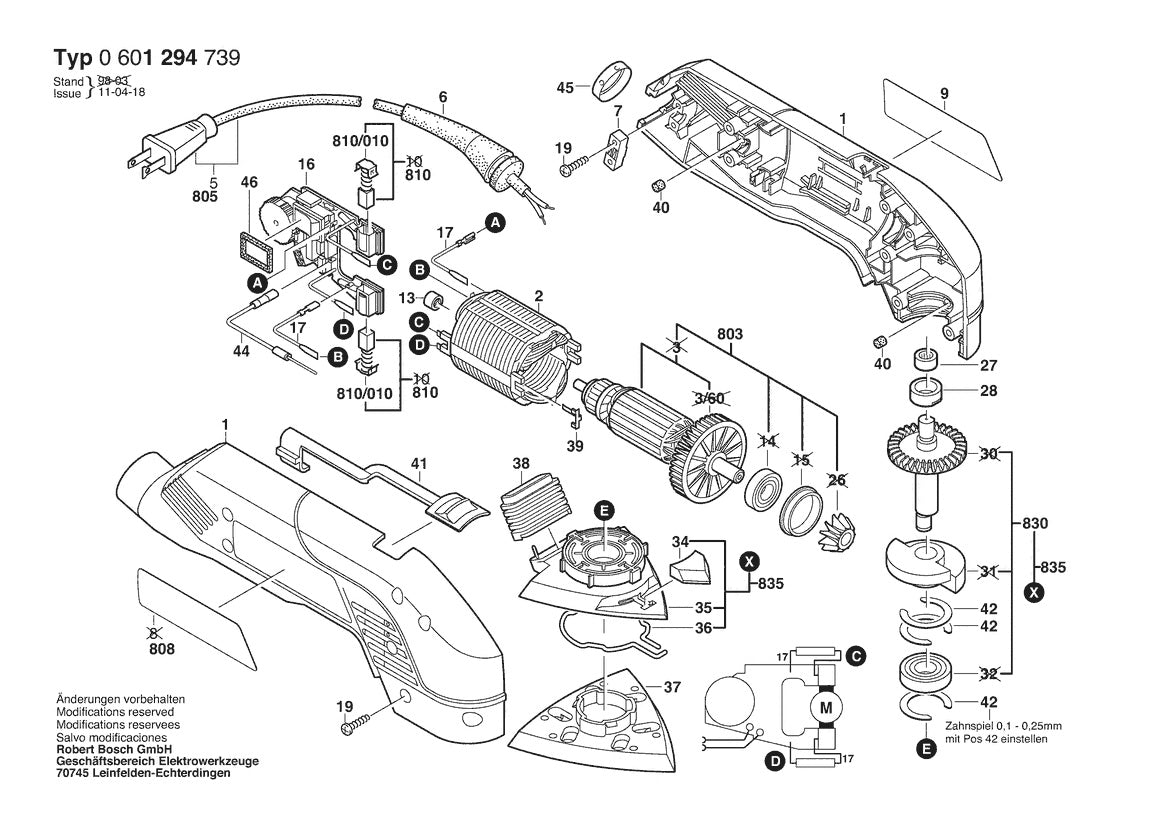

1294VSK (0601294739) Bosch Corner Bosch Sander Parts Diagram

1294VSK (0601294739) Bosch Corner Bosch Sander Parts Diagram

  • 1294VSK (0601294739) Bosch Corner Bosch Sander Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2604220577 Field | Genuine OEM Bosch Part
$19.87
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
9
2610994078 Manufacturer's Nameplate by Bosch
$3.91
13
2600917002 Needle Bushing by Bosch
$3.91
16
2607233024 Governor | Genuine OEM Bosch Part
$44.19
17
2604448034 Connecting Cable by Bosch
$3.91
27
1600910018 Needle Bushing by Bosch
$3.91
28
2600390026 Bearing Carrier by Bosch
$3.91
34
2608000173 Catch Slide | Genuine OEM Bosch Part
$4.89
36
2604680000 Clamping Spring by Bosch
$3.91
37
2608000174 Sander Plate by Bosch
$17.80
39
2601329037 Contact Spring by Bosch
$3.91
40
2603100056 Rubber Buffer by Bosch
$3.91
41
2602319010 Switch Slide by Bosch
$3.91
42
2600101088 Shim | Genuine OEM Bosch Part
$3.91
42
2600101089 Shim | Genuine OEM Bosch Part
$3.91
42
2600101090 Shim | Genuine OEM Bosch Part
$3.91
42
2600101091 Shim | Genuine OEM Bosch Part
$3.91
45
2600290025 Clamping Ring by Bosch
$3.91
803
2604010939 Armature | Genuine OEM Bosch Part
$49.20
810
2607014010 Carbon-brush Set by Bosch
$8.18
830
2606100900 Bevel Gear Shaft by Bosch
$40.41
835
2601098900 Tool Holding Fixture by Bosch
$70.27
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
