13624-2G (0601913270) Bosch 24V Brute Tough 1 Bosch Hammer Drill Parts Diagram

13624-2G (0601913270) Bosch 24V Brute Tough 1 Bosch Hammer Drill Parts Diagram

  • 13624-2G (0601913270) Bosch 24V Brute Tough 1 Bosch Hammer Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
2605500169 Protective Cap by Bosch
$14.04
5
2601099112 Adjusting Slide Lever-red by Bosch
$4.89
7
2607200458 On-off Switch by Bosch
$69.56
10
2600508051 Cover | Genuine OEM Bosch Part
$4.89
11
2600508052 Cover | Genuine OEM Bosch Part
$4.89
12
2606316222 Pinion | Genuine OEM Bosch Part
$5.28
32
2601099127 Adjusting Slide by Bosch
$6.11
61
2608040190 Support | Genuine OEM Bosch Part
$12.34
101
2603490018 Screw | Genuine OEM Bosch Part
$3.91
107
2603421229 Torx Flat Head Screw by Bosch
$3.91
108
2604690027 Spring Element by Bosch
$3.91
652
2609100101 Cap | Genuine OEM Bosch Part
$3.91
655
2602025126 Auxiliary Handle by Bosch
$12.34
802
2607022855 Direct-current Motor by Bosch
$182.82
816
2607034904 Carbon Brush Set by Bosch
$12.46
845
2606200937 Drive Assembly by Bosch
$209.32
View full details

Frequently asked questions

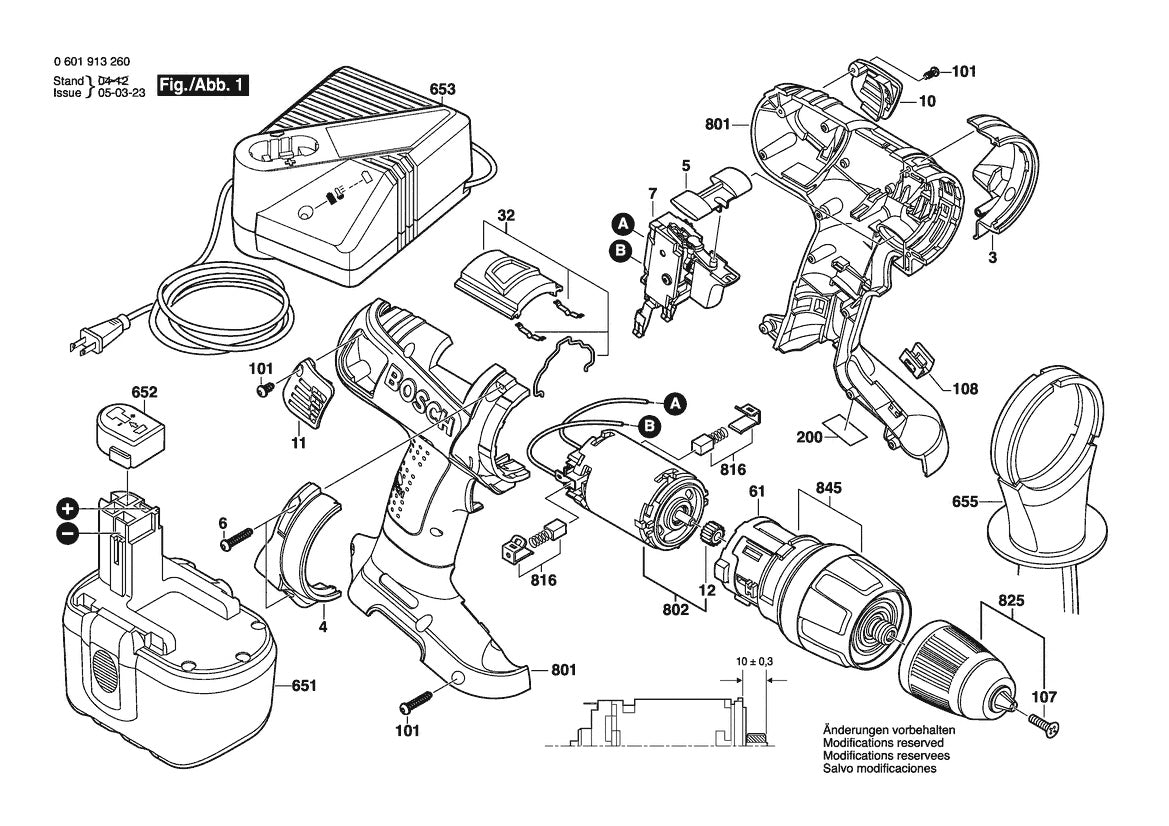

How do I use this diagram?
