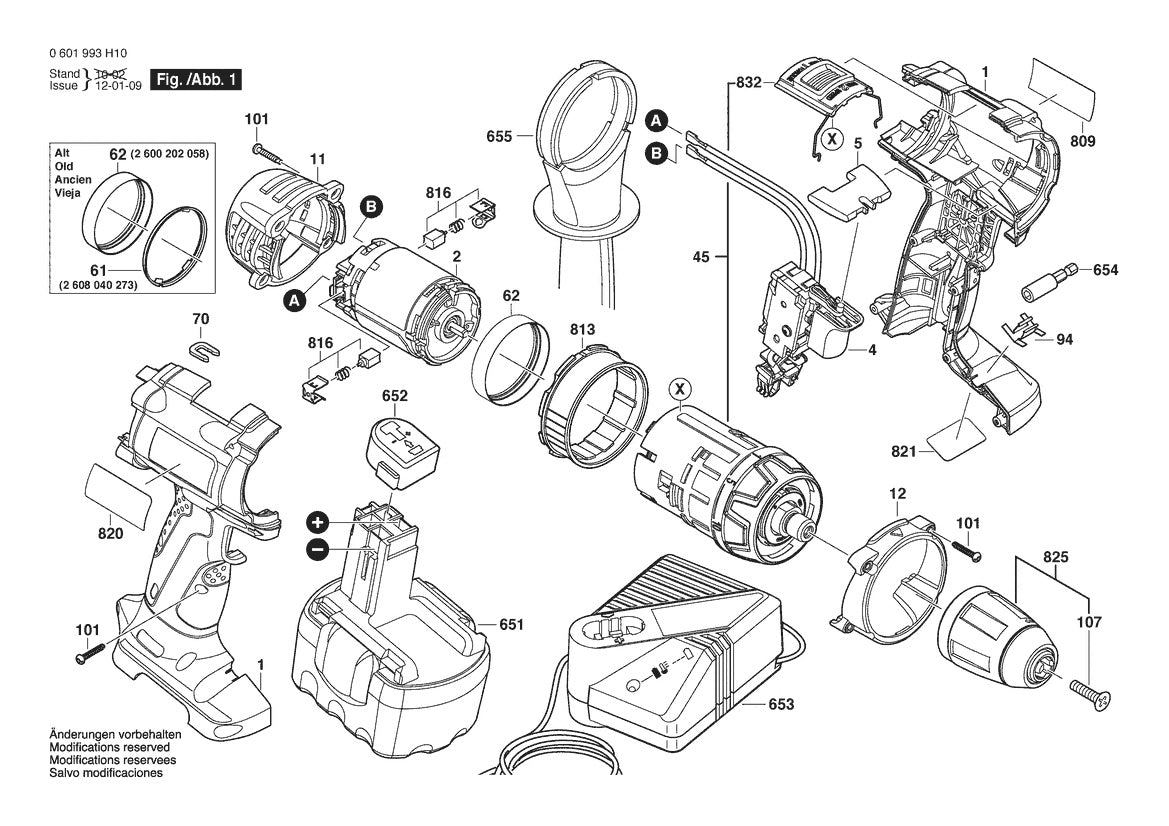

15614 (0601994H10) Bosch 14.4V Brute Tough 1 Bosch Hammer Drill Parts Diagram

15614 (0601994H10) Bosch 14.4V Brute Tough 1 Bosch Hammer Drill Parts Diagram

  • 15614 (0601994H10) Bosch 14.4V Brute Tough 1 Bosch Hammer Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2605105101 Housing Section by Bosch
$27.69
1
2605105102 Housing Section by Bosch
$22.66
2
2607022319 Dc Motor | Genuine OEM Bosch Part
$74.45
4
2607230121 Electronics Module by Bosch
$53.92
4
2607230122 Electronics Module by Bosch
$59.61
5
2601099155 Adjusting Lever by Bosch
$3.91
11
2600508064 End Cap | Genuine OEM Bosch Part
$6.11
12
2600510011 End Cap | Genuine OEM Bosch Part
$4.89
13
2600510012 Cap-handle | Genuine OEM Bosch Part
$3.91
32
2601099213 Adjusting Lever by Bosch
$9.32
45
2606200254 Epicycloidal Gear Train by Bosch
$126.25
70
2601250009 Pickup Clip | Genuine OEM Bosch Part
$3.91
94
2604690043 Spring Element by Bosch
$3.91
101
2603490018 Screw | Genuine OEM Bosch Part
$3.91
107
2603421229 Torx Flat Head Screw by Bosch
$3.91
652
2609100101 Cap | Genuine OEM Bosch Part
$3.91
654
41180 Mag Bit Holder | Genuine OEM Bosch Part
$5.90
655
2602025158 Auxiliary Handle by Bosch
$19.48
813
2607034904 Carbon Brush Set by Bosch
$12.46
816
2601115359 Reference Plate by Bosch
$3.91
820
2608572902 Keyless Chuck by Bosch
$85.41
View full details
