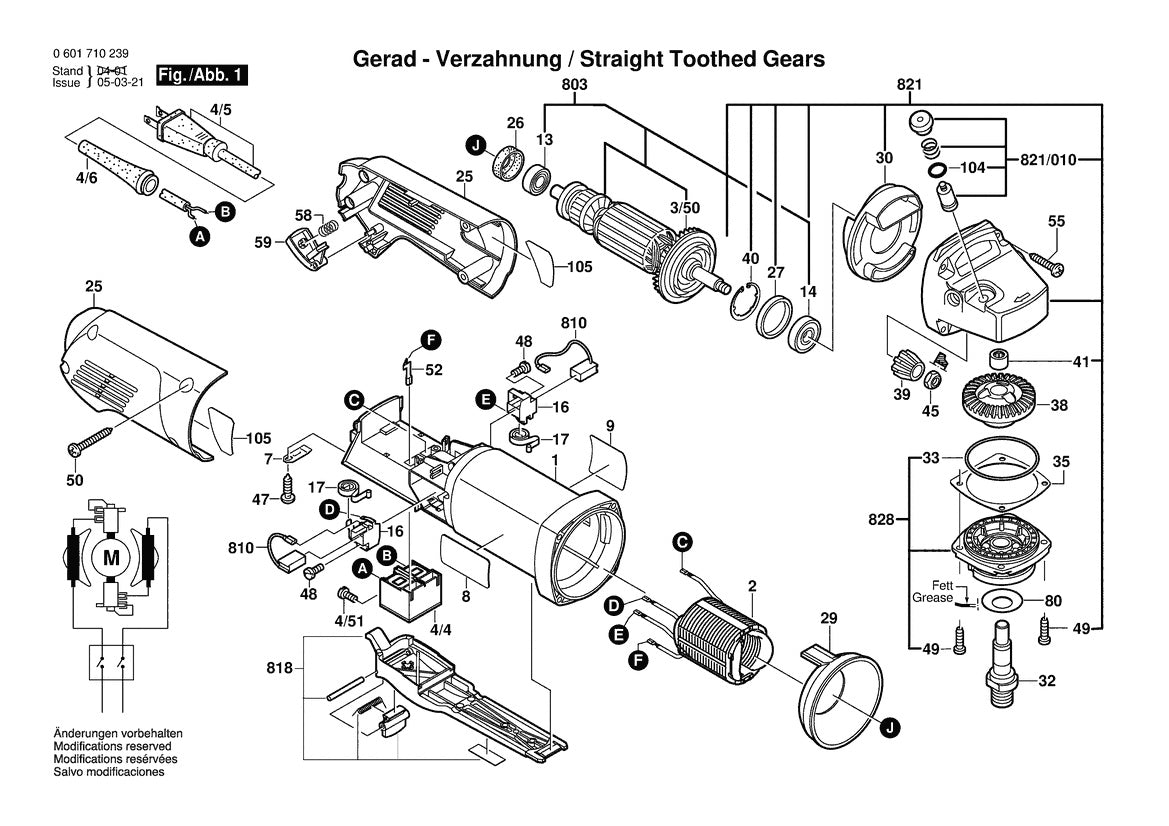

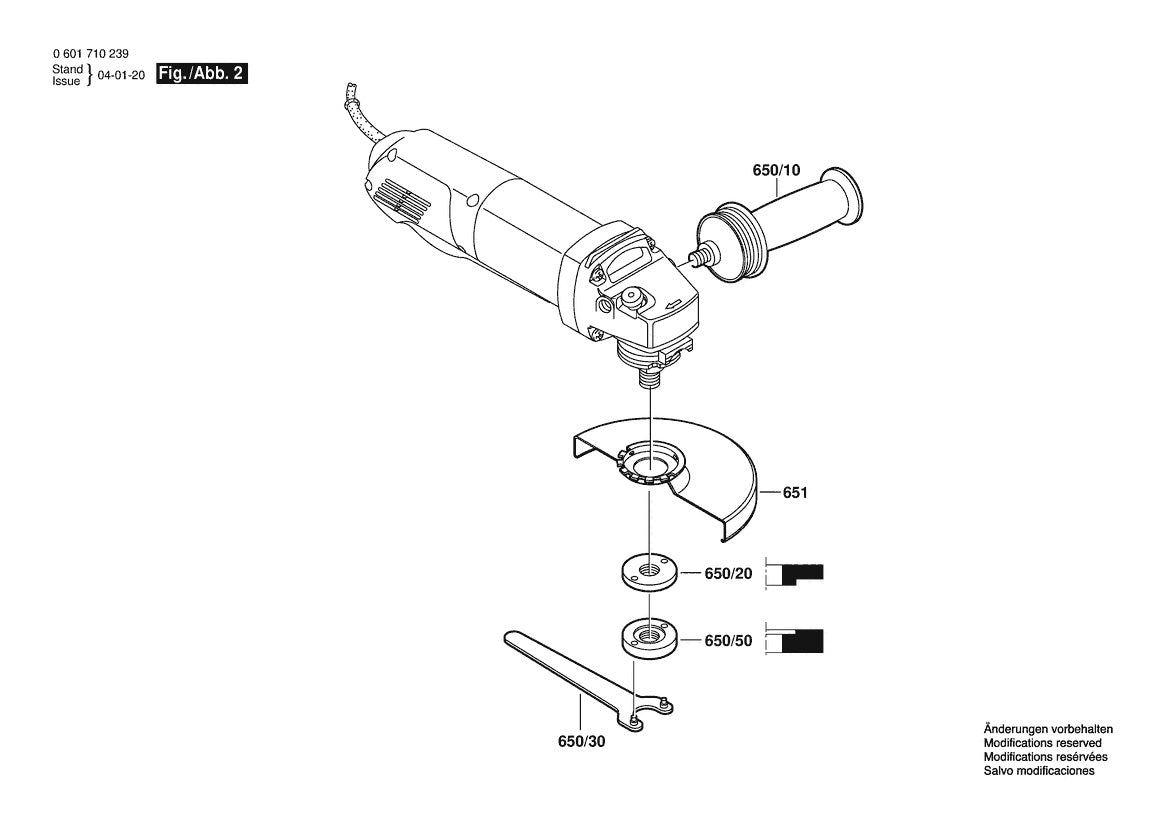

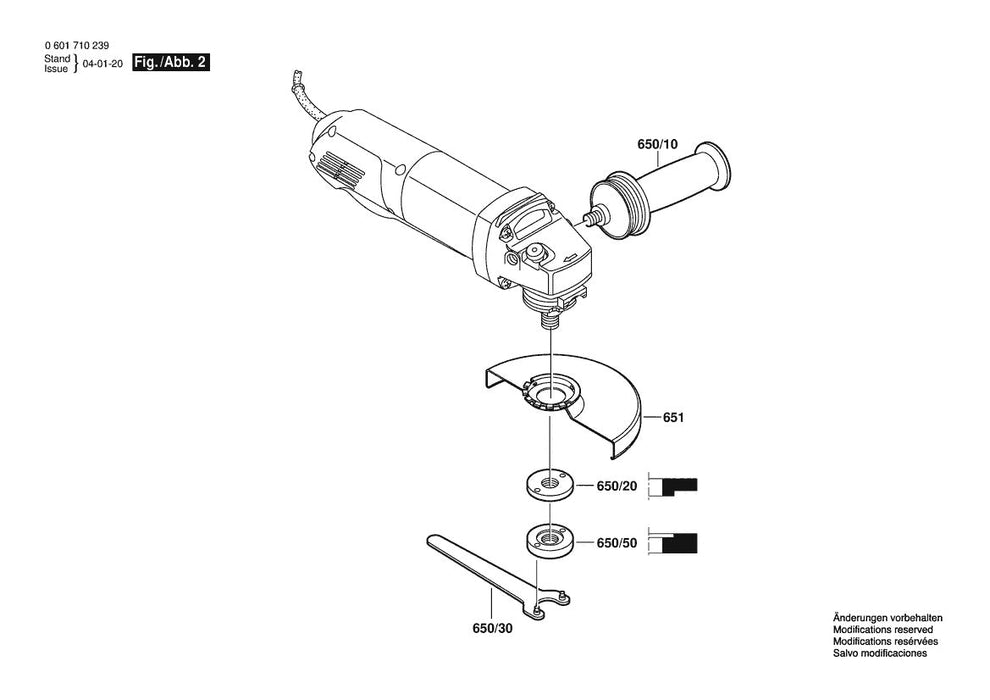

1710 (0601710239) Bosch 4-1 Bosch Grinder Parts Diagram

1710 (0601710239) Bosch 4-1 Bosch Grinder Parts Diagram

Skip to product information
1 of 2
Ref. Details
1
1605108222 Motor Housing by Bosch
$19.48
2
1604220306 Field | Genuine OEM Bosch Part
$34.71
3
1606610129 Fan | Genuine OEM Bosch Part
$3.91
50
1606610129 Fan | Genuine OEM Bosch Part
$3.91
4
1607200155 On-off Switch by Bosch
$17.80
4
1607200155 On-off Switch by Bosch
$17.80
4
3604460555 Cord | Genuine OEM Bosch Part
$10.84
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
4
1603415004 Lens Head Screw by Bosch
$3.91
51
1603415004 Lens Head Screw by Bosch
$3.91
4
1600703031 Grommet | Genuine OEM Bosch Part
$4.89
6
1600703031 Grommet | Genuine OEM Bosch Part
$4.89
5
1601302017 Fastening Clamp by Bosch
$3.91
6
1601118C43 Manufacturers Nameplate by Bosch
$3.91
7
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
9
1600905016 Deep-groove Ball Bearing by Bosch
$9.50
13
1601323025 Brush Holder by Bosch
$3.91
14
1600508031 Housing Cover by Bosch
$12.34
16
1600502023 Intermediate Ring by Bosch
$3.91
25
1600206025 Intermediate Ring by Bosch
$3.91
26
1600591038 Air-deflector Ring by Bosch
$3.91
27
1600591014 Air-deflector Ring by Bosch
$3.91
29
1607000D6B Grinding Spindle by Bosch
$10.84
30
3600210124 O-ring | Genuine OEM Bosch Part
$3.91
32
1600136013 Shim | Genuine OEM Bosch Part
$3.91
33
1600136014 Shim 0,2 Mm Thick by Bosch
$3.91
35
1600136015 Shim | Genuine OEM Bosch Part
$3.91
35
1607000D4Y Crown Gear | Genuine OEM Bosch Part
$17.80
35
1606333617 Bevel Gear | Genuine OEM Bosch Part
$8.18
38
1600119011 C-clip | Genuine OEM Bosch Part
$3.91
39
1600910018 Needle Bushing by Bosch
$3.91
40
1603300016 Hexagon Nut | Genuine OEM Bosch Part
$3.91
41
2912401018 Sheet Metal Screw by Bosch
$3.91
45
2912401005 Sheet Metal Screw by Bosch
$3.91
47
1603435026 Threaded-furrow Screw by Bosch
$3.91
48
1603435051 Sheet Metal Screw by Bosch
$3.91
49
1604478015 Connection Part by Bosch
$3.91
50
2912401022 Sheet Metal Screw by Bosch
$3.91
51
1604617012 Compression Spring by Bosch
$3.91
52
1602026072 Switch Button by Bosch
$3.91
55
1619P09390 Cover Disc | Genuine OEM Bosch Part
$3.91
58
1600210044 O-ring | Genuine OEM Bosch Part
$3.91
59
1601071000 Insulating Plate by Bosch
$3.91
80
1607000729 Switch-pawl | Genuine OEM Bosch Part
$10.84
104
1602025031 Auxiliary Handle by Bosch
$21.76
105
1607950052 Spanner Wrench by Bosch
$3.91
180
2610992248 Flange | Genuine OEM Bosch Part
$3.91
650
2610910341 Flange | Genuine OEM Bosch Part
$4.89
10
2610910341 Flange | Genuine OEM Bosch Part
$4.89
650
1605510361 Protective Cover by Bosch
$19.87
30
1605510361 Protective Cover by Bosch
$19.87
650
1604010635 Armature | Genuine OEM Bosch Part
$60.81
20
1604010635 Armature | Genuine OEM Bosch Part
$60.81
650
1607014176 Carbon Brush Set by Bosch
$4.89
50
1607014176 Carbon Brush Set by Bosch
$4.89
651
1605806502 Gear Housing by Bosch
$48.23
803
1607000253 Push Button | Genuine OEM Bosch Part
$3.91
810
1607000347 Bearing Flange by Bosch
$19.87
