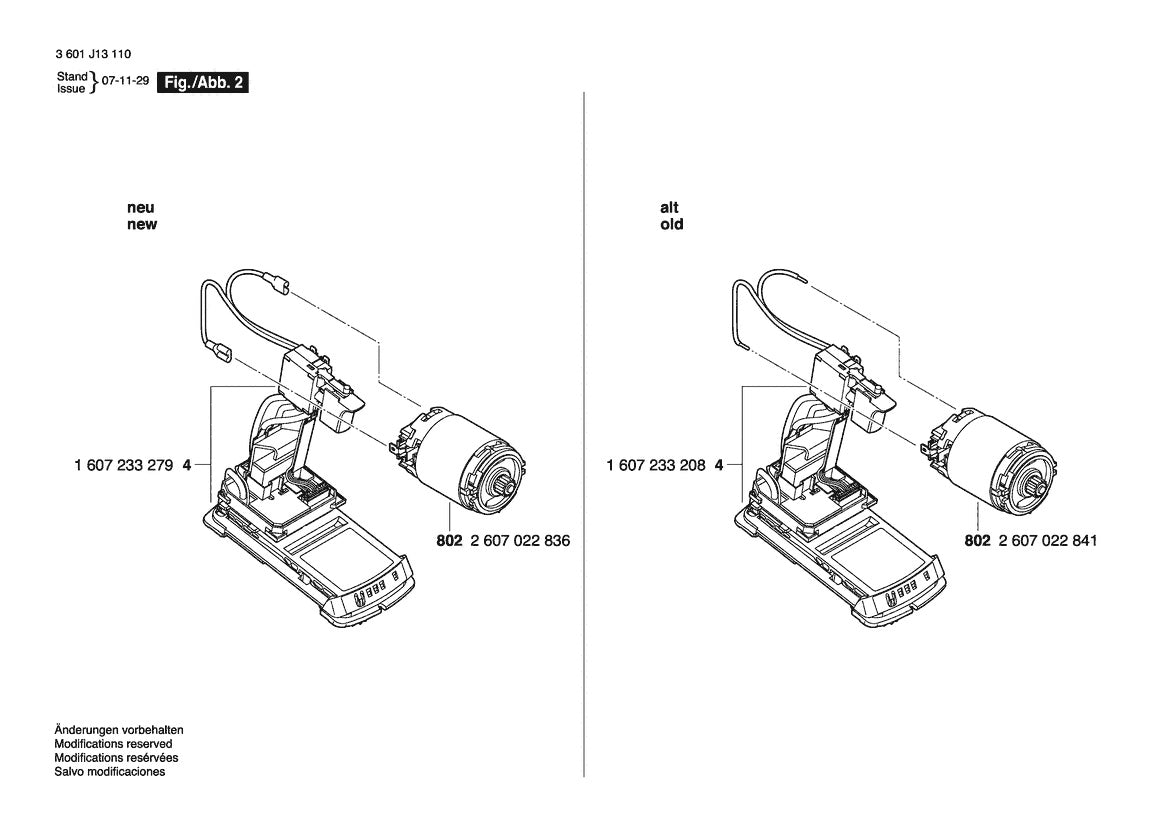

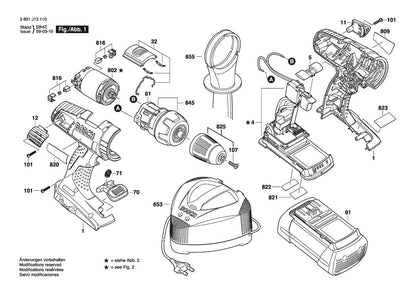

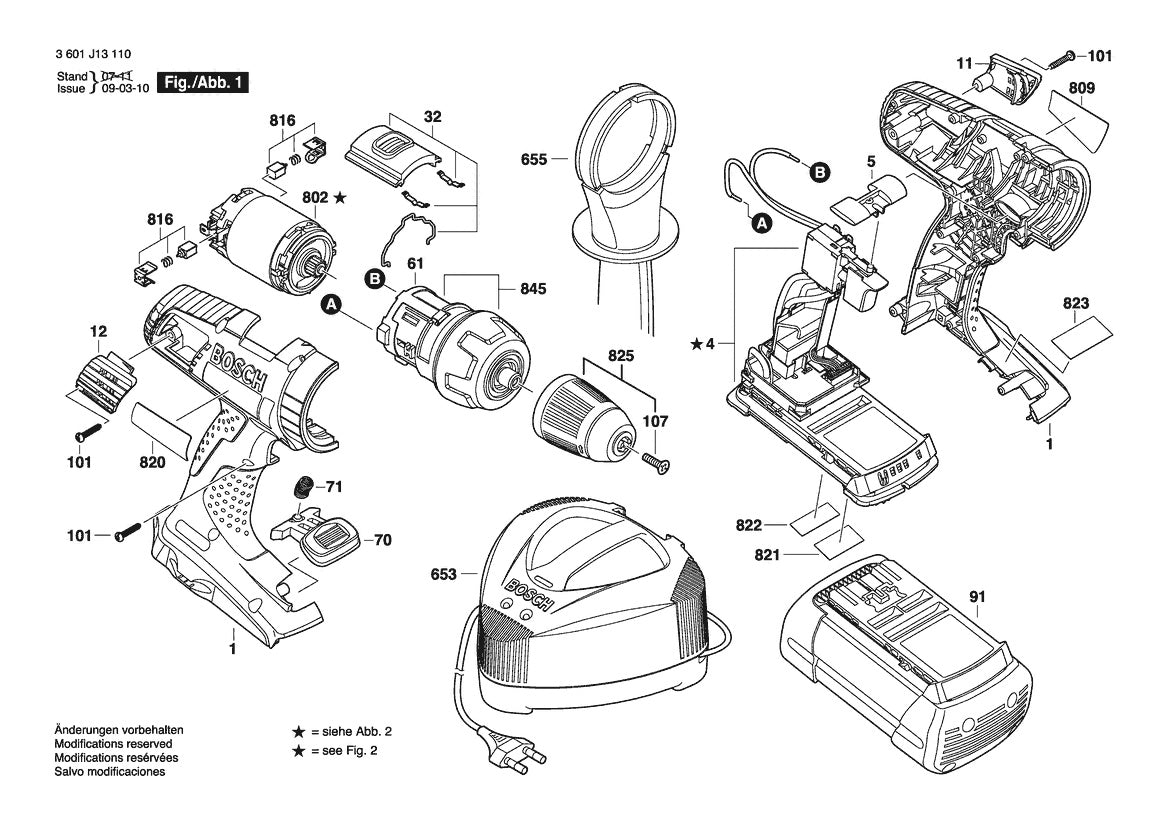

18636-03 (3601J13110) Bosch 36V Brute Tough 1 Bosch Hammer Drill Parts Diagram

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
