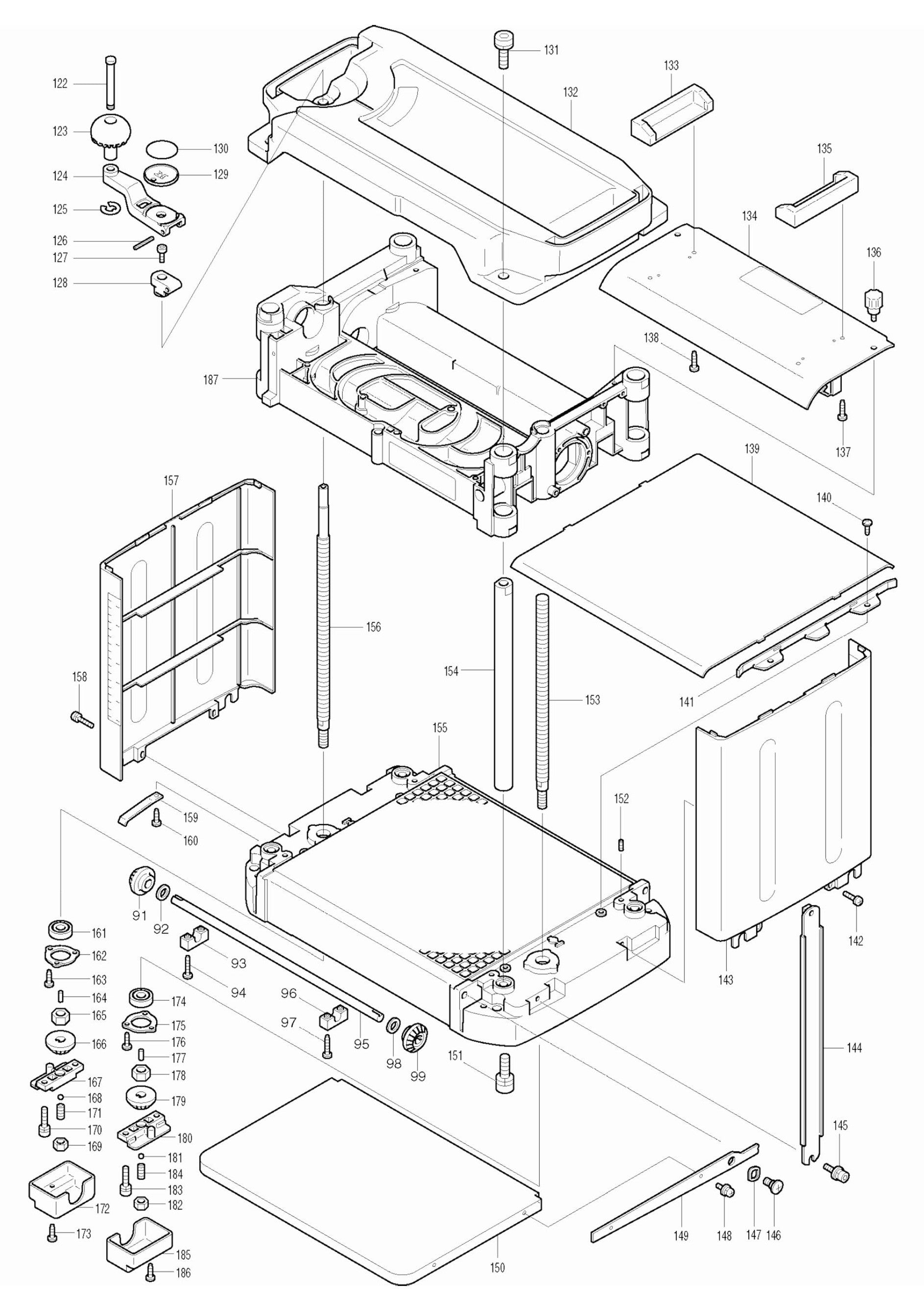

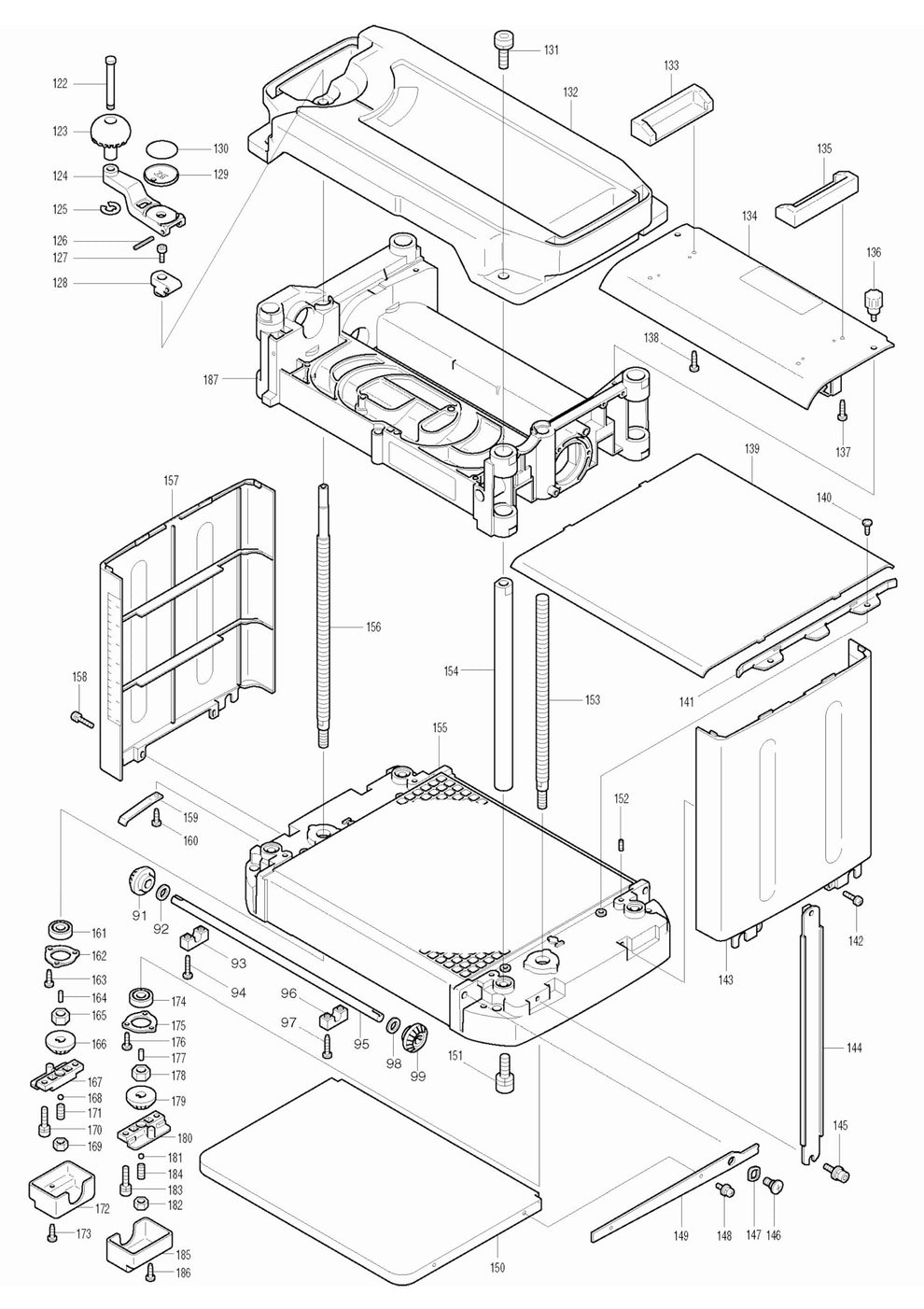

2012NB Planer Assembly-2 Parts By Makita

2012NB Planer Assembly-2 Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
91
2267860 STRAIGHT BEVEL GEAR 15, 2012NB BY MAKITA
$5.99
99
2267860 STRAIGHT BEVEL GEAR 15, 2012NB BY MAKITA
$5.99
92
2538287 FLAT WASHER 10, 2012NB BY MAKITA
$3.99
98
2538287 FLAT WASHER 10, 2012NB BY MAKITA
$3.99
93
4170340 SHAFT RETAINER, 2012NB BY MAKITA
$3.99
96
4170340 SHAFT RETAINER, 2012NB BY MAKITA
$3.99
94
2660400 TAPPING SCREW, 2012NB BY MAKITA
$3.99
97
2660400 TAPPING SCREW, 2012NB BY MAKITA
$3.99
95
3239262 SHAFT 10, 2012NB BY MAKITA
$12.41
122
2566886 PIN 8, 2030S BY MAKITA
$10.57
123
2712962 KNOB 45, 2030S BY MAKITA
$5.99
124
2720280 HANDLE, 2012NB BY MAKITA
$5.99
124
2720264 HANDLE 160, 2012NB BY MAKITA
$7.76
125
9610127 STOP RING E6, 2030S BY MAKITA
$3.99
126
9511228 SPRING PIN 428, 2012NB BY MAKITA
$3.99
127
2660866 H.S.H.BOLT M5X16,DA4031 BY MAKITA
$3.99
128
3177600 JOINT, 2012NB BY MAKITA
$5.99
128
3172618 JOINT, 2012NB BY MAKITA
$9.63
129
4170324 GAUGE, 2012NB BY MAKITA
$3.99
131
2662402 H.S.H. BOLT M10X25 2012NB BY MAKITA
$5.99
151
2662402 H.S.H. BOLT M10X25 2012NB BY MAKITA
$5.99
132
1537816 TOP COVER CPL.,2012NB BY MAKITA
$61.24
132
1519202 TOP COVER CPL.2012NB BY MAKITA
$52.50
133
4170366 TOOL BOX HOLDER, 2012NB BY MAKITA
$5.99
135
4170366 TOOL BOX HOLDER, 2012NB BY MAKITA
$5.99
134
1653797 CHIP COVER, 2012NB BY MAKITA
$18.32
134
1652725 CHIP COVER, 2012NB BY MAKITA
$15.41
136
2657166 SCREW M5X10, 3901 BY MAKITA
$7.90
137
2659956 TAPPING SCREW 4X18, BO4556K BY MAKITA
$3.99
139
3448166 TABLE PLATE, 2012NB BY MAKITA
$20.08
140
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
160
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
163
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
173
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
176
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
186
2660264 TAPPING SCREW 4X12, LS1016L BY MAKITA
$3.99
141
3448190 GUIDE PLATE, 2012NB BY MAKITA
$5.99
142
9111288 P.H. SCREW M4X16, LXPK01 BY MAKITA
$3.99
158
9111288 P.H. SCREW M4X16, LXPK01 BY MAKITA
$3.99
143
4170405 SIDE COVER, 2012NB BY MAKITA
$14.63
144
3448205 SIDE BEAM, 2012NB BY MAKITA
$5.99
145
9223235 H.S.H. BOLT M6X16,2012NB BY MAKITA
$3.99
146
2512170 SCREW M8, 2012 BY MAKITA
$3.99
147
2539322 W. WASHER 10, LS1016L BY MAKITA
$3.99
148
9111084 P.H. SCREW M4X8, LS1013 BY MAKITA
$3.99
149
3448182 ARM, 2012NB BY MAKITA
$5.99
150
3448174 SUB TABLE PLATE, 2012NB BY MAKITA
$13.76
152
2662135 H.S.H. SCREW M5X12, 5007F BY MAKITA
$3.99
153
3239254 SCREW L, 2012NB BY MAKITA
$18.66
154
3315620 COLUMN 20, 2012NB BY MAKITA
$18.60
155
3177634 TABLE,2012NB BY MAKITA
$90.51
155
3172668 TABLE, 2012NB BY MAKITA
$64.90
156
3239246 SCREW R, 2012NB BY MAKITA
$25.62
157
1518866 SIDE COVER CPL.2012NB BY MAKITA
$11.08
159
2321953 LEAF SPRING, 2012NB BY MAKITA
$3.99
161
2110887 BALL BEARING 6000DDW, 9005B BY MAKITA
$13.46
174
2110887 BALL BEARING 6000DDW, 9005B BY MAKITA
$13.46
162
2856986 BEARING RETAINER 33, 2012NB BY MAKITA
$3.99
175
2856986 BEARING RETAINER 33, 2012NB BY MAKITA
$3.99
164
2562264 PIN 4, LS1016L BY MAKITA
$3.99
177
2562264 PIN 4, LS1016L BY MAKITA
$3.99
165
2521648 HEX.NUT M1017, 2012NB BY MAKITA
$3.99
178
2521648 HEX.NUT M1017, 2012NB BY MAKITA
$3.99
166
2267917 STRAIGHT BEVEL GEAR 15, 2012NB BY MAKITA
$5.99
179
2267917 STRAIGHT BEVEL GEAR 15, 2012NB BY MAKITA
$5.99
167
3172600 SUPPORTER, 2012NB BY MAKITA
$8.03
180
3172600 SUPPORTER, 2012NB BY MAKITA
$8.03
168
2160117 STEEL BALL 5.6, LXDT08 BY MAKITA
$3.99
181
2160117 STEEL BALL 5.6, LXDT08 BY MAKITA
$3.99
169
9314036 HEX NUT M8, 406 BY MAKITA
$3.99
182
9314036 HEX NUT M8, 406 BY MAKITA
$3.99
170
9222310 H.S.H. BOLT M5X20, HR2010 BY MAKITA
$3.99
183
9222310 H.S.H. BOLT M5X20, HR2010 BY MAKITA
$3.99
171
2658463 H.S.H. BOLT M8X16,2012NB BY MAKITA
$3.99
184
2658463 H.S.H. BOLT M8X16,2012NB BY MAKITA
$3.99
172
4170308 GEAR COVER, 2012NB BY MAKITA
$5.99
185
4170308 GEAR COVER, 2012NB BY MAKITA
$5.99
187
1537840 MAIN FRAME CPL.,2012NB BY MAKITA
$102.52
187
1518882 MAIN FRAME CPL.2012NB BY MAKITA
$73.10
130
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
