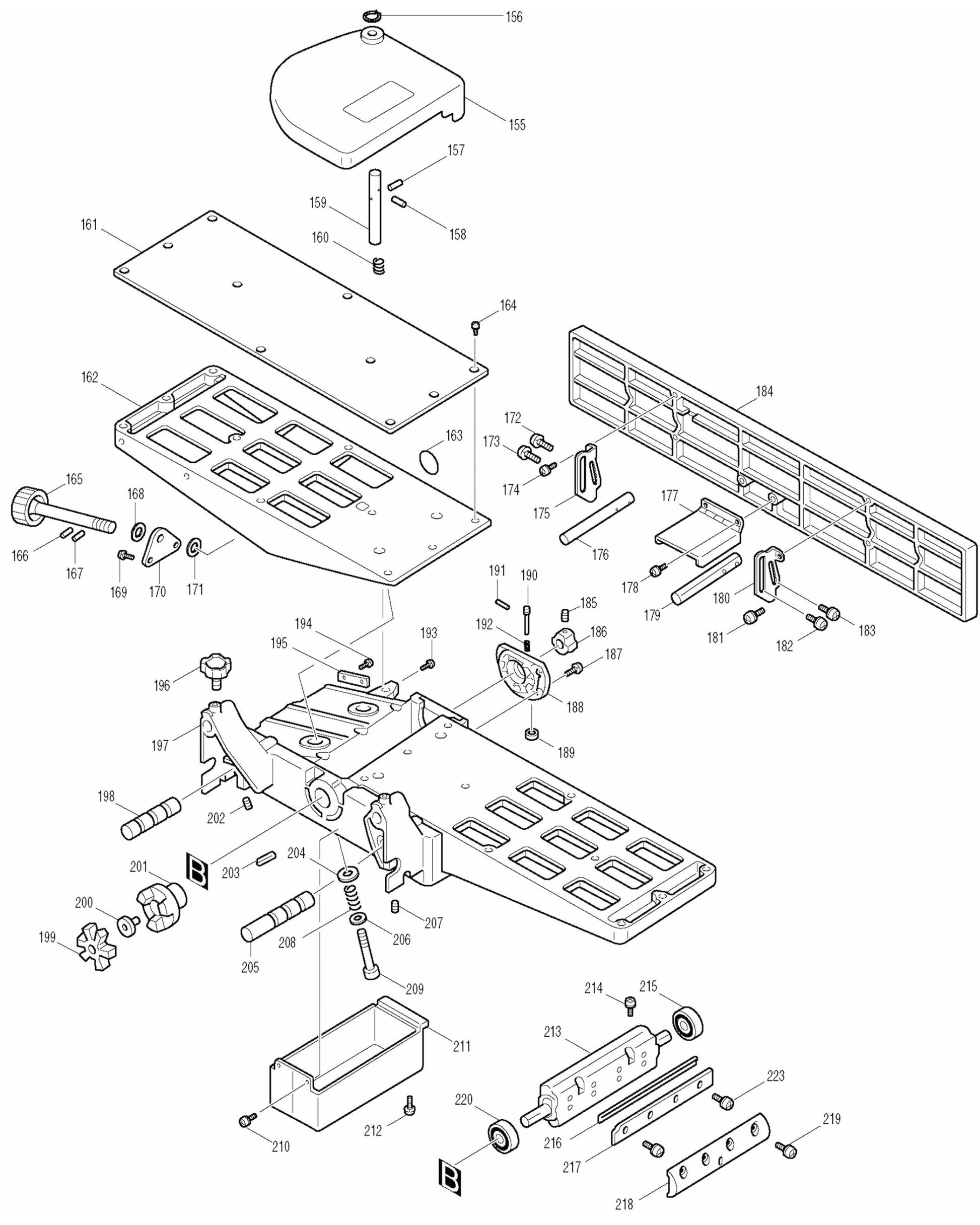

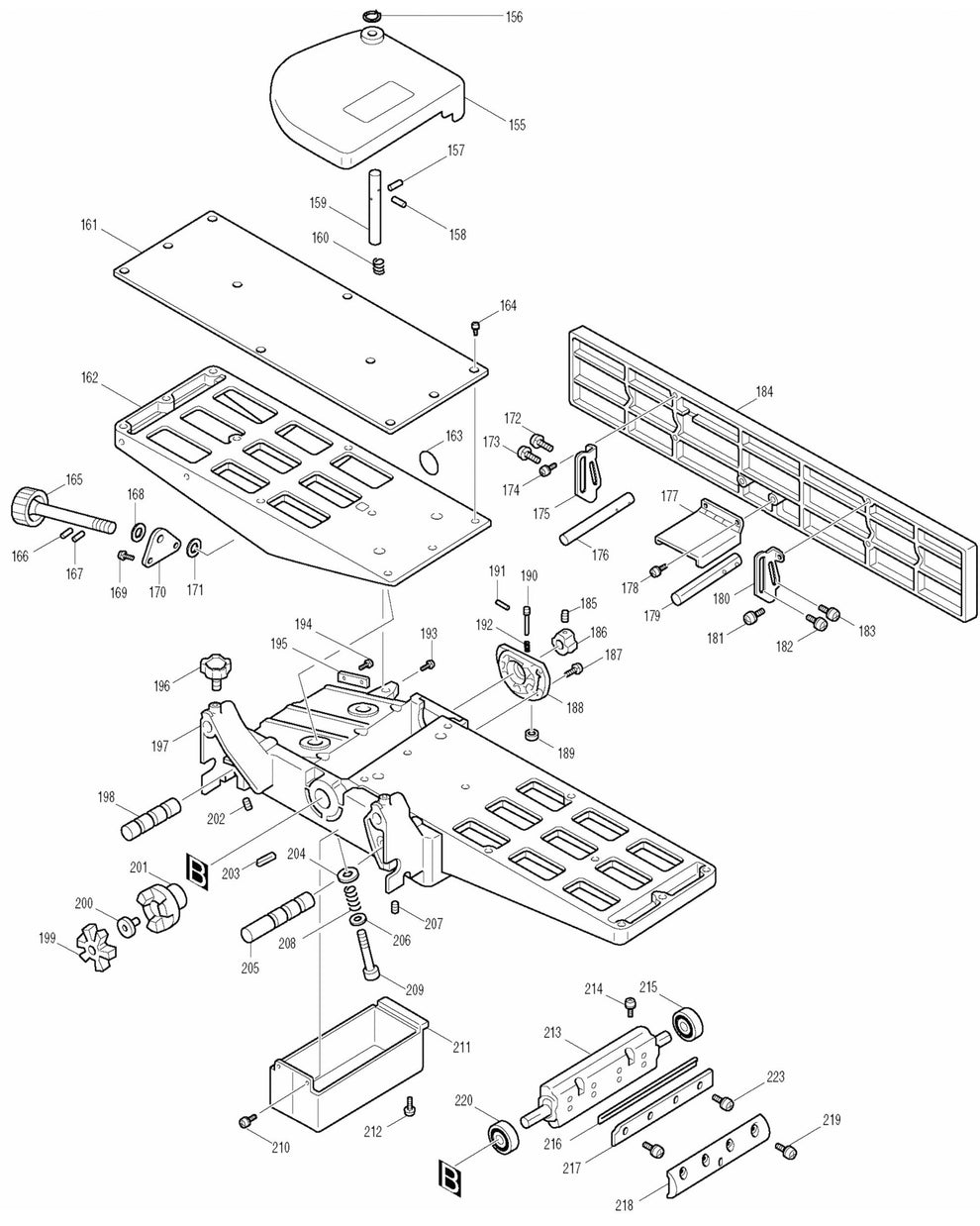

2030S 12 Inch Planer Jointer Assembly-3 Parts By Makita

2030S 12 Inch Planer Jointer Assembly-3 Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
155
1514121 DRUM COVER COMPLETE, 2030S BY MAKITA
$13.57
155
1514951 DRUM COVER CPL.,2030S BY MAKITA
$10.30
156
9610525 RETAINING RING S12, LS1016L BY MAKITA
$3.99
157
9511105 SPRING PIN 416, 2030S BY MAKITA
$3.99
158
9511252 SPRING PIN 432, GS5000 BY MAKITA
$3.99
159
2569282 ROD 1295, 2030S BY MAKITA
$13.50
160
2315213 TOR. SPRING 14, 2030S BY MAKITA
$3.99
161
3440647 BED PLATE, 2030S BY MAKITA
$30.13
162
3165176 ADJUST BED, 2030S BY MAKITA
$170.10
164
9121176 C.S.H. SCREW M4X12, BO4556 BY MAKITA
$3.99
165
2712742 KNOB 40, 2030S BY MAKITA
$28.64
166
9511139 SPRING PIN 418, LS1020 BY MAKITA
$3.99
168
2537582 F. WASHER 10, JS1602 BY MAKITA
$3.99
171
2537582 F. WASHER 10, JS1602 BY MAKITA
$3.99
169
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
174
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
178
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
181
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
187
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
210
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
212
9112234 P.H. SCREW M5X16, 5007MG BY MAKITA
$3.99
170
3440736 SCREW HOLDER, 2030S BY MAKITA
$3.99
172
2516093 H.F.H. BOLT M6X17, LXPK01 BY MAKITA
$3.99
182
2516093 H.F.H. BOLT M6X17, LXPK01 BY MAKITA
$3.99
219
2516093 H.F.H. BOLT M6X17, LXPK01 BY MAKITA
$3.99
175
3440728 GUIDE FENCE HOLDER(L), 2030S BY MAKITA
$5.99
176
3226449 GUIDE FENCE BAR, 2030S BY MAKITA
$12.08
179
3226449 GUIDE FENCE BAR, 2030S BY MAKITA
$12.08
177
1633319 SAFETY COVER, 2030S BY MAKITA
$12.08
180
3440710 GUIDE FENCE HOLDER (R), 2030S BY MAKITA
$5.99
184
1507011 GUIDE FENCE COMPLETE, 2030S BY MAKITA
$144.00
185
9132060 SET SCREW M5X8, GA7911 BY MAKITA
$3.99
186
3130680 LOCK SLEEVE, 2030S BY MAKITA
$12.11
188
4153407 BEARING COVER, 2030S BY MAKITA
$8.07
189
2524159 NUT N412, 2030S BY MAKITA
$3.99
190
3226431 STOPPER PIN, 2030S BY MAKITA
$8.07
191
2567248 PIN 2, 2030S BY MAKITA
$3.99
192
2313033 COMP. SPRING 5, 2030S BY MAKITA
$3.99
193
2653235 H.F.H. BOLT M5X10, 2030S BY MAKITA
$3.99
194
9112030 P.H. SCREW M5X8, 4101RH BY MAKITA
$3.99
195
8166656 SCALE PLATE, 2030S BY MAKITA
$3.99
196
2518956 SCREW M6X19, 2030S BY MAKITA
$10.68
197
1507045 FIX BED COMPLETE, 2030S BY MAKITA
$239.50
198
3226499 ROD 1763, 2030S BY MAKITA
$10.58
199
4214827 COUPLING CUSHION, 2030S BY MAKITA
$5.99
200
2658544 H.S.H. BOLT M6X12, 2030S BY MAKITA
$10.81
201
3165126 COUPLING, 2030S BY MAKITA
$16.56
202
9132175 SET SCREW M5X12, 2030S BY MAKITA
$3.99
207
9132175 SET SCREW M5X12, 2030S BY MAKITA
$3.99
203
2542218 KEY 4, 2030S BY MAKITA
$3.99
204
2677120 CUP WASHER 8, 2030S BY MAKITA
$3.99
205
3226481 ROD 1790, 2030S BY MAKITA
$12.08
206
9412010 F. WASHER 8, 5007NK BY MAKITA
$3.99
208
2330829 COMPRESSION SPRING 9, 2030S BY MAKITA
$10.77
209
9224728 H.S.H. BOLT M8X50, 2030S BY MAKITA
$5.99
211
3440760 CHIP GUIDE, 2030S BY MAKITA
$12.08
213
1611337 SUB DRUM, 2030S BY MAKITA
$123.00
214
2512120 SCREW 5X13, 2030S BY MAKITA
$3.99
215
2110879 BALL BEARING 6200DDW, 4114 BY MAKITA
$14.45
217
3443409 SET PLATE 155, 2030S BY MAKITA
$10.25
218
3450276 DRUM PLATE SET, 2030S BY MAKITA
$15.07
220
2111299 BALL BEARING 6201DDW, GA4030 BY MAKITA
$14.23
221
2538376 F. WASHER 14, 2030S BY MAKITA
$3.99
223
9111131 P.H. SCREW M4X10, LS1016L BY MAKITA
$3.99
163
Call for Price call for price call for price
216
Call for Price call for price call for price
