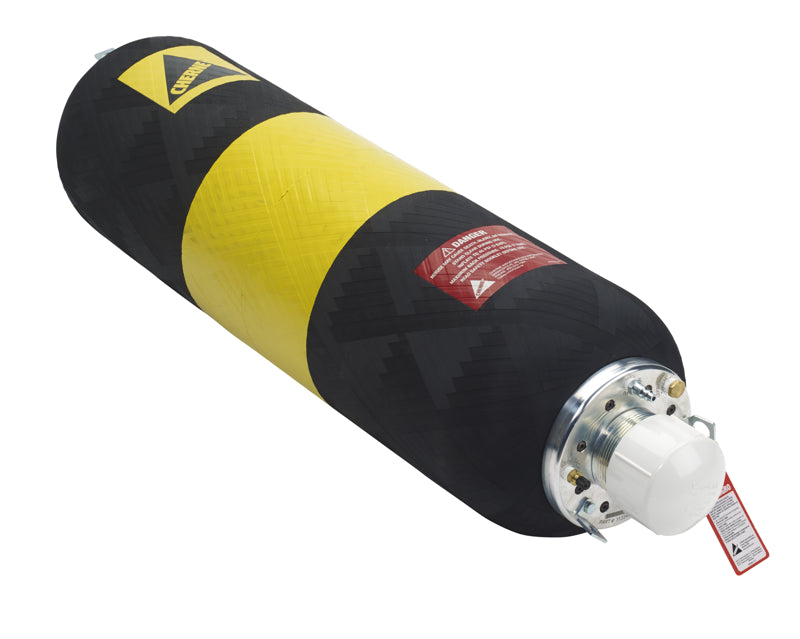

214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne

214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne

$3,002.17
$3,002.17
Sale Sold out
  • 214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne
1 1
Cherne/Oatey

214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne

214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne

Danse #: 214188
Mfr #: 214188
$3,002.17
$3,002.17
Sale Sold out
View full details

Description

214188 I-Series Muni-Ball Plug 12-18 in w/ 3 in Bypass By Cherne

Cherne I-Series Muni Ball Plugs are designed to meet the needs of U.S. and international markets in terms of size and expansion range. Cherne Industries is a global leader in pipe plugs and testing.

Features:

  • Superior expansion range
  • Full body cording for added durability
  • Small deflated diameters
  • All plugs through 24-60 in. easily fit through a 24 in. manhole frame
  • 48-72 in. & 54-96 in. plugs fit through a 36 in. opening
  • Aluminum end plates minimize rust
  • 3/4 in. eyebolts on 15-32 in. and larger plugs
  • Pressure relief valve on 15-32 in. and larger protects plugs from over inflation
  • Flexible bypass hoses

Specifications:

Maximum Back Pressure: 15 psi (1 bar)
Inflation Pressure: 45 psi (3 bar)
Deflated Length: 25 in. (635 mm)
Deflated Diameter: 10.5 in.
Inflation Thread: 1/4 in.
Nominal Size: 12 in. - 18 in. (300 - 450 mm)
Chain Eye Bolts: 0.25 in. Eyenut
Usage Range: 10.75 in. - 18.25 in. (273 - 464 mm)
Brand: Cherne
Product Type: I-Series Muni-Ball
Color: Black
