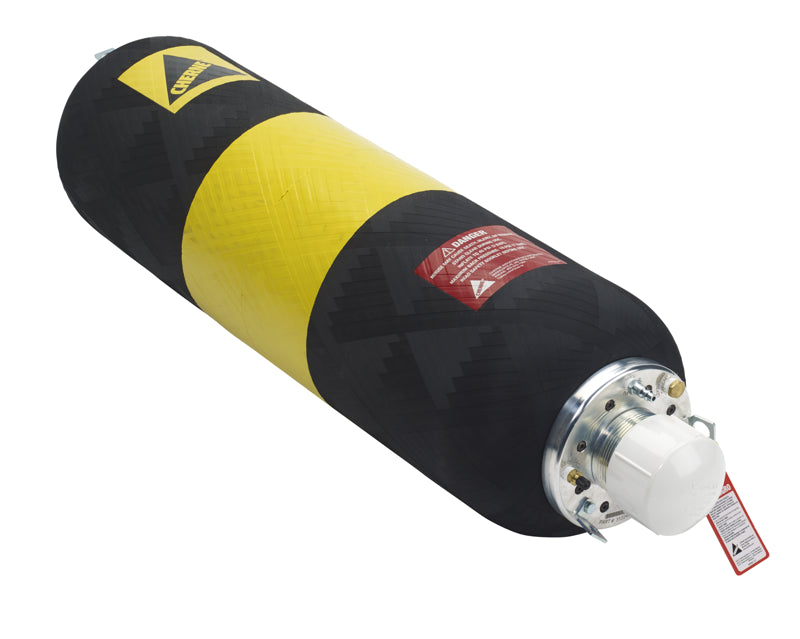

311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne

311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne

$1,264.72
$1,264.72
Sale Sold out
  • 311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne
1 1
Cherne/Oatey

311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne

311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne

Danse #: 311088
Mfr #: 311088
$1,264.72
$1,264.72
Sale Sold out
View full details

Description

311088 I-Series Muni-Ball Plug 4-8 in w/ 3/4 in Bypass By Cherne

Cherne I-Series Muni Ball Plugs are designed to meet the needs of U.S. and international markets in terms of size and expansion range. Cherne Industries is a global leader in pipe plugs and testing.

Features:

  • Superior expansion range
  • Full body cording for added durability
  • Small deflated diameters
  • All plugs through 24-60 in. easily fit through a 24 in. manhole frame
  • 48-72 in. & 54-96 in. plugs fit through a 36 in. opening
  • Aluminum end plates minimize rust
  • 3/4 in. eyebolts on 15-32 in. and larger plugs
  • Pressure relief valve on 15-32 in. and larger protects plugs from over inflation
  • Flexible bypass hoses

Specifications:

Maximum Back Pressure: 15 psi (1 bar)
Inflation Pressure: 45 psi (3 bar)
Deflated Length: 23 in. (585 mm)
Deflated Diameter: 3.41 in.
Inflation Thread: 1/8 in.
Nominal Size: 4 in. - 6 in. (100 - 150 mm)
Chain Eye Bolts: 0.8 in. Bracket Tag
Usage Range: 3.95 in. - 8.25 in. (92 - 210 mm)
Brand: Cherne
Product Type: I-Series Muni-Ball
Color: Black
