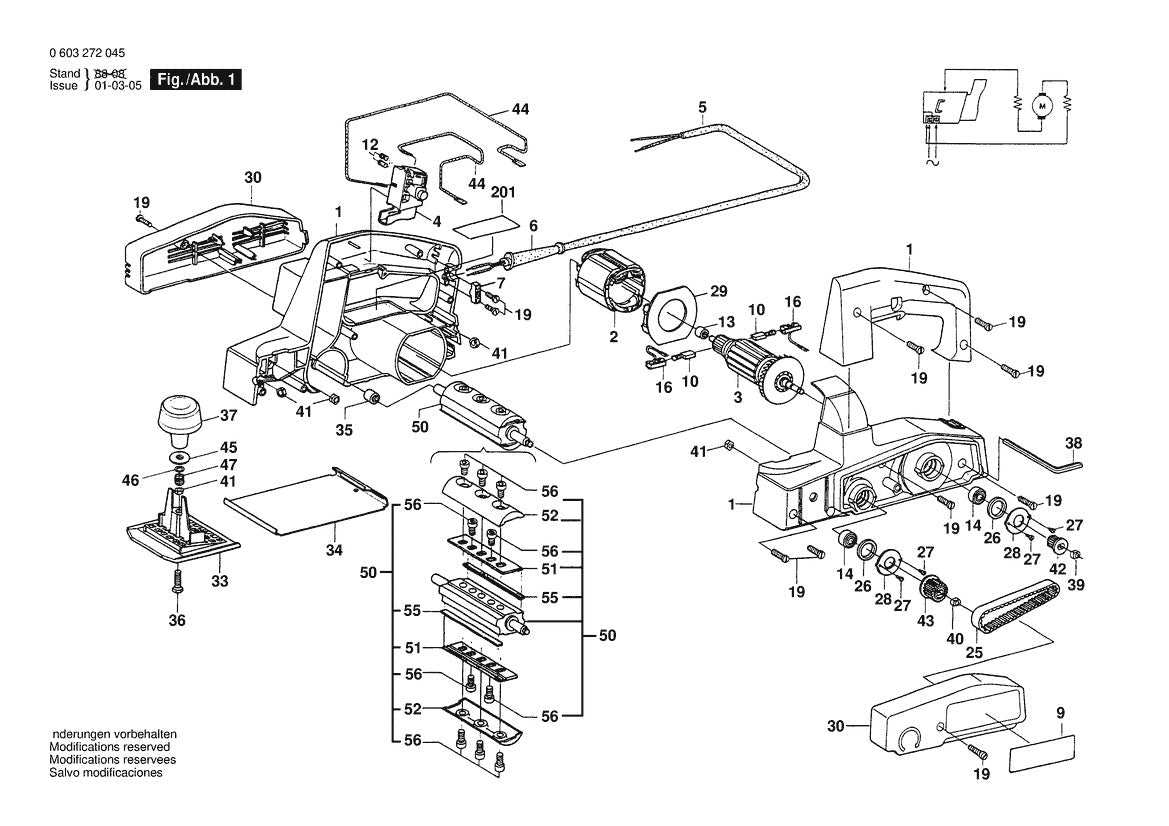

3272 (0603272039) Bosch 3-1 Bosch Planer Parts Diagram

3272 (0603272039) Bosch 3-1 Bosch Planer Parts Diagram

  • 3272 (0603272039) Bosch 3-1 Bosch Planer Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
1606610116 Fan | Genuine OEM Bosch Part
$3.91
6
1606610116 Fan | Genuine OEM Bosch Part
$3.91
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
5
1900452012 End Splice | Genuine OEM Bosch Part
$4.89
2
1900452012 End Splice | Genuine OEM Bosch Part
$4.89
6
2600703008 Grommet | Genuine OEM Bosch Part
$3.91
13
2600910005 Needle Bushing by Bosch
$3.91
16
2604449026 Brush Holder by Bosch
$3.91
18
2603410001 Cheese Head Screw by Bosch
$4.89
25
2604736001 Toothed Belt by Bosch
$10.84
26
1600206025 Intermediate Ring by Bosch
$3.91
27
2610914920 Sheet Metal Screw by Bosch
$3.91
30
2605500163 Drive Belt Cover by Bosch
$12.34
31
1608000091 Base Plate | Genuine OEM Bosch Part
$5.38
34
1610910057 Needle Bushing by Bosch
$4.89
35
2911061209 Hex Bolt | Genuine OEM Bosch Part
$3.91
36
2603342006 Round Nut | Genuine OEM Bosch Part
$3.91
39
2603342010 Round Nut | Genuine OEM Bosch Part
$3.91
40
2606625001 Toothed Belt Wheel by Bosch
$4.89
42
2606625002 Toothed Belt Wheel by Bosch
$6.11
43
2604448062 Connecting Cable by Bosch
$3.91
44
2916011014 Plain Washer by Bosch
$3.91
46
2604611010 Compression Spring by Bosch
$3.91
47
PA1202 Micrograin Blades by Bosch
$32.20
755
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details
