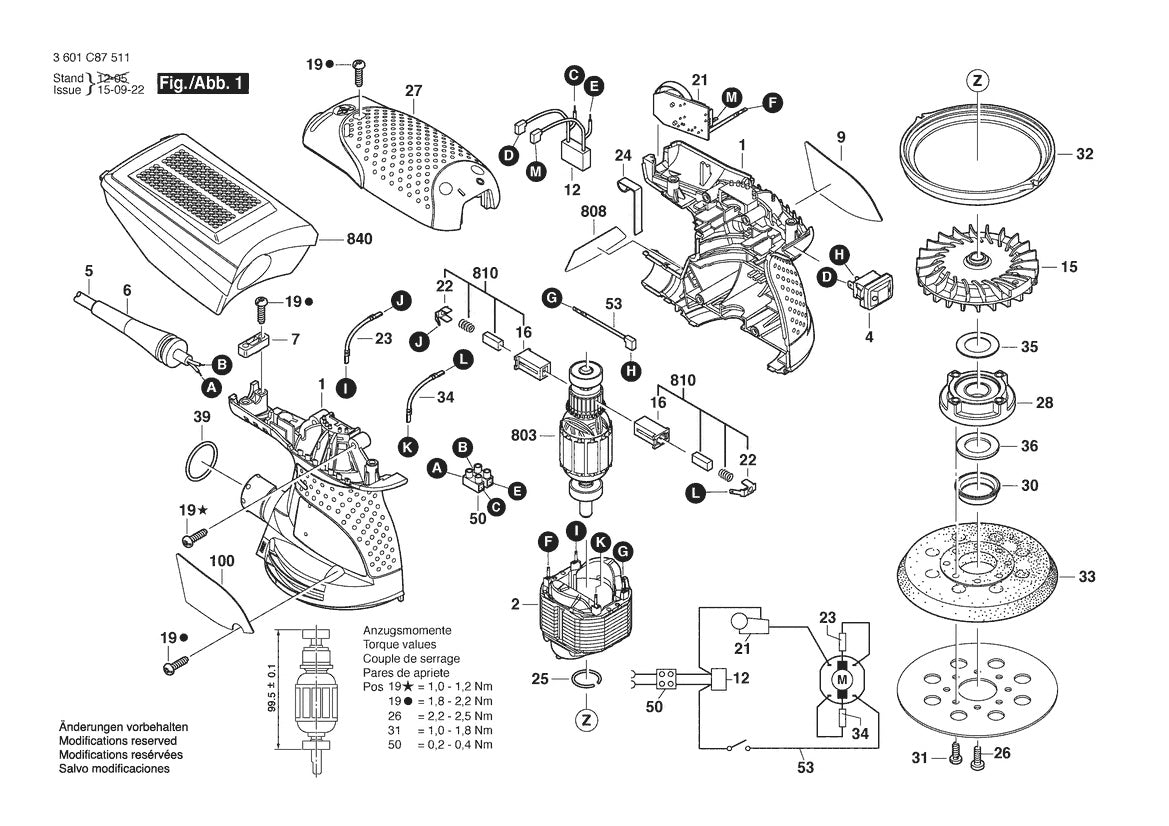

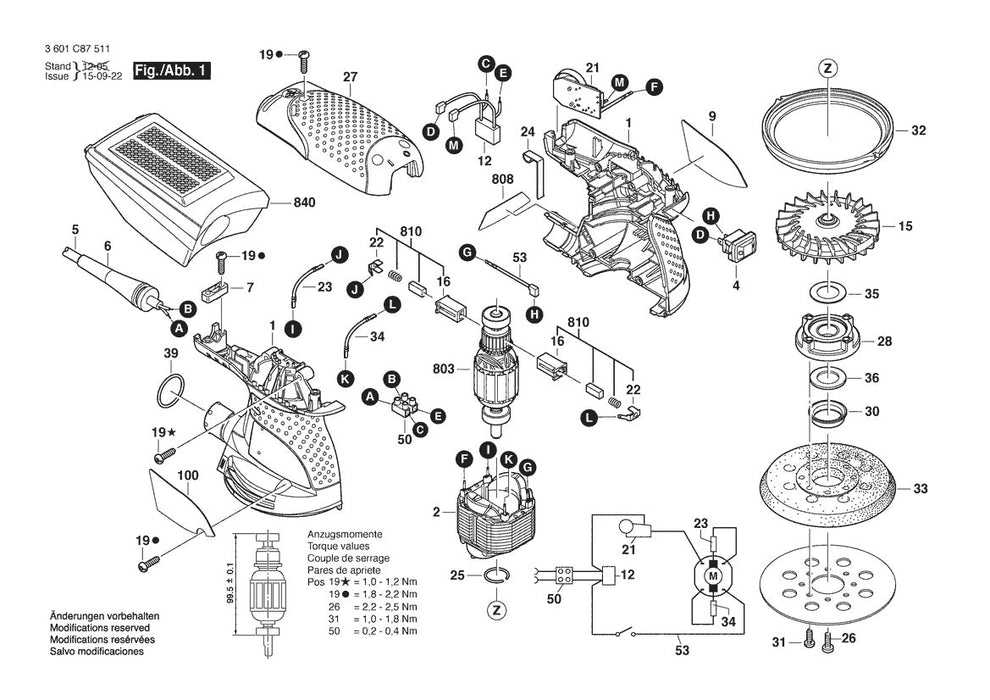

3601C87511 Bosch Sander Parts Diagram

3601C87511 Bosch Sander Parts Diagram

  • 3601C87511 Bosch Sander Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2609100553 Housing | Genuine OEM Bosch Part
$21.32
2
2609120195 Field / 120v by Bosch
$24.90
4
1607200190 Switch | Genuine OEM Bosch Part
$10.84
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
9
2609131386 Manufacturers Nameplate by Bosch
$3.91
12
2609120282 Suppression Capacitor by Bosch
$6.11
15
2609110637 Fan | Genuine OEM Bosch Part
$43.33
21
2609120268 Speed Control by Bosch
$34.71
22
2610329896 Terminal | Genuine OEM Bosch Part
$3.91
24
2601329043 Contact Strap by Bosch
$3.91
25
2916540005 Retaining Ring / Din 7993-a8 by Bosch
$3.91
26
2610918116 Screw And Washer Assembly by Bosch
$3.91
27
2609100538 Housing Cover by Bosch
$12.57
28
2609100862 Bearing Flange by Bosch
$12.46
30
2609100633 Cover | Genuine OEM Bosch Part
$3.91
32
2609170071 Friction Ring by Bosch
$4.89
33
1600A01CU1 Hook And Loop Rubber Backing P by Bosch
$12.46
35
2609110724 Washer | Genuine OEM Bosch Part
$3.91
36
2609170084 Felt Washer | Genuine OEM Bosch Part
$4.89
39
1610210045 O-ring | Genuine OEM Bosch Part
$3.91
50
2610910009 Connection Block by Bosch
$3.91
53
2609120284 Connecting Cable by Bosch
$3.91
100
2609131561 Warning Plate by Bosch
$3.91
803
2609199166 Armature / 120v by Bosch
$83.73
808
2609131736 Type Identifying Mark by Bosch
$3.91
810
2609120199 Carbon-brush Set by Bosch
$10.84
840
2609199179 Dust Container by Bosch
$25.15
View full details
