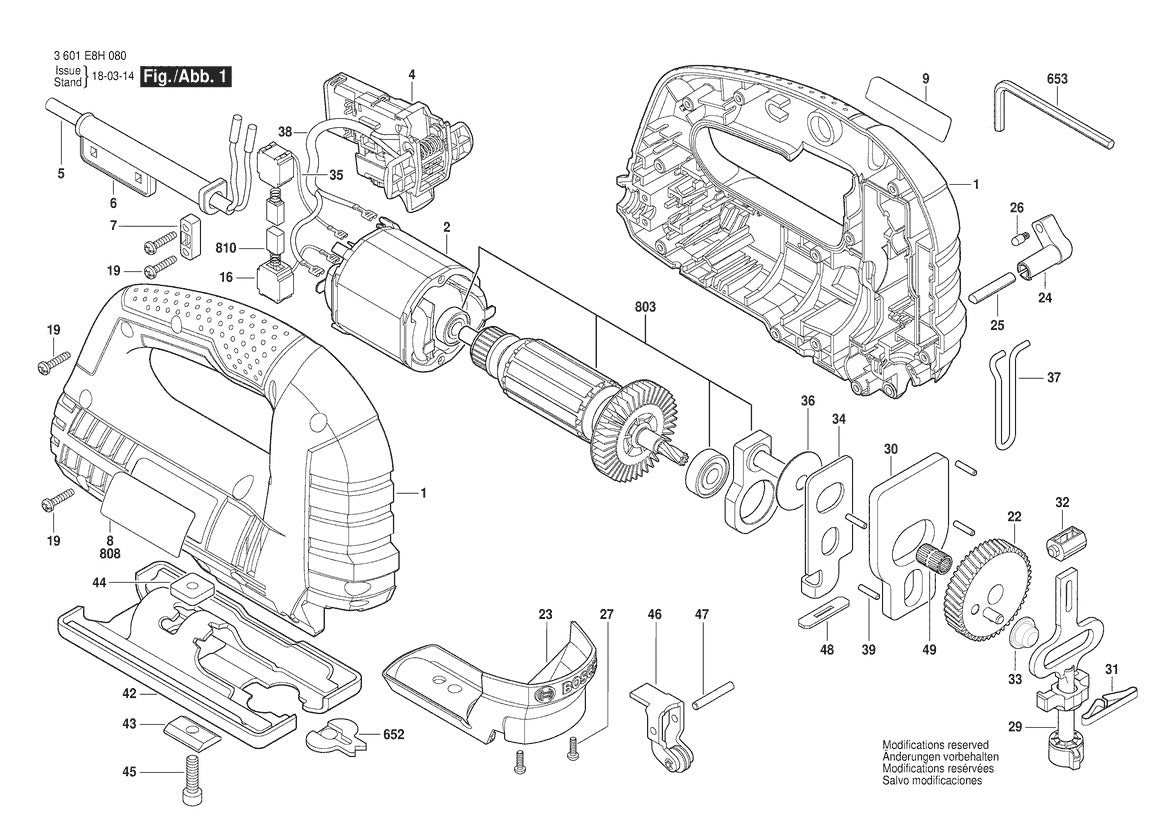

3601E8H0E0 Bosch Jig Saw Parts Diagram

3601E8H0E0 Bosch Jig Saw Parts Diagram

  • 3601E8H0E0 Bosch Jig Saw Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
653
2610364015 Allen Wrench by Bosch
$4.89
27
1619P00220 Torx Oval-head Screw by Bosch
$3.91
43
2601030019 Clamping Piece by Bosch
$5.09
45
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
49
2600913040 Needle-roller Assembly by Bosch
$6.11
33
2600914022 Needle Sleeve by Bosch
$7.14
44
1619P07163 Fastening Plate by Bosch
$3.91
46
1619P07129 Roller Lever by Bosch
$8.18
47
1619P07159 Bearing Bolt by Bosch
$3.91
652
2601016065 Splintering Protector by Bosch
$4.89
29
2600780173 Lifting Rod | Genuine OEM Bosch Part
$43.77
1
1619X04876 Housing Set | Genuine OEM Bosch Part
$19.48
16
1619X02735 Brush Holder by Bosch
$3.91
22
1619X04872 Gear Unit | Genuine OEM Bosch Part
$8.10
24
1619X04885 Lever | Genuine OEM Bosch Part
$3.91
25
1619X03695 Shaft | Genuine OEM Bosch Part
$3.91
26
1619X03196 Spring | Genuine OEM Bosch Part
$3.91
30
1619X04546 Counter Weight by Bosch
$3.91
32
1619X00399 Bearing Block by Bosch
$3.91
34
1619X04542 Slide | Genuine OEM Bosch Part
$3.91
35
1619X03396 Cable Clip | Genuine OEM Bosch Part
$3.91
36
1619X00434 Wear Plate | Genuine OEM Bosch Part
$3.91
37
1619X04886 Protective Guard by Bosch
$3.91
38
1619X03111 Cable Set | Genuine OEM Bosch Part
$3.91
39
1619X04547 Straight Pin by Bosch
$3.91
48
1619X04574 Seal | Genuine OEM Bosch Part
$3.91
31
160461201E Coiled Spring by Bosch
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
