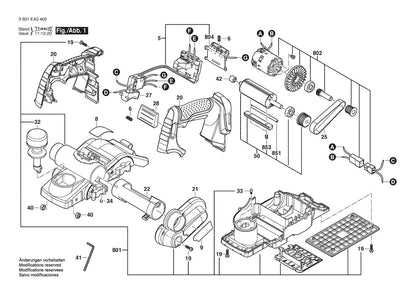

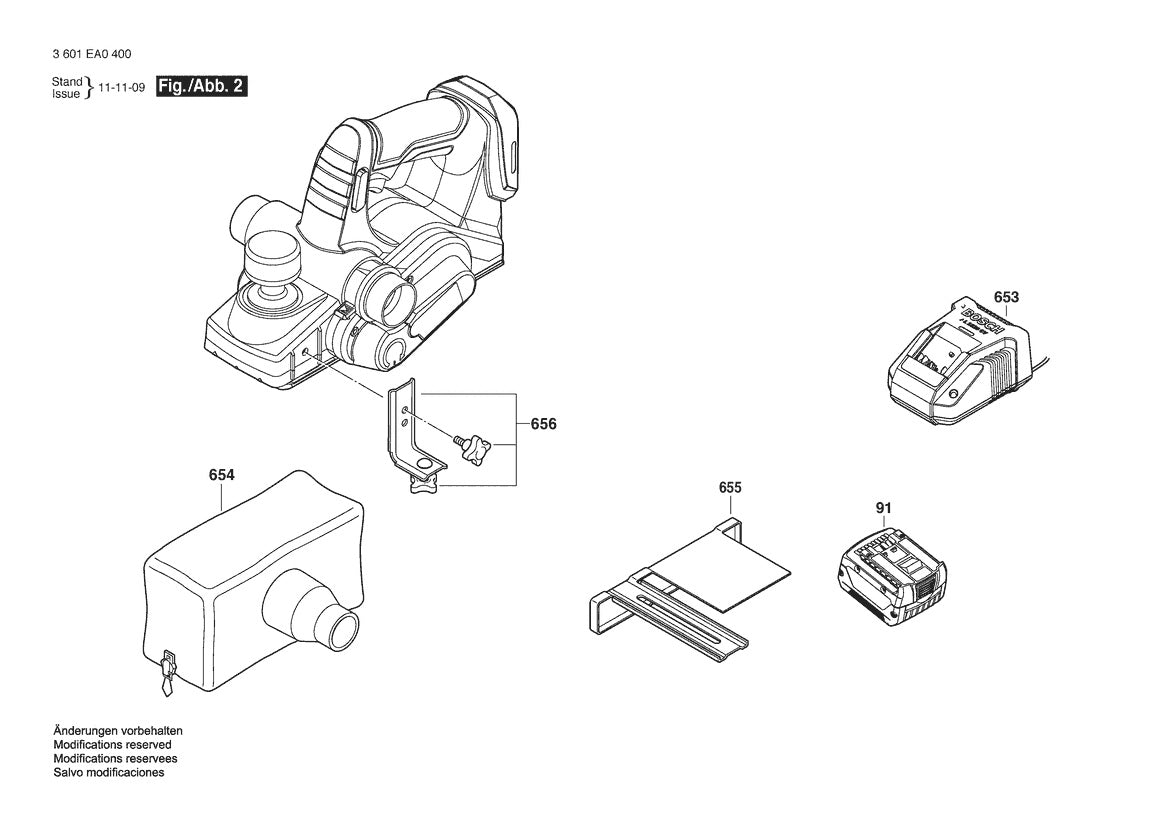

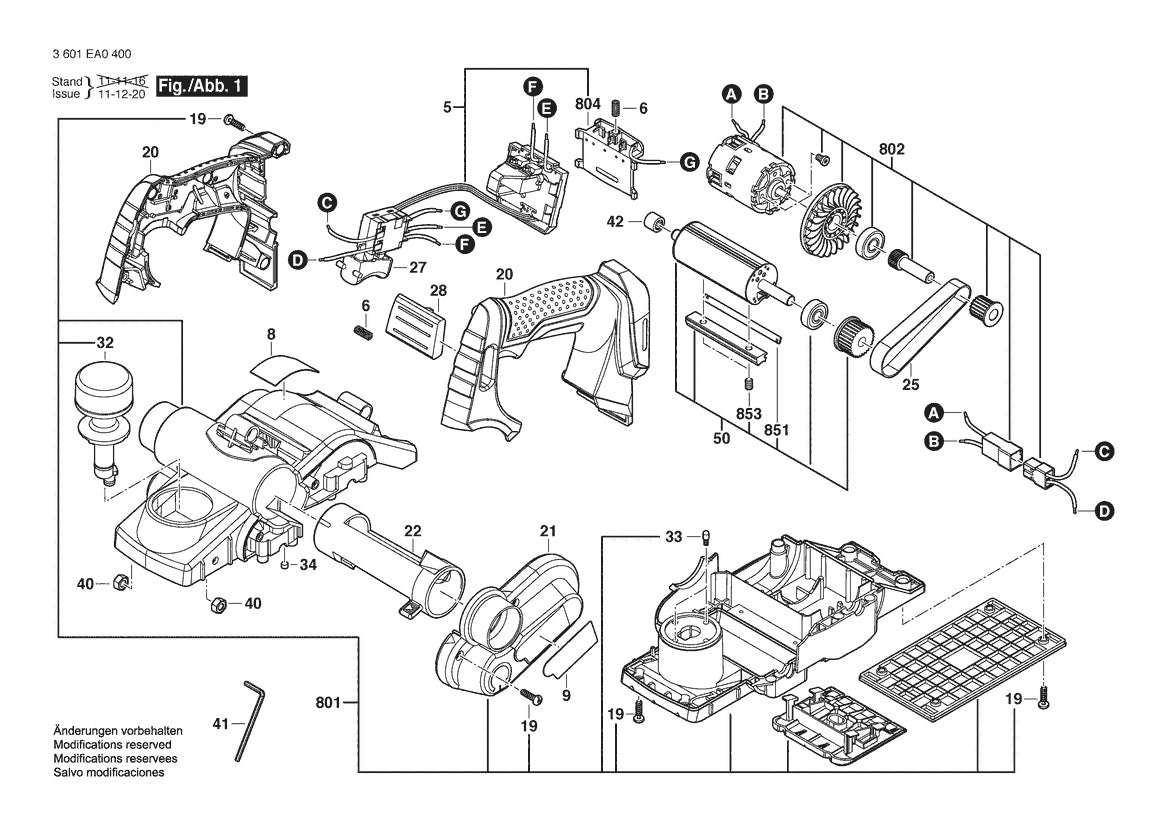

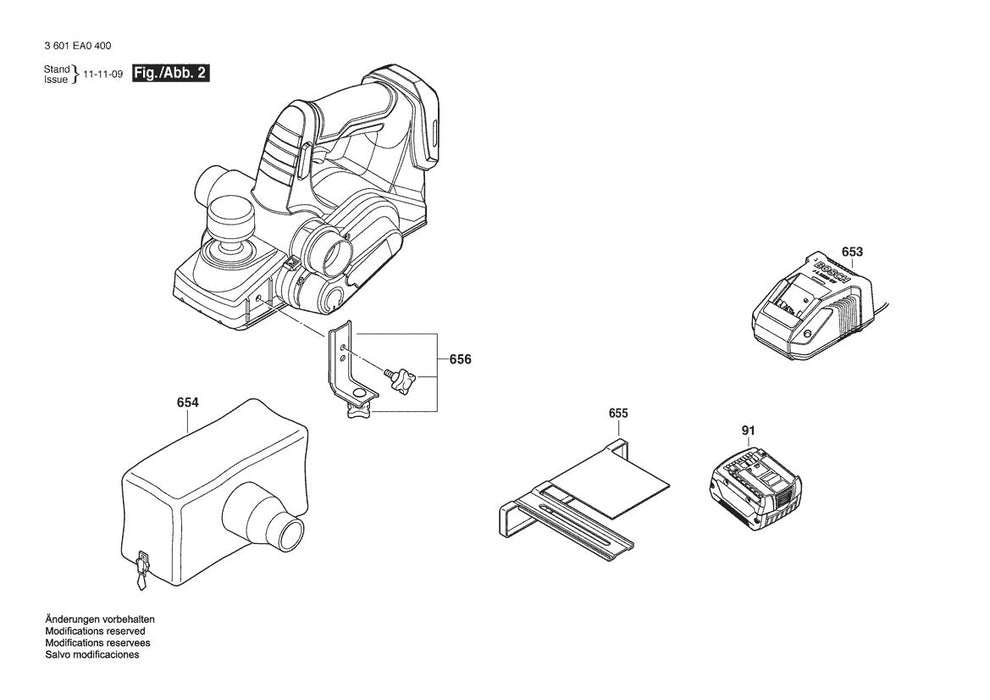

3601EA0400 Bosch Planer Parts Diagram

3601EA0400 Bosch Planer Parts Diagram

  • 3601EA0400 Bosch Planer Parts Diagram
  • 3601EA0400 Bosch Planer Parts Diagram
1 2
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
42
1610910057 Needle Bushing by Bosch
$4.89
33
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
41
1907950003 Hexagon-socket Key by Bosch
$3.91
25
2604736001 Toothed Belt by Bosch
$10.84
50
2608584003 Planer Head | Genuine OEM Bosch Part
$55.00
22
2600409026 Deflector Pipe by Bosch
$8.27
853
2603400016 Adjusting Screw by Bosch
$3.91
851
PA1202 Micrograin Blades by Bosch
$32.20
27
2610942930 Trigger | Genuine OEM Bosch Part
$3.91
6
2604690055 Spring | Genuine OEM Bosch Part
$3.91
28
2610955167 Locking Slide by Bosch
$3.91
34
2603100056 Rubber Buffer by Bosch
$3.91
804
1609280474 Contact | Genuine OEM Bosch Part
$17.61
32
2602026180 Rotary Handle by Bosch
$19.48
21
2605500209 Cover | Genuine OEM Bosch Part
$10.95
654
2605411035 Dust Bag | Genuine OEM Bosch Part
$71.31
656
2607001047 Parts Set | Genuine OEM Bosch Part
$5.28
655
2608005015 Stop Bracket by Bosch
$8.10
653
2607225321 Bc630eu 220v 30min Li-ion Char by Bosch
$140.42
