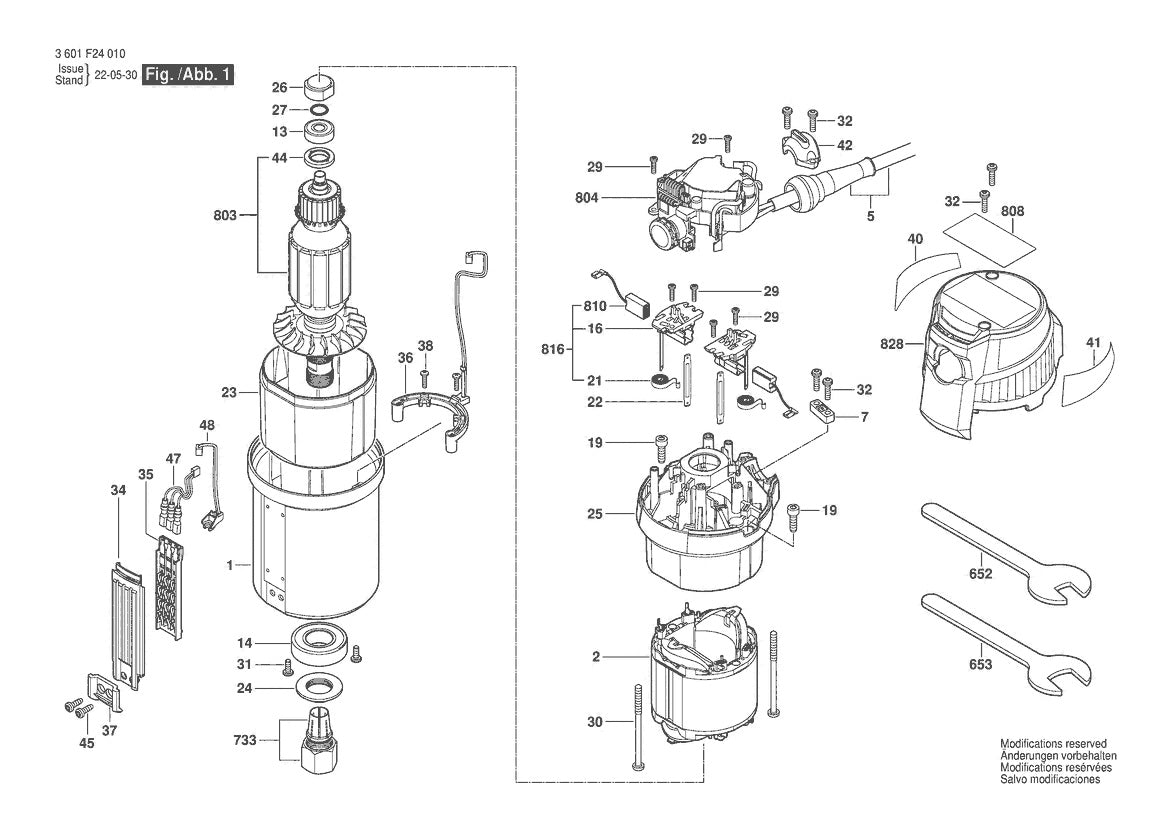

3601F24010 Bosch Router Parts Diagram

3601F24010 Bosch Router Parts Diagram

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2610011547 Motor Housing by Bosch
$25.39
2
1619P05316 Field | Genuine OEM Bosch Part
$49.20
4
2610018986 Electronic Assembly by Bosch
$60.21
5
2610001425 Cord | Genuine OEM Bosch Part
$24.28
13
3600905513 Ball Bearing by Bosch
$4.89
14
1600900088 Ball Bearing by Bosch
$7.08
16
2610913034 Brush Holder by Bosch
$4.89
19
2910141158 Hex Socket Head Socket Screw by Bosch
$3.91
21
3604652500 Brush Spring by Bosch
$3.91
22
1604477005 Blade Terminal by Bosch
$3.91
23
2610955195 Baffle | Genuine OEM Bosch Part
$4.89
24
2610993582 Nut | Genuine OEM Bosch Part
$8.18
25
2610957779 Housing | Genuine OEM Bosch Part
$6.11
26
2610991375 Bearing Sleeve by Bosch
$4.89
27
1900210115 O-ring | Genuine OEM Bosch Part
$4.89
29
2910611006 Sheet Metal Screw by Bosch
$3.91
30
2610991306 Screw | Genuine OEM Bosch Part
$3.91
31
2910641122 Oval-head Screw by Bosch
$4.89
32
2610910566 Sheet Metal Screw by Bosch
$3.91
34
2610957736 Cover | Genuine OEM Bosch Part
$3.91
35
2610957739 Connector | Genuine OEM Bosch Part
$3.91
36
2610001624 Light-emitting-diode by Bosch
$6.11
37
2610957738 Clamp | Genuine OEM Bosch Part
$3.91
38
2910641054 Screw | Genuine OEM Bosch Part
$3.91
40
2610003475 Label | Genuine OEM Bosch Part
$3.91
41
2610003476 Label | Genuine OEM Bosch Part
$3.91
42
2610000607 Clamp | Genuine OEM Bosch Part
$3.91
44
2610957778 Locating Ring by Bosch
$3.91
45
2610003090 Screw | Genuine OEM Bosch Part
$3.91
47
2610003185 Cable Set | Genuine OEM Bosch Part
$4.89
48
2610001625 Sensor | Genuine OEM Bosch Part
$6.23
652
2610992417 Wrench | Genuine OEM Bosch Part
$15.93
653
2610991388 Wrench | Genuine OEM Bosch Part
$9.41
733
2610906284 Collet And Nut (1/2-inch) by Bosch
$38.04
733
2610906287 Bosch Collet And Nut (3/8) by Bosch
$38.04
803
2610013759 Armature | Genuine OEM Bosch Part
$85.41
810
2610007957 Carbon Brush Set by Bosch
$9.41
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 3601F24010 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
