3601F26161 Bosch Router Parts Diagram

3601F26161 Bosch Router Parts Diagram

  • 3601F26161 Bosch Router Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
19
2603490025 Torx Oval-head Screw by Bosch
$3.91
59
2916650006 C-clip | Genuine OEM Bosch Part
$4.89
95
2603435086 Sheet Metal Screw by Bosch
$3.91
84
1604477005 Blade Terminal by Bosch
$3.91
854
2610991370 Locating Ring by Bosch
$10.84
6
1600703035 Grommet | Genuine OEM Bosch Part
$5.09
890
2607001305 Fixing-parts Set by Bosch
$4.89
54
1600206036 Rubber Ring | Genuine OEM Bosch Part
$3.91
74
2603490017 Screw | Genuine OEM Bosch Part
$3.91
13
2600905086 Groove Ball Bearing 7x19x6 by Bosch
$6.11
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

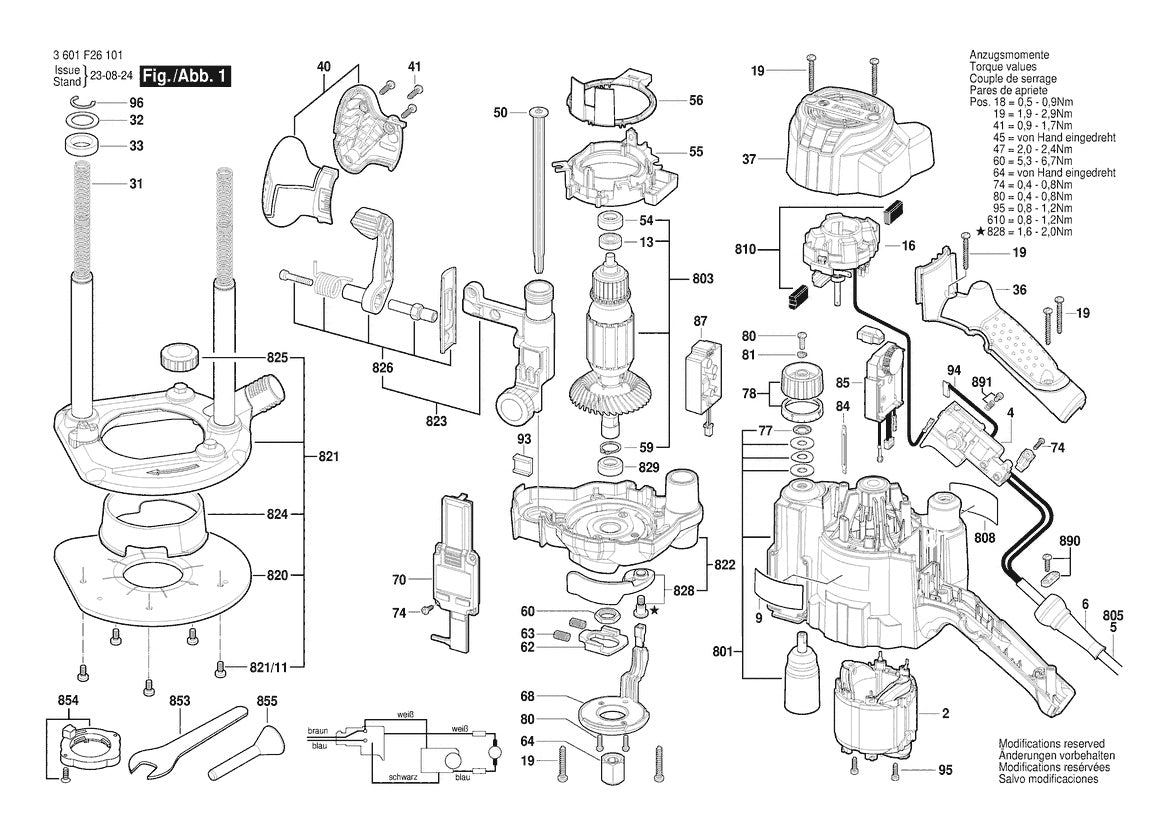

View the Bosch 3601F26161 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
