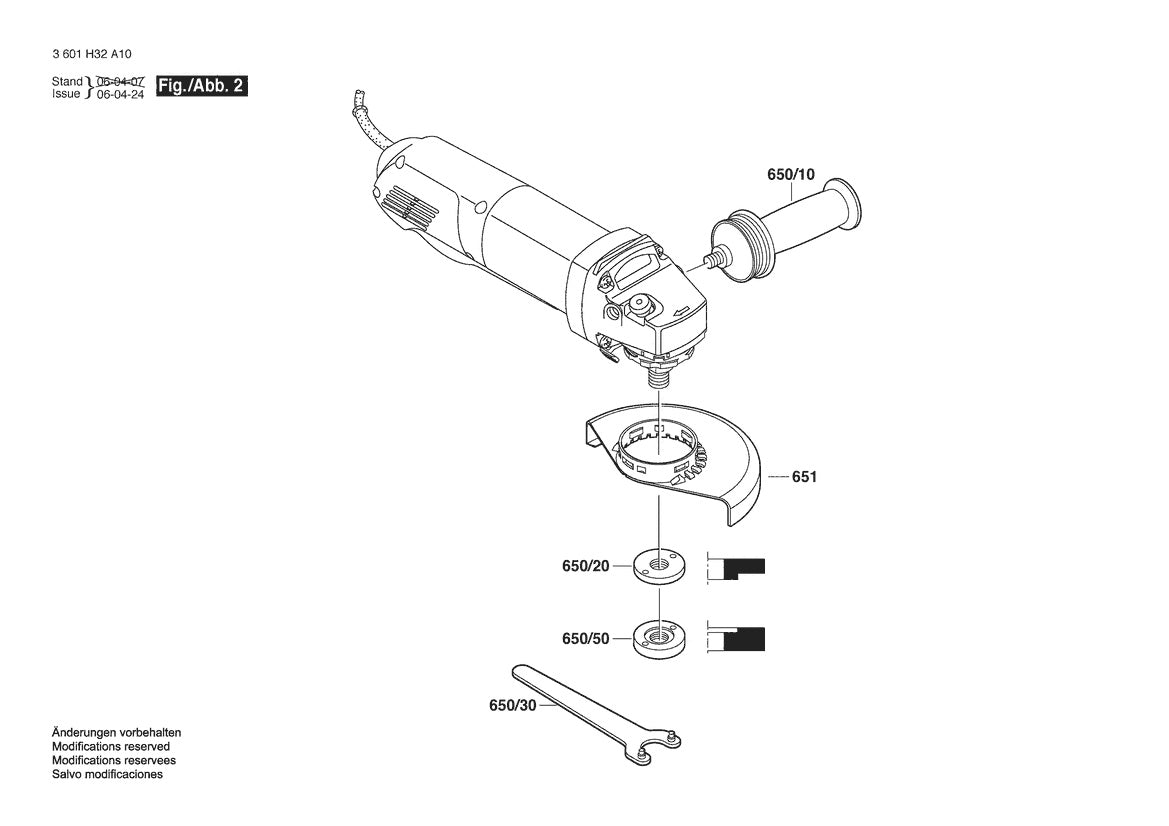

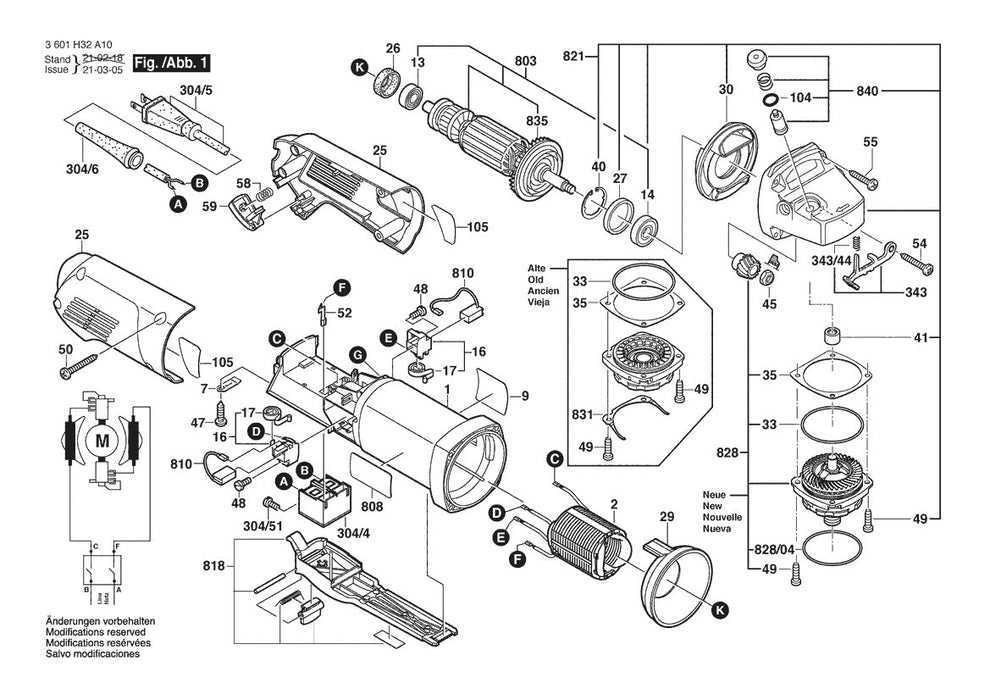

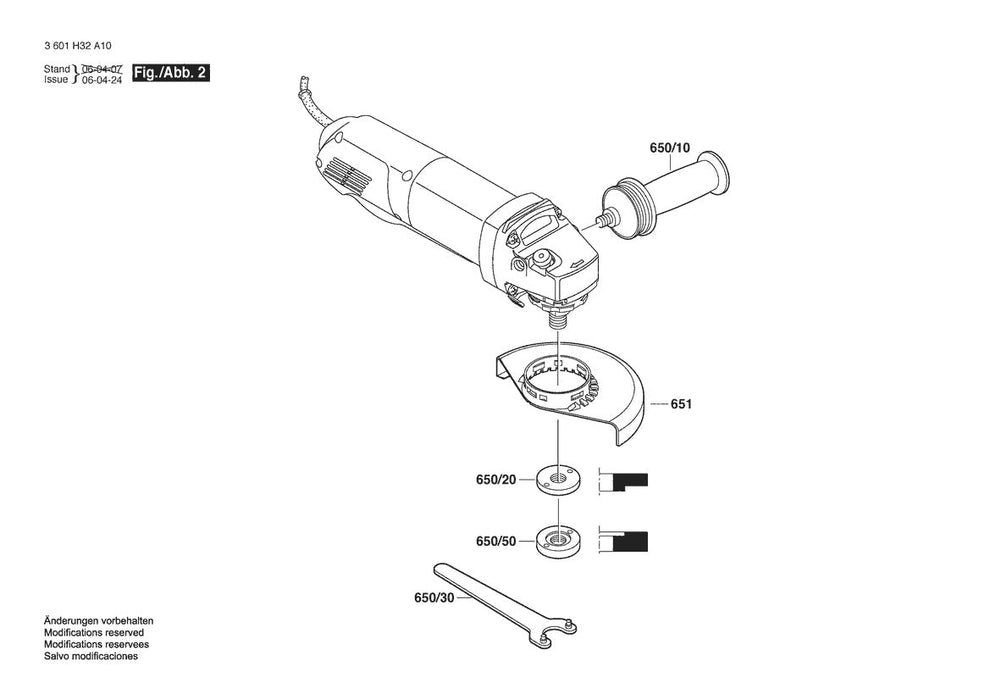

3601H32A10 Bosch Grinder Parts Diagram

3601H32A10 Bosch Grinder Parts Diagram

Skip to product information
1 of 2
Ref. Details
2
1604220308 Field | Genuine OEM Bosch Part
$37.75
7
1601302017 Fastening Clamp by Bosch
$3.91
9
1601118C43 Manufacturers Nameplate by Bosch
$3.91
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
13
1600905032 Ball Bearing by Bosch
$6.16
14
1601323025 Brush Holder by Bosch
$3.91
16
1600508031 Housing Cover by Bosch
$12.34
25
1600206036 Rubber Ring | Genuine OEM Bosch Part
$3.91
26
1600206025 Intermediate Ring by Bosch
$3.91
27
1600591038 Air-deflector Ring by Bosch
$3.91
29
1600591014 Air-deflector Ring by Bosch
$3.91
30
1601290013 Spring Element by Bosch
$3.91
31
1607000D6B Grinding Spindle by Bosch
$10.84
32
3600210124 O-ring | Genuine OEM Bosch Part
$3.91
33
1600136013 Shim | Genuine OEM Bosch Part
$3.91
35
1600136014 Shim 0,2 Mm Thick by Bosch
$3.91
35
1600136015 Shim | Genuine OEM Bosch Part
$3.91
35
1600290016 Radial-lip-type Oil Seal by Bosch
$3.91
37
1607000D4Y Crown Gear | Genuine OEM Bosch Part
$17.80
38
1600119011 C-clip | Genuine OEM Bosch Part
$3.91
39
1600910018 Needle Bushing by Bosch
$3.91
40
1603300016 Hexagon Nut | Genuine OEM Bosch Part
$3.91
41
2912401018 Sheet Metal Screw by Bosch
$3.91
45
2912401005 Sheet Metal Screw by Bosch
$3.91
47
1603435026 Threaded-furrow Screw by Bosch
$3.91
48
1603435051 Sheet Metal Screw by Bosch
$3.91
49
1604478015 Connection Part by Bosch
$3.91
50
2603490025 Torx Oval-head Screw by Bosch
$3.91
52
1603415005 Screw | Genuine OEM Bosch Part
$3.91
54
1604617012 Compression Spring by Bosch
$3.91
55
1602026072 Switch Button by Bosch
$3.91
58
1619P09390 Cover Disc | Genuine OEM Bosch Part
$3.91
59
1600210044 O-ring | Genuine OEM Bosch Part
$3.91
80
1601071000 Insulating Plate by Bosch
$3.91
104
1607200155 On-off Switch by Bosch
$17.80
105
3604460555 Cord | Genuine OEM Bosch Part
$10.84
304
1603415004 Lens Head Screw by Bosch
$3.91
4
1603415004 Lens Head Screw by Bosch
$3.91
304
1600703031 Grommet | Genuine OEM Bosch Part
$4.89
5
1600703031 Grommet | Genuine OEM Bosch Part
$4.89
304
1607000742 Lever | Genuine OEM Bosch Part
$8.27
51
1607000742 Lever | Genuine OEM Bosch Part
$8.27
304
1604611042 Spring | Genuine OEM Bosch Part
$3.91
6
1604611042 Spring | Genuine OEM Bosch Part
$3.91
343
1604010661 Armature | Genuine OEM Bosch Part
$99.23
343
1607014176 Carbon Brush Set by Bosch
$4.89
44
1607014176 Carbon Brush Set by Bosch
$4.89
803
1607000729 Switch-pawl | Genuine OEM Bosch Part
$10.84
810
1607000D6C Bearing Flange by Bosch
$14.18
818
1606610129 Fan | Genuine OEM Bosch Part
$3.91
828
1607000253 Push Button | Genuine OEM Bosch Part
$3.91
835
1602025031 Auxiliary Handle by Bosch
$21.76
840
3603340501 Clamping Flange by Bosch
$6.16
650
1607950052 Spanner Wrench by Bosch
$3.91
10
1607950052 Spanner Wrench by Bosch
$3.91
650
3603340503 Round Nut | Genuine OEM Bosch Part
$12.46
20
3603340503 Round Nut | Genuine OEM Bosch Part
$12.46
650
1600A00XL5 Protective Cover by Bosch
$19.68
30
1600A00XL5 Protective Cover by Bosch
$19.68
650
1605108221 Motor Housing by Bosch
$14.04
50
1605108221 Motor Housing by Bosch
$14.04
