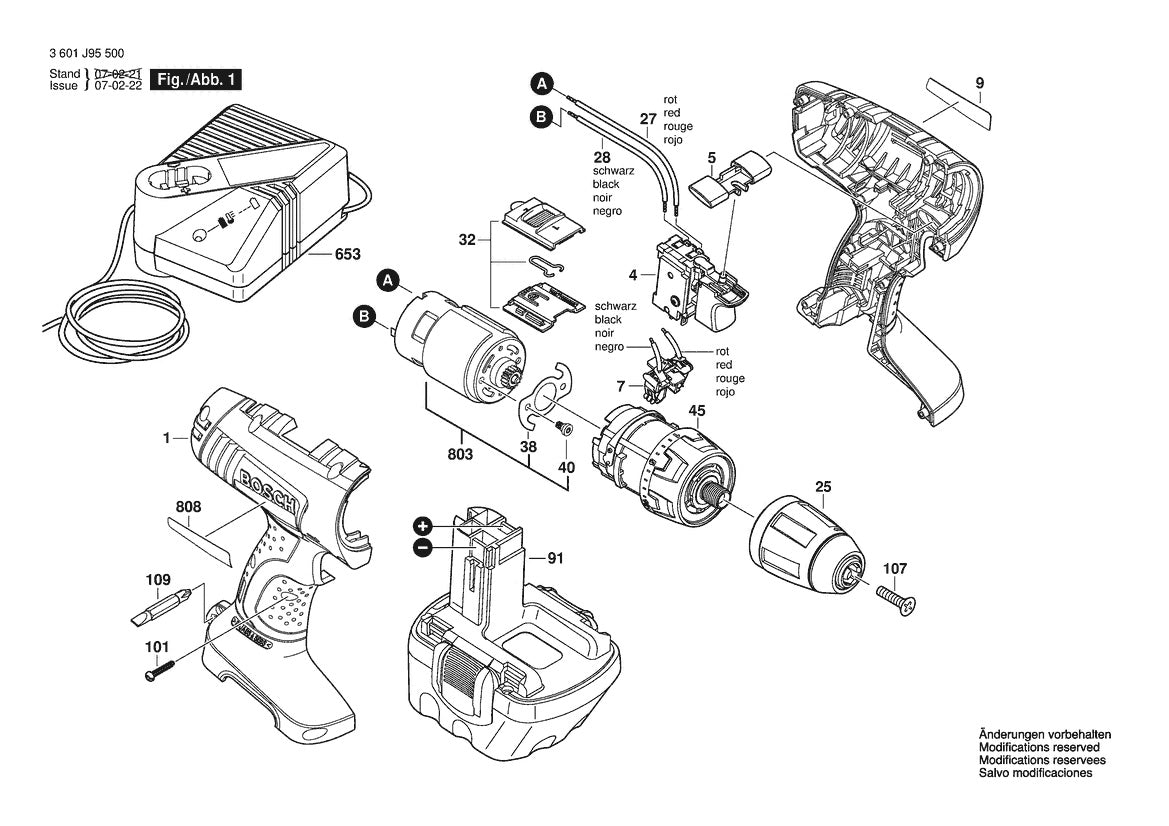

3601J95500 Bosch Cordless Drill Parts Diagram

3601J95500 Bosch Cordless Drill Parts Diagram

  • 3601J95500 Bosch Cordless Drill Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
101
2609110201 Torx Flat-head Screw by Bosch
$3.91
1
2609100501 Housing | Genuine OEM Bosch Part
$27.69
4
2607202014 On-off Switch by Bosch
$43.33
5
2609100504 Adjusting Lever by Bosch
$3.91
7
2609199125 Contact Retainer by Bosch
$3.91
27
2609120264 Connecting Cable by Bosch
$3.91
28
2609120263 Connecting Cable by Bosch
$3.91
32
2609199119 Regulator | Genuine OEM Bosch Part
$3.91
38
2609110633 Washer | Genuine OEM Bosch Part
$3.91
40
2609110634 Screw | Genuine OEM Bosch Part
$3.91
45
2609199343 Epicycloidal Gear Train by Bosch
$53.92
107
2609110635 Pan Head Screw by Bosch
$4.89
803
2609199126 Motor 12v | Genuine OEM Bosch Part
$44.19
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 3601J95500 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
